Oil Cooler Pipes/Hoses: Removal

CAUTION: Place a drip pan under the hoses to catch the fluid that will run out of the lines.
  1. Disconnect the negative battery cable.
  2. Raise and suitably support the vehicle.
  3. Remove the oil cooler outlet pipe bolt from the right lower side of the radiator.
  4. Remove the oil cooler outlet pipe bracket bolt. See Fig 1 .
  5. Remove the oil cooler outlet pipe bolt from the transaxle side.
  6. Remove the oil cooler outlet pipe assembly. See Fig 2 .
  7. Remove the oil cooler inlet pipe bolt from the left lower side of the radiator. See Fig 3 .
  8. Remove the oil cooler inlet pipe bolt from the transaxle side.
  9. Remove the oil cooler inlet pipe assembly. See Fig 4

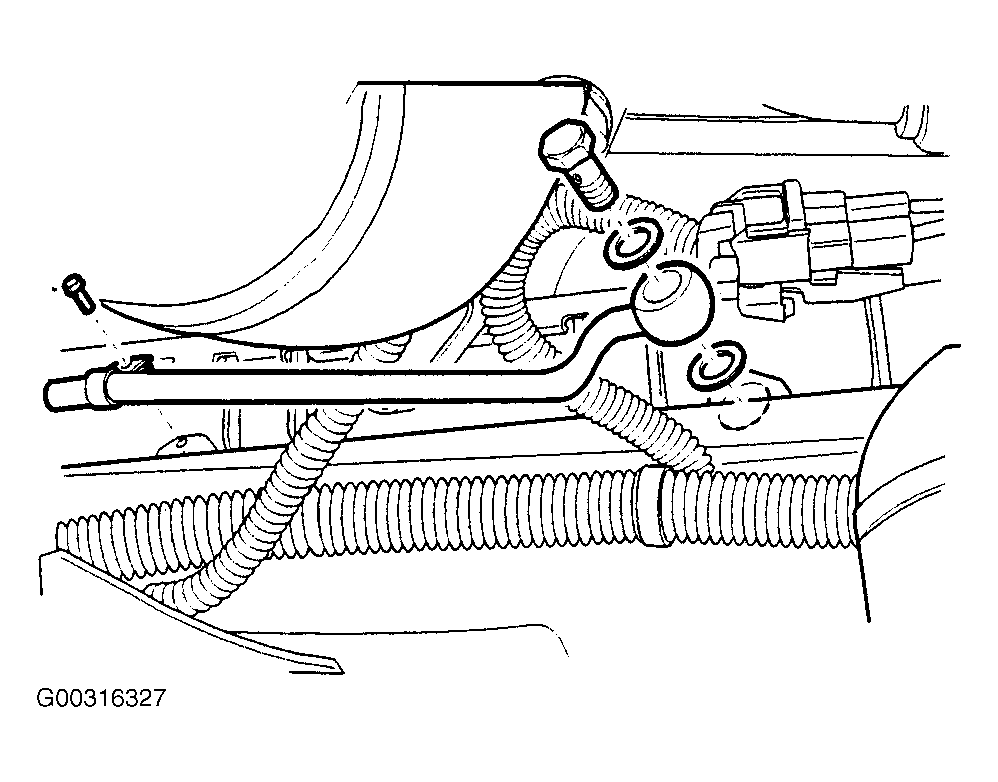

Fig 1: Removing Oil Cooler Outlet Pipe Bracket Bolt
G00316327Courtesy of SUZUKI OF AMERICA CORP.

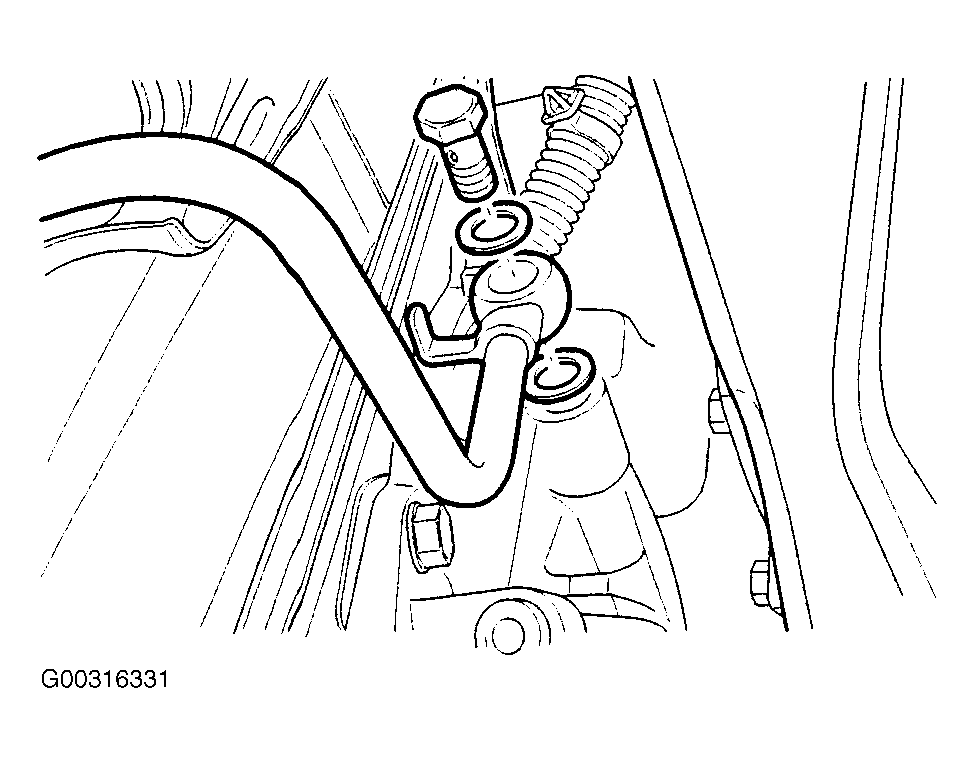

Fig 2: Removing Oil Cooler Outlet Pipe Assembly
G00316331Courtesy of SUZUKI OF AMERICA CORP.

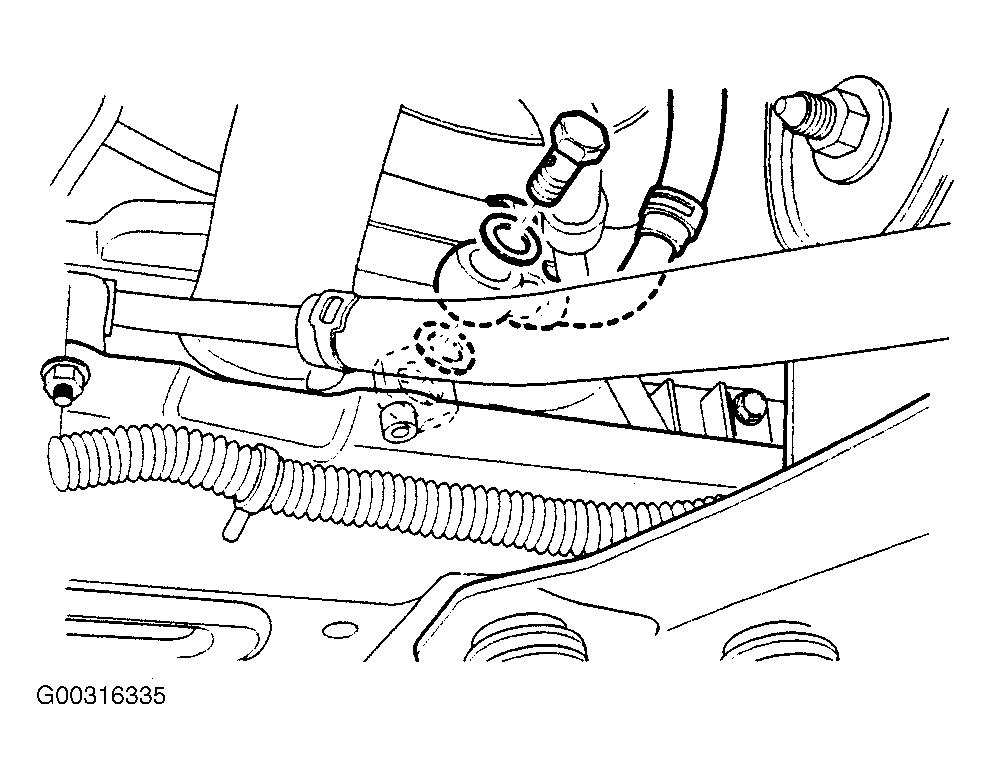

Fig 3: Removing Oil Cooler Inlet Pipe Bolt From Left Lower Side Of The Radiator
G00316335Courtesy of SUZUKI OF AMERICA CORP.

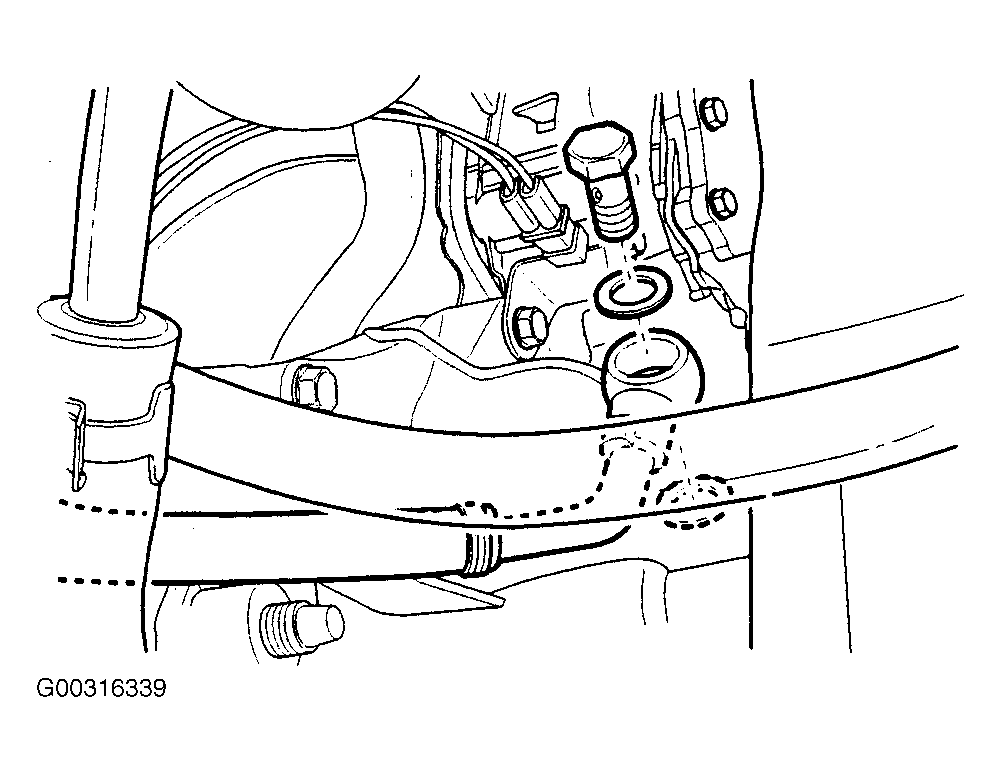

Fig 4: Removing The Oil Cooler Inlet Pipe Assembly
G00316339Courtesy of SUZUKI OF AMERICA CORP.
