Input Shaft & Shift Gear Components

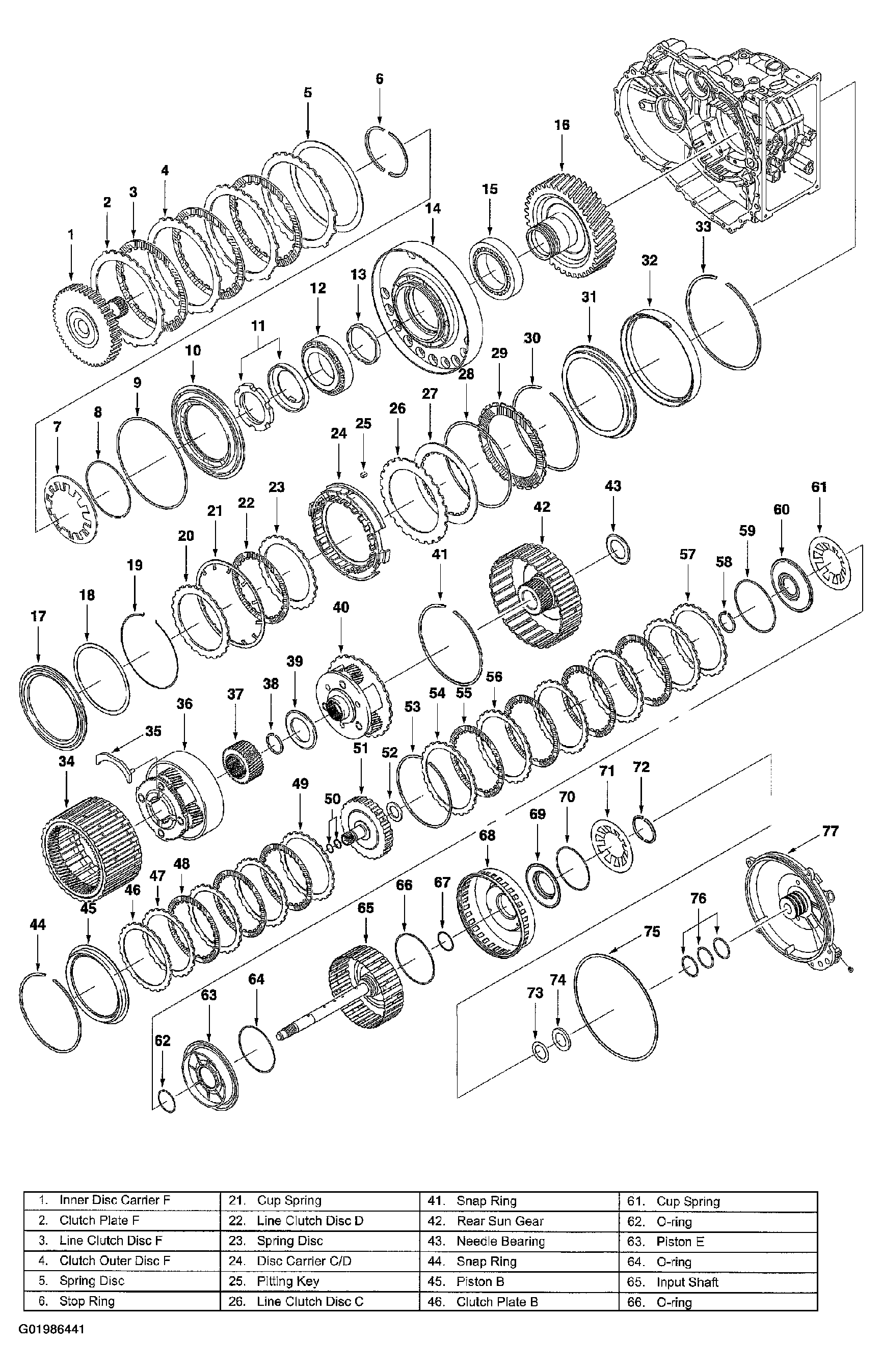

Fig 1: Identifying Input Shaft & Shift Gear Components (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

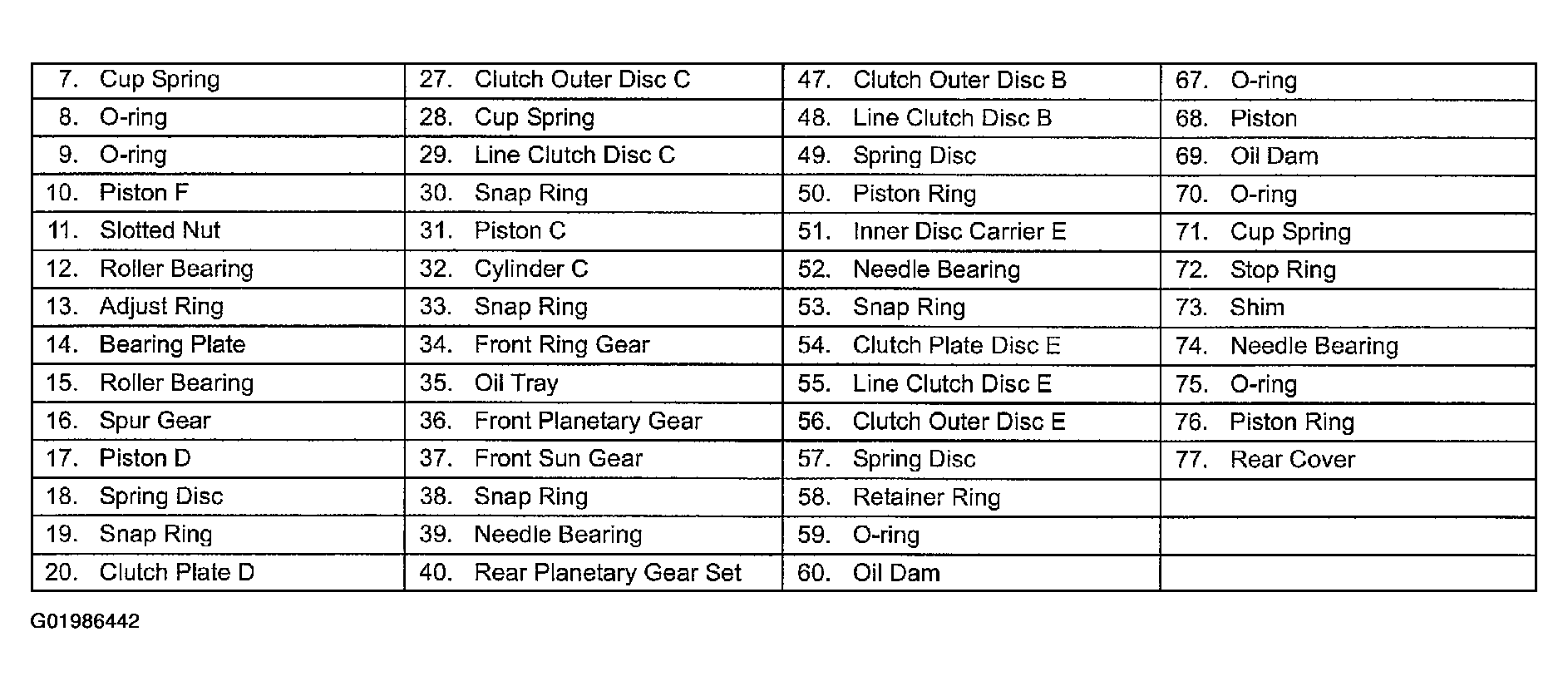

Fig 2: Identifying Input Shaft & Shift Gear Components (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
