Power Flow Diagram Park / Neutral: Reverse

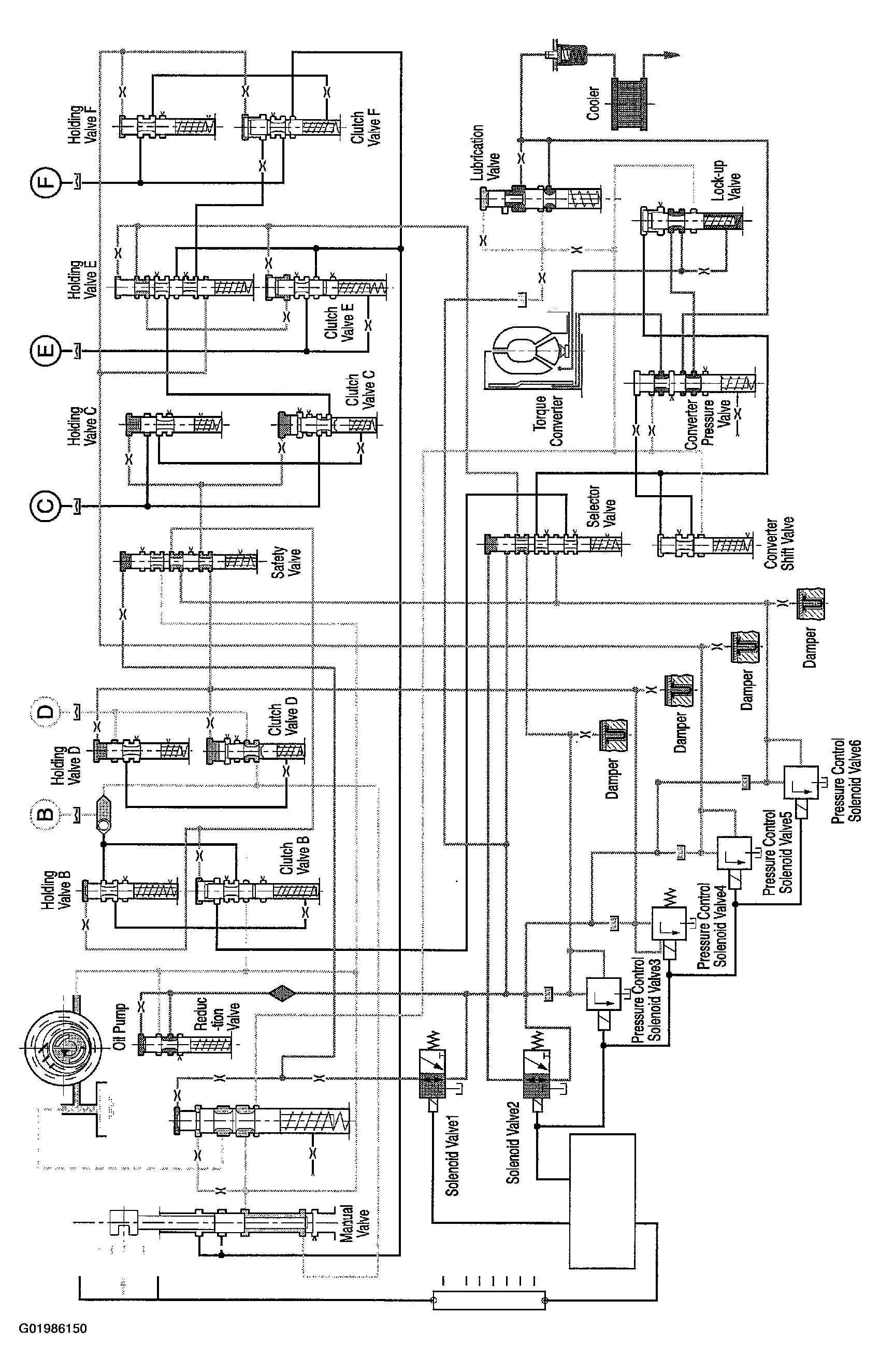

Fig 1: Identifying Reverse Diagram

Courtesy of SUZUKI OF AMERICA CORP.

In Reverse, transaxle drive is via the input shaft and clutch B. The elements of this transaxle function are as follows:

• Clutch B is engaged and drives the reverse sun gear in a clock-wise direction.
• The D band is engaged and holds the planetary gear carrier (front & rear) stationary causing the differential pinion to rotate clockwise.
• The differential rotates in a counterclockwise direction.
• The output shaft is driven in a counterclockwise or reverse direction.
