Bed Plate Removal

Remove the fuel pump fuse.
Start the engine and repeat cranking until the remaining fuel in the fuel line is all consumed.
Disconnect the negative battery cable.
Drain the engine coolant. Refer to DRAINING AND REFILLING THE COOLING SYSTEM .
Drain the engine oil.
Drain the transaxle oil.

Fig 1: Draining Transaxle Oil

G01985713

Courtesy of SUZUKI OF AMERICA CORP.

Drain the power steering oil.
Recover the refrigerant.
Remove the engine assembly. Refer to Engine Assembly Removal .
Remove the timing chain cover. Refer to Timing Chain Removal .
Remove the compressor.

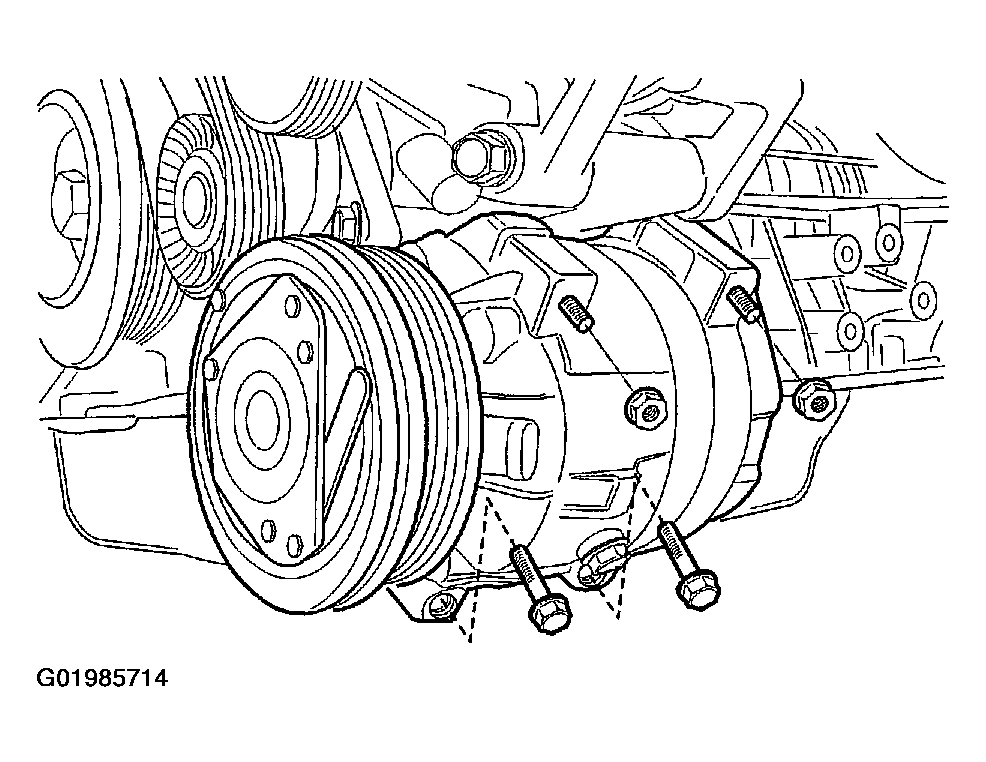

Fig 2: Removing Compressor

G01985714

Courtesy of SUZUKI OF AMERICA CORP.

Remove the idler retaining bolt, upper pad-to-lower pad bracket bolt, and the idler. Refer to Timing Chain Removal .

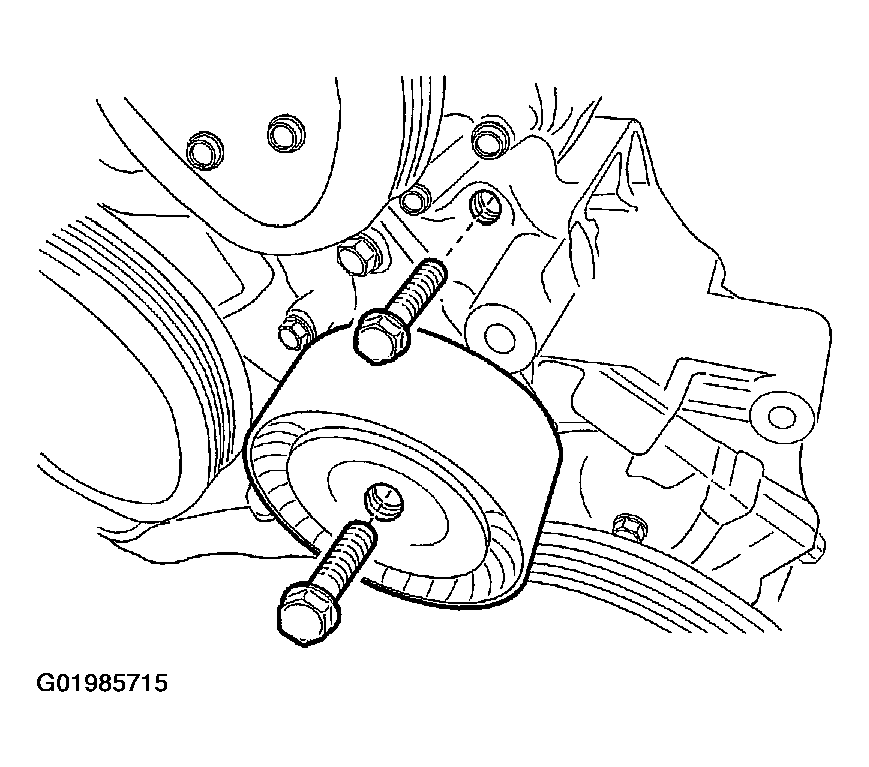

Fig 3: Removing Idler Retaining Bolt

G01985715

Courtesy of SUZUKI OF AMERICA CORP.

Remove the lower pad bracket.

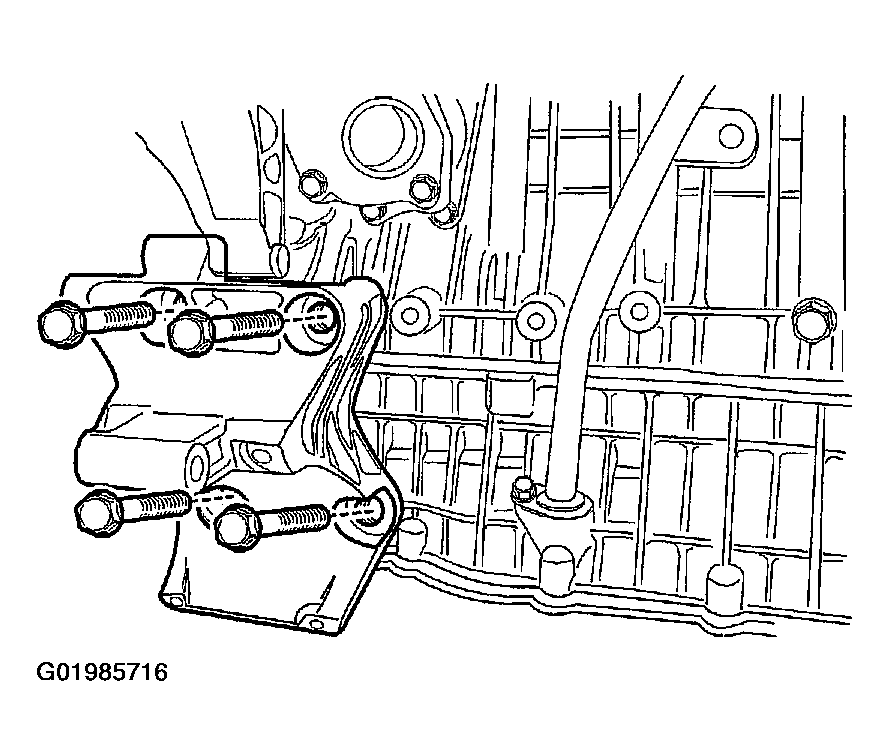

Fig 4: Removing Lower Pad Bracket

G01985716

Courtesy of SUZUKI OF AMERICA CORP.

Remove the engine oil dipstick tube.
Remove the CKP (Crankshaft Position) sensor. Refer to CRANKSHAFT POSITION (CKP) SENSOR REMOVAL .

Fig 5: Removing CKP Sensor

G01985717

Courtesy of SUZUKI OF AMERICA CORP.

Remove the bed plate baffle.

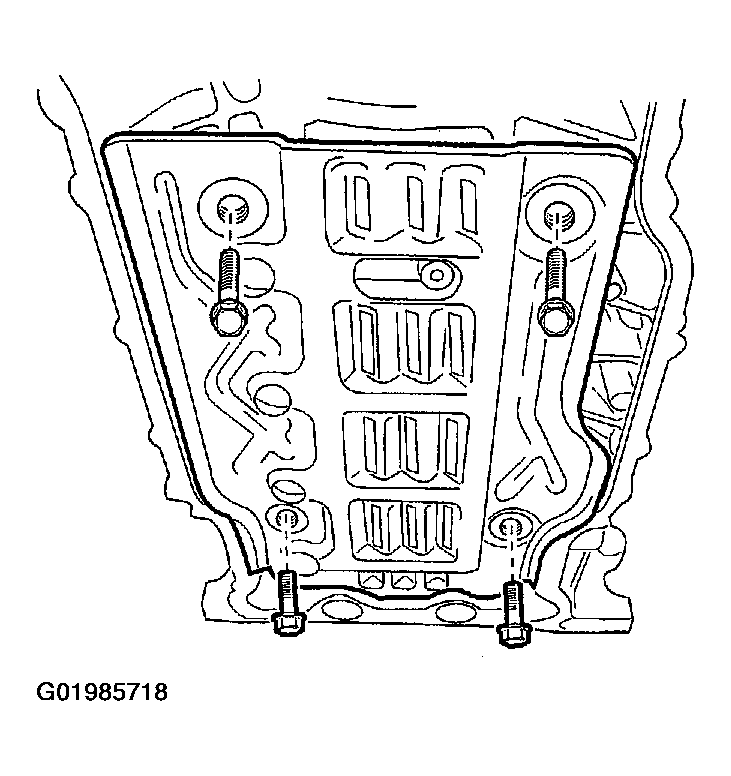

Fig 6: Removing Bed Plate Baffle

G01985718

Courtesy of SUZUKI OF AMERICA CORP.

Remove the oil pump chain lever.

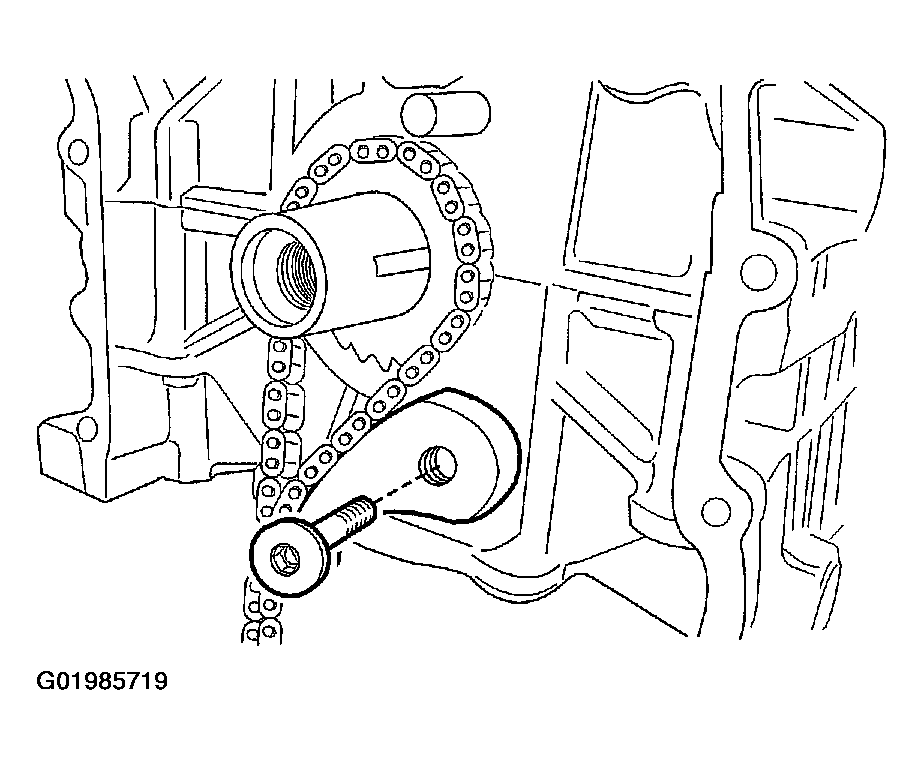

Fig 7: Removing Oil Pump Chain Lever

G01985719

Courtesy of SUZUKI OF AMERICA CORP.

Remove the bed plate outer bolts in the sequence shown.

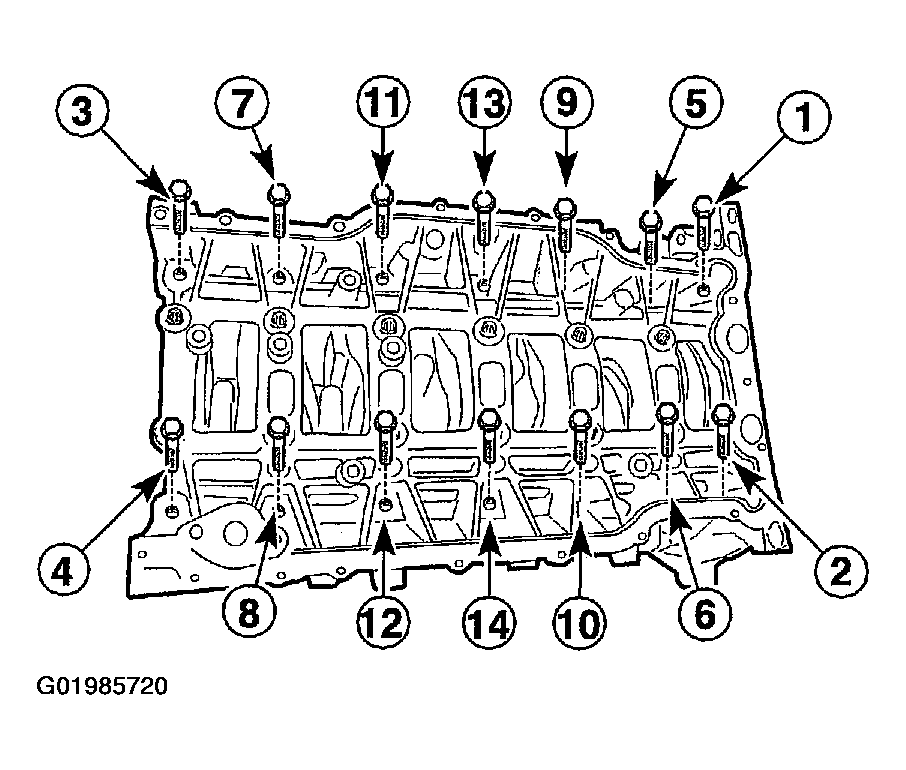

Fig 8: Removing Bed Plate Outer Bolts In Sequence

G01985720

Courtesy of SUZUKI OF AMERICA CORP.

Remove the bed plate inner bolts in the sequence shown.

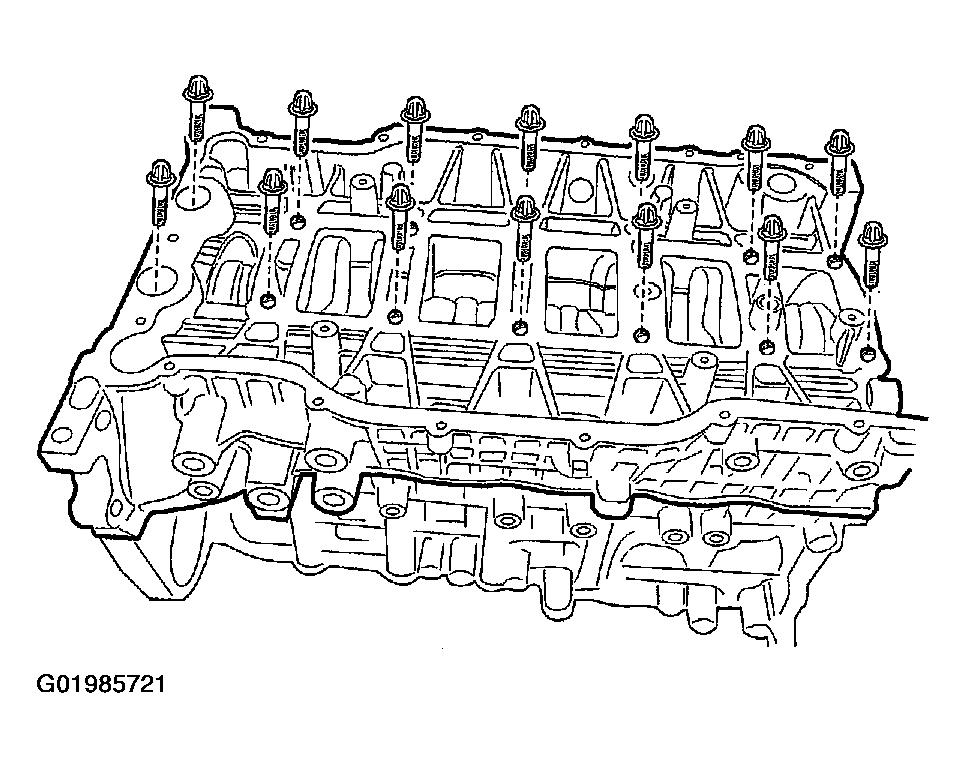

Fig 9: Removing Bed Plate Inner Bolts In Sequence

G01985721

Courtesy of SUZUKI OF AMERICA CORP.
