Muffler - Front Removal

Remove the nuts and the gasket from the front muffler pipe to the exhaust front pipe flange.

Fig 1: Removing Nuts & Gasket From Front Muffler Pipe

Courtesy of SUZUKI OF AMERICA CORP.

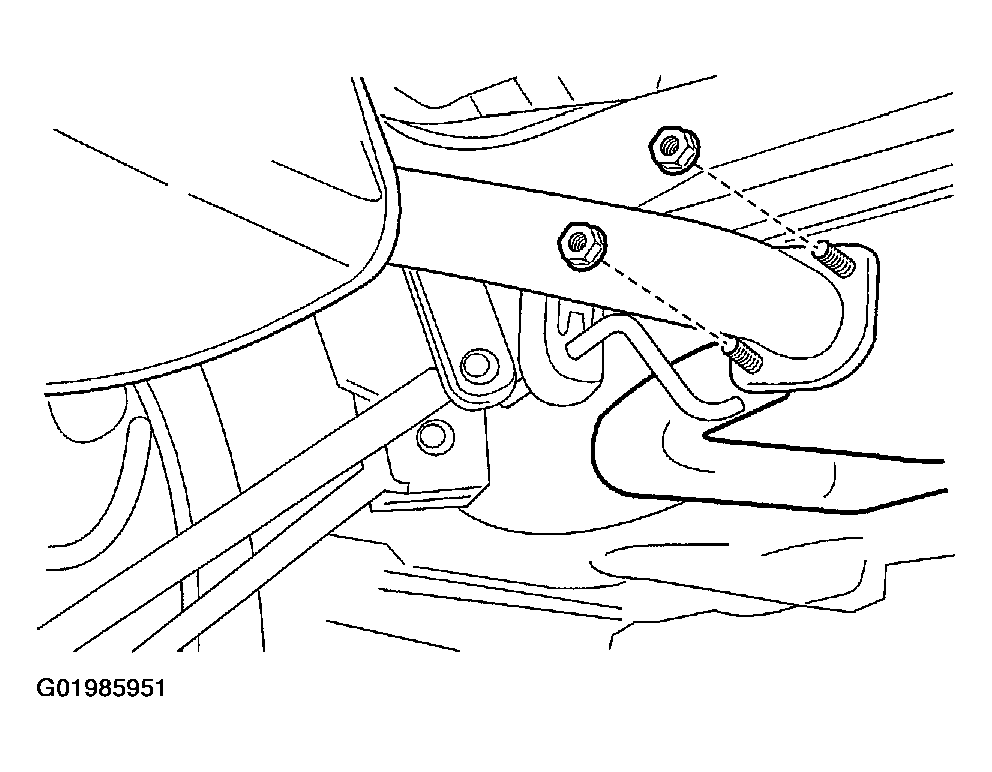

Fig 2: Removing Nuts & Gasket From Rear Muffler Pipe

Courtesy of SUZUKI OF AMERICA CORP.

Disconnect the front muffler from the rubber hanger.
Remove the front muffler.
Check the exhaust pipe and the front muffler for holes, damage, open seams, or other deterioration which could permit exhaust fumes to seep into the passenger compartment or the trunk.

Fig 3: Checking Exhaust Pipe & Front Muffler For Holes

Courtesy of SUZUKI OF AMERICA CORP.
