Exhaust Front Pipe Removal

  1. Remove the exhaust lower bracket bolts.
  2. Remove the exhaust lower bracket.
  3. Remove the exhaust front pipe nuts and the gasket.

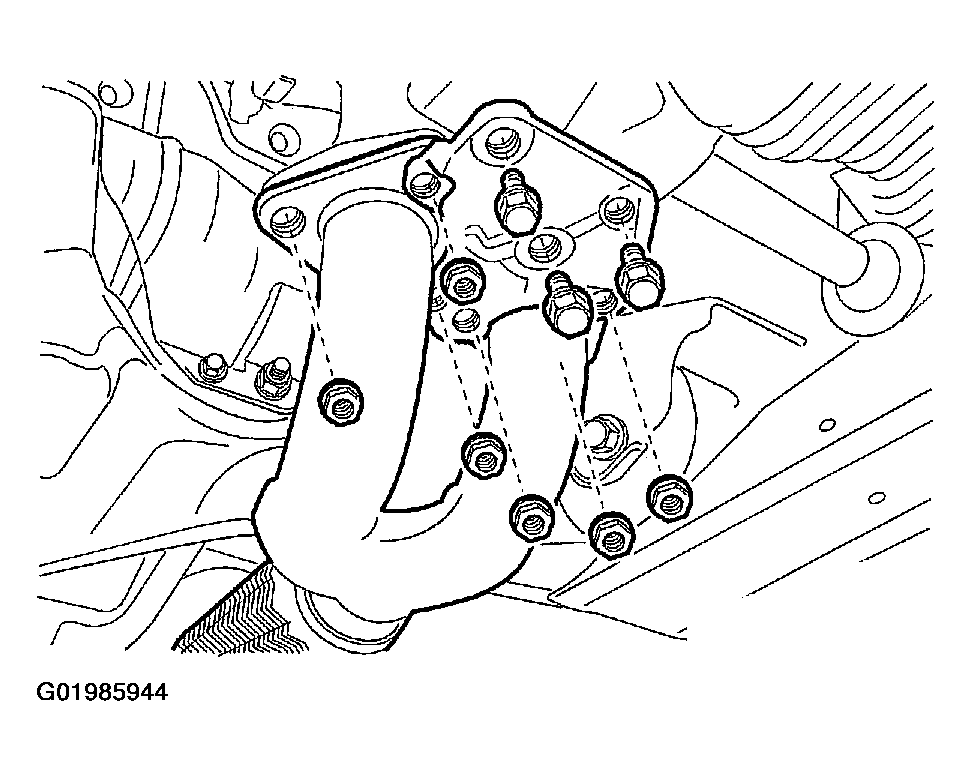

    4. Fig 1: Removing Exhaust Front Pipe Nuts & Gasket
    G01985944Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the exhaust front pipe to exhaust front muffler nuts and the gasket.

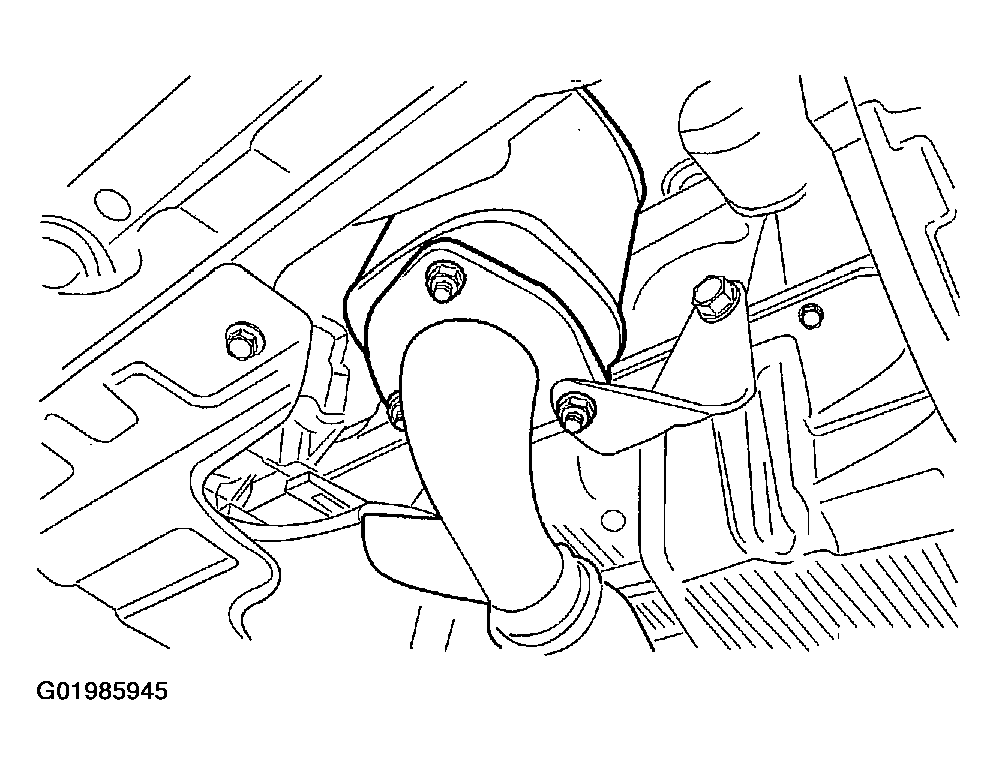

    5. Fig 2: Removing Exhaust Front Pipe To Exhaust Front Muffler Nuts & Gasket
    G01985945Courtesy of SUZUKI OF AMERICA CORP.
  5. Disconnect the exhaust front pipe from the rubber hanger.
  6. Remove the exhaust front pipe.
  7. Clean the sealing surfaces on the front muffler pipe flange and the exhaust front pipe.
  8. Check the exhaust front pipe for holes, damage, open seams, or other deterioration which could permit exhaust fumes to see into the passenger compartment.

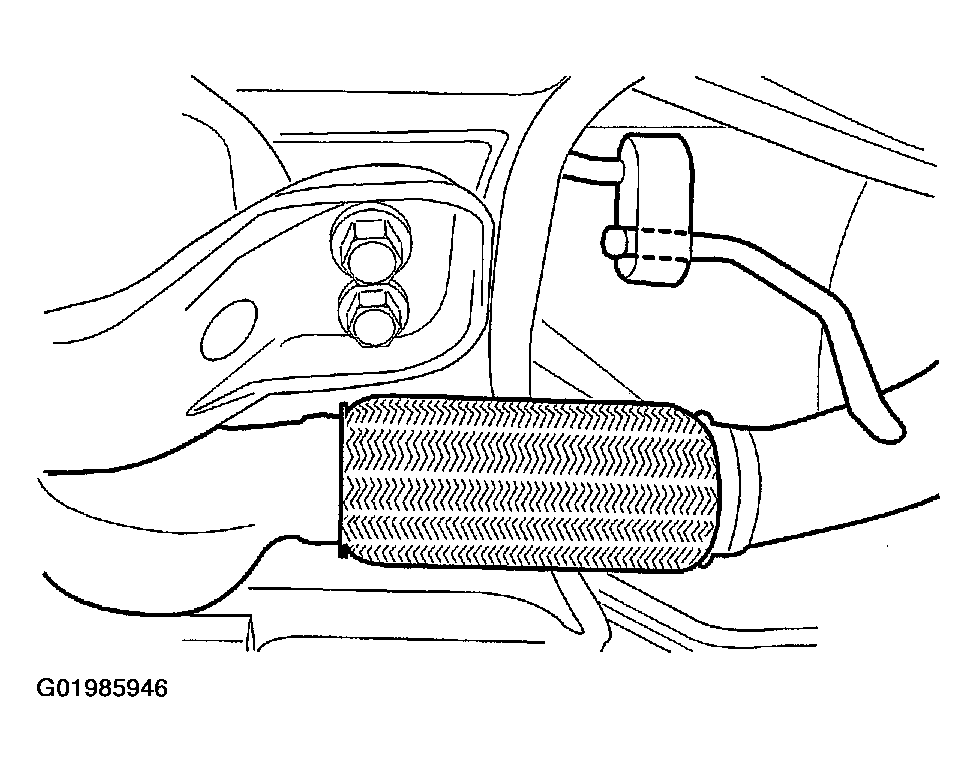

Fig 3: Checking Exhaust Front Pipe For Holes
G01985946Courtesy of SUZUKI OF AMERICA CORP.
