Front Wheel Speed Sensor Removal and Installation: Removal

1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Disconnect the front wheel speed sensor electrical connector.
4. Remove the front hub unit from the steering knuckle assembly, because the wheel speed sensor is not serviceable separately.

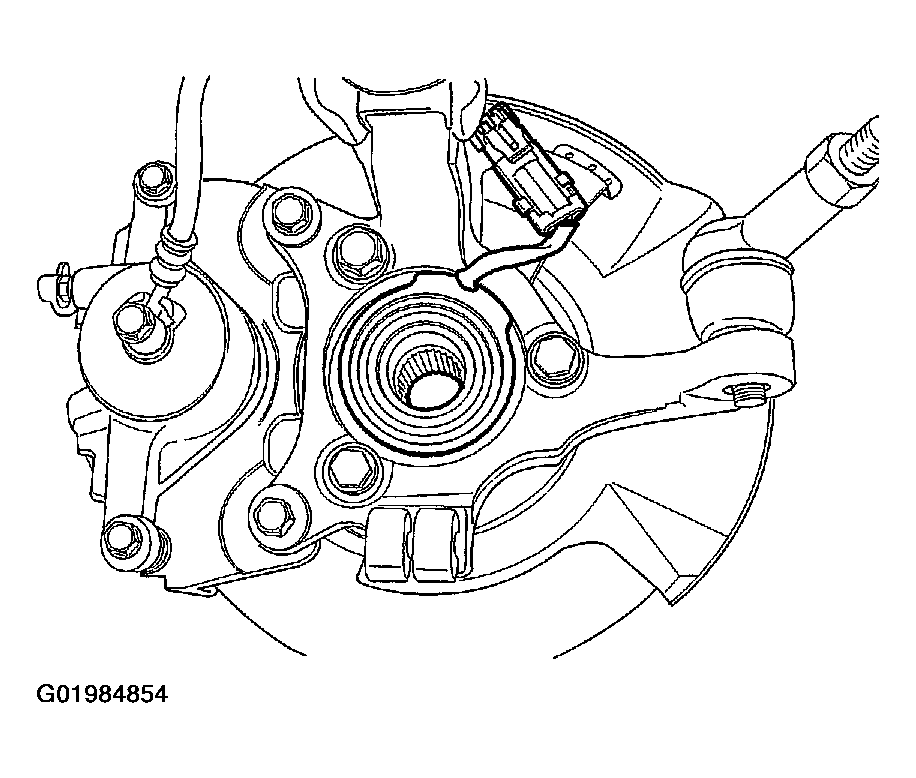

Fig 1: Removing Front Hub Unit From Steering Knuckle Assembly

Courtesy of SUZUKI OF AMERICA CORP.
