DTC C0094: Brake Switch Always ON: Notes

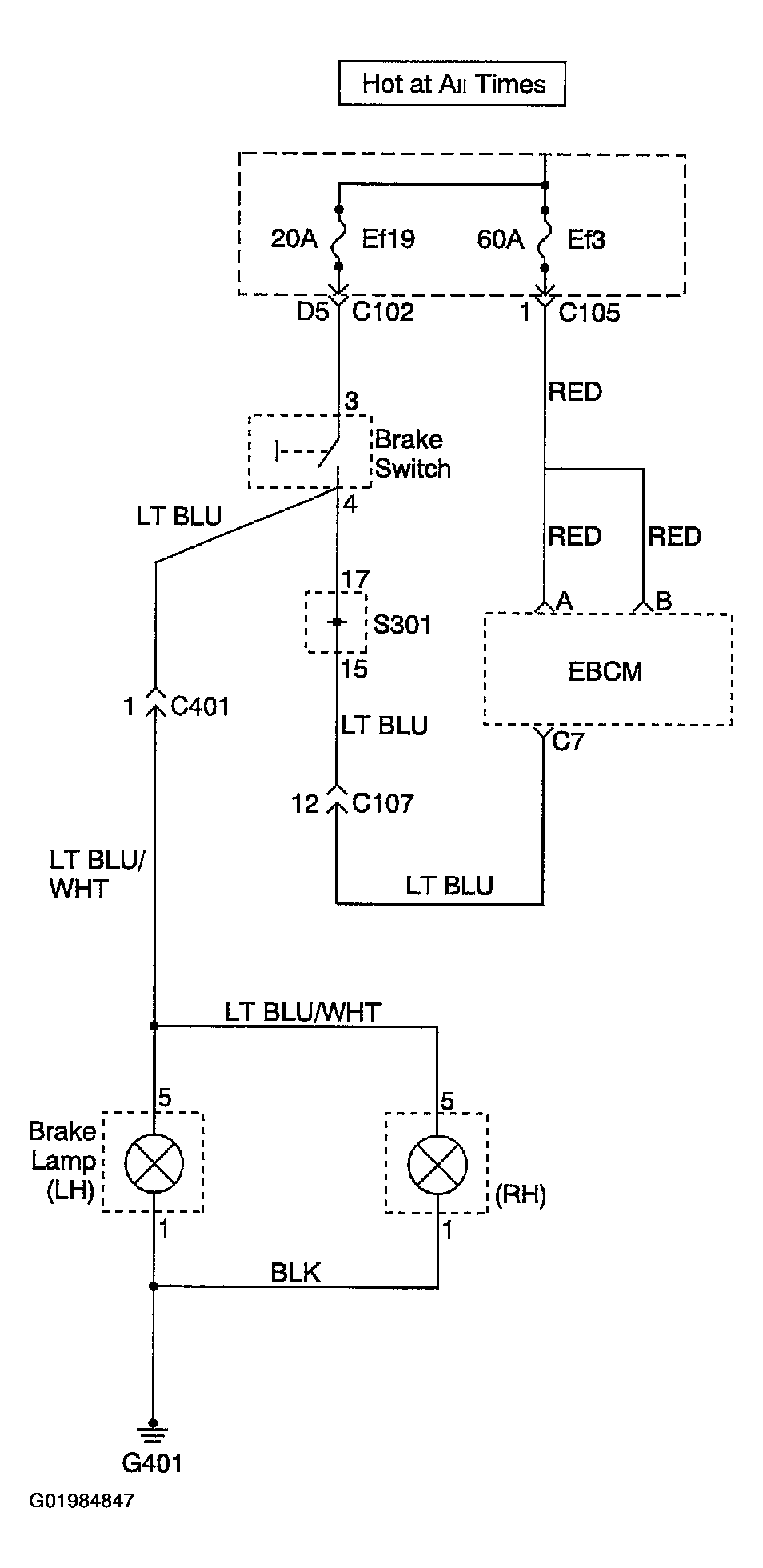

Fig 1: DTC C0094: Brake Switch Always ON - Wiring Diagram
G01984847Courtesy of SUZUKI OF AMERICA CORP.
