Power Driver Seat Slide Assembly Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the slide assembly with the bolts and the screws.
1. Tighten the slide assembly bolts to 25 N.m (18 lb-ft).
2. Tighten the slide assembly screws to 10 N.m (89 lb-in).
Connect the electrical connector.
Install the front seat cushion. Refer to Front Seat Cushion Installation (for Power Driver Seat) .
Install the driver seat. Refer to Front Bucket Seat Installation (for Power Driver Seat) .

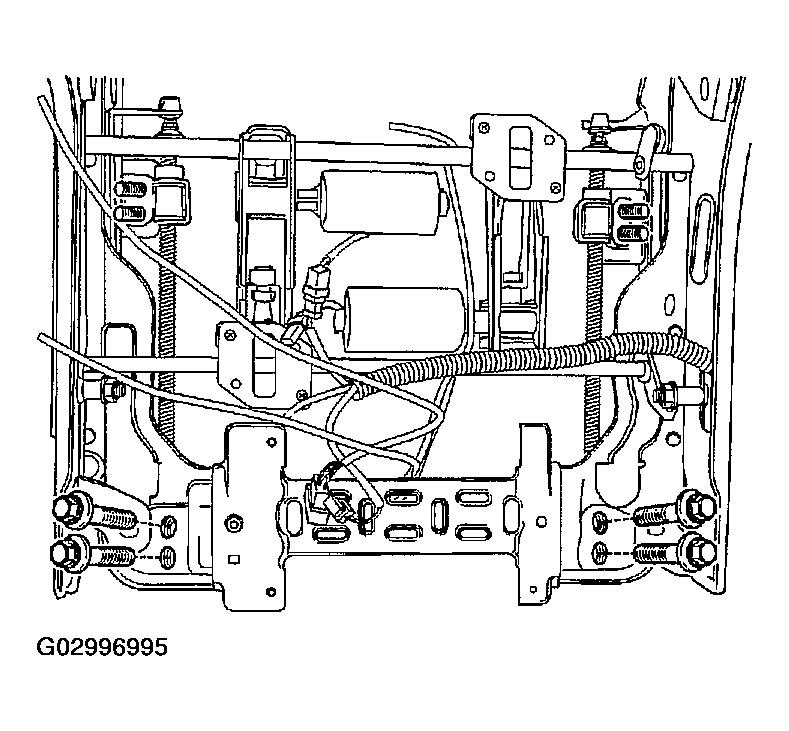

Fig 1: Installing Driver Seat

Courtesy of SUZUKI OF AMERICA CORP.
