Front Seat Trim Installation (for Power Driver Seat)

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the front seat trim with the screws.
   1. Tighten the front seat trim screws to 12 N.m (106 lb-in).
2. Install the recliner lever with the screw.
   1. Tighten the seat recliner lever screw to 12 N.m (106 lb-in).
3. Install the front bucket seat in the vehicle. Refer to Front Bucket Seat Installation (for Power Driver Seat)  .

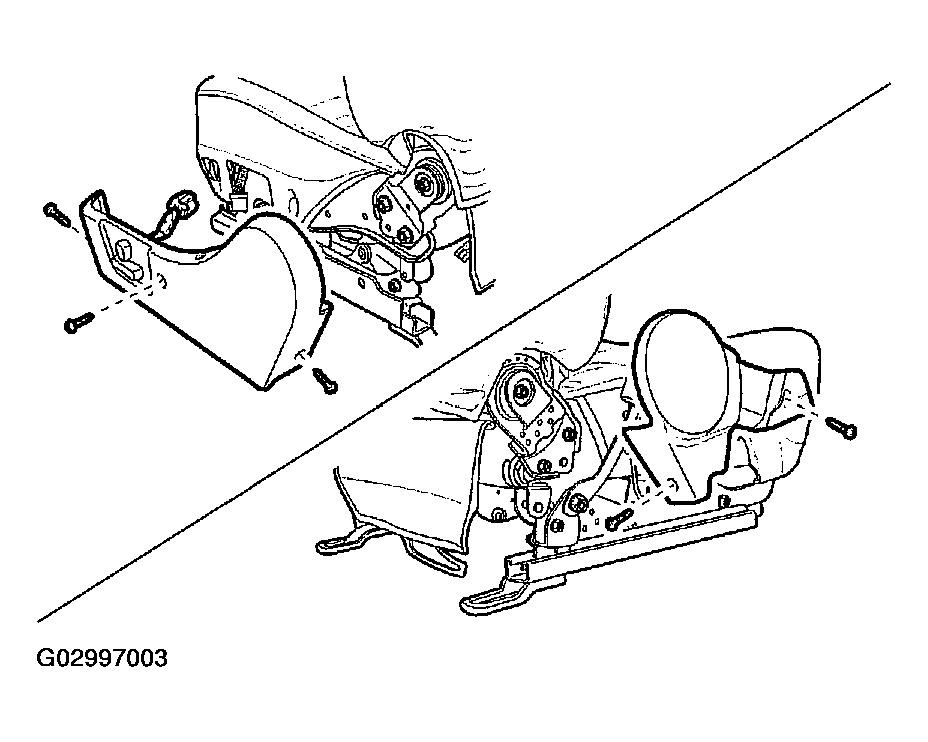

Fig 1: Installing Front Seat Trim & Recliner Lever Screws

Courtesy of SUZUKI OF AMERICA CORP.
