Shift Cable: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air filter housing assembly and bolts.
  3. Remove the clip from the selector lever connection on the transaxle case and disconnect the shift control cable from the selector lever connection.
  4. Remove the clip from the shift control cable at the transaxle mount connection. See Fig 1 .
  5. Remove the floor console. See FLOOR CONSOLE  .
  6. Loosen the shift control cable adjuster pinch nut.
  7. Loosen the nut from the cable bracket.
  8. Remove the shift control cable from the shift control assembly. See Fig 2 .
  9. Remove the shift control cable from the transaxle mount.
  10. Pull the shift control cable through the fire wall of the vehicle, bringing the rubber grommet with it. See Fig 3 .

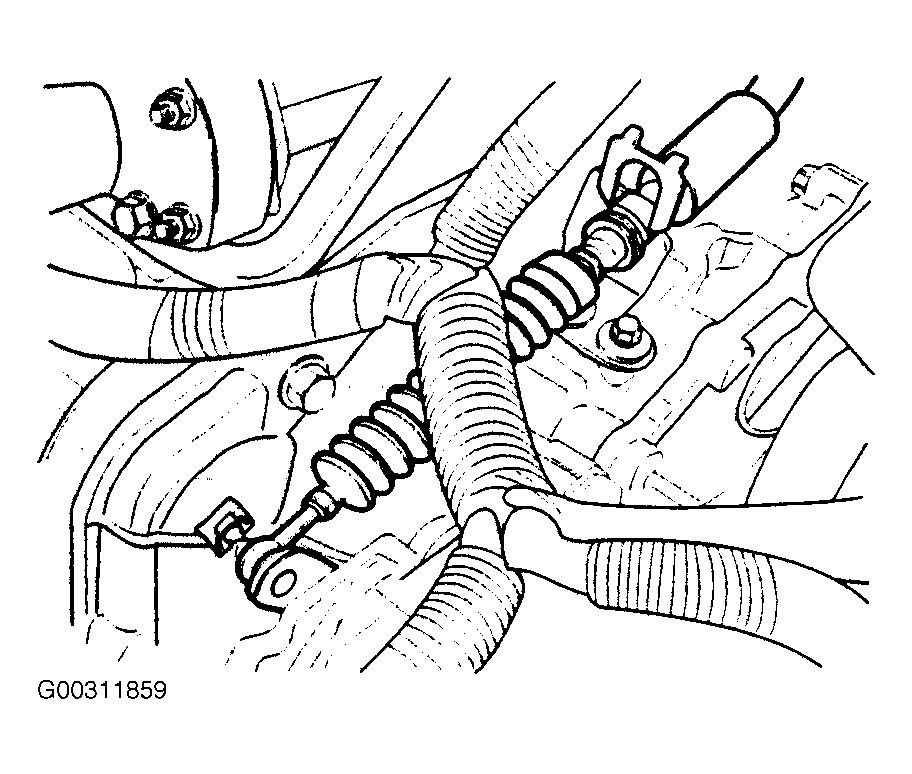

Fig 1: Removing Clip From Shift Control Cable
G00311859Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Removing Shift Control Cable From The Shift Control Assembly
G00316292Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Pulling Shift Control Cable Through The Fire Wall
G00316296Courtesy of SUZUKI OF AMERICA CORP.
