Park/Neutral Start Switch: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air filter housing.
  3. Disconnect the park/neutral start switch electrical connector.
  4. Disconnect the shift control cable and the retaining clip. See Fig 1 .
  5. Remove the shift lever nut and the shift lever. See Fig 2 .
  6. Remove the park/neutral start switch. See Fig 3 .

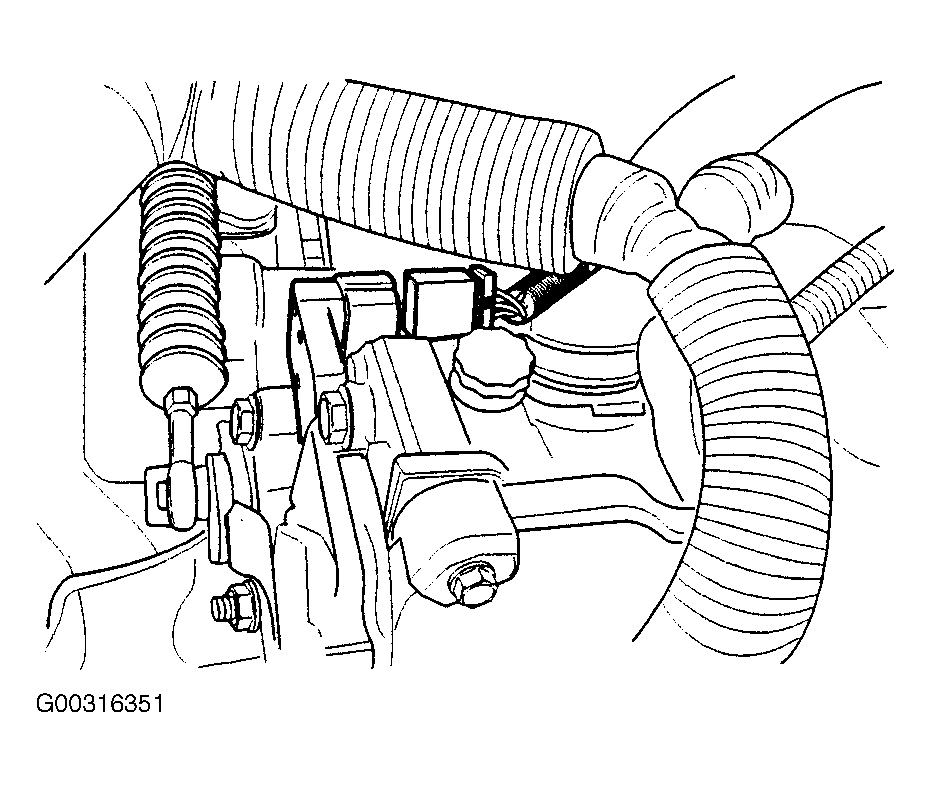

Fig 1: Disconnecting Shift Control Cable And Retaining Clip
G00316351Courtesy of SUZUKI OF AMERICA CORP.

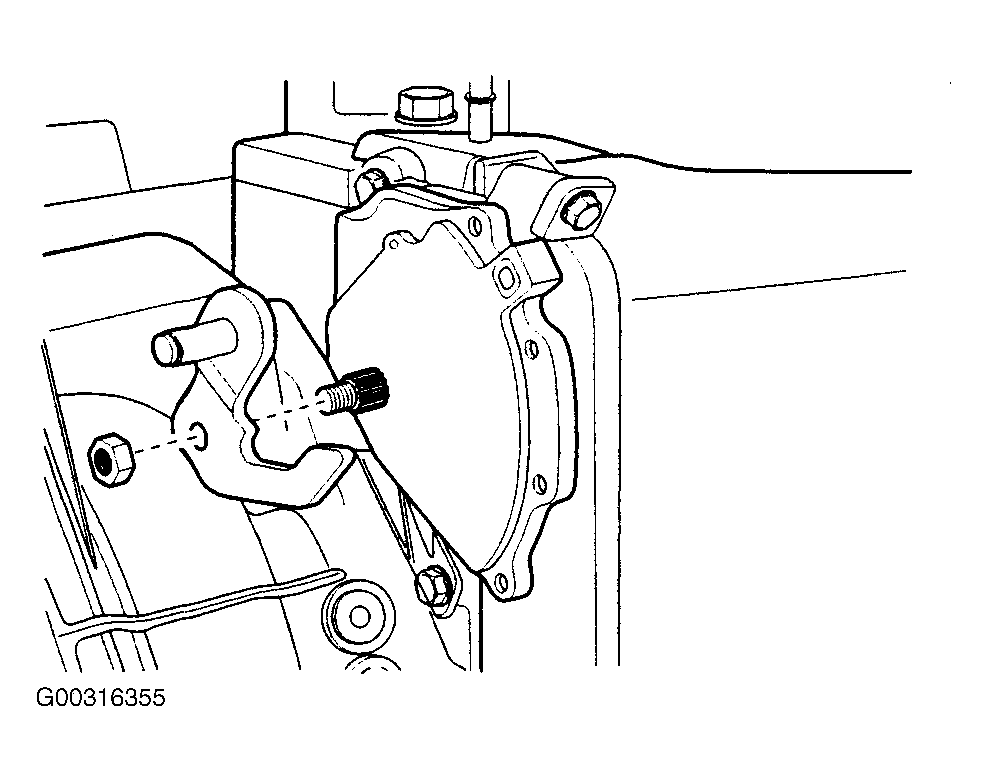

Fig 2: Removing Shift Lever Nut And The Shift Lever
G00316355Courtesy of SUZUKI OF AMERICA CORP.

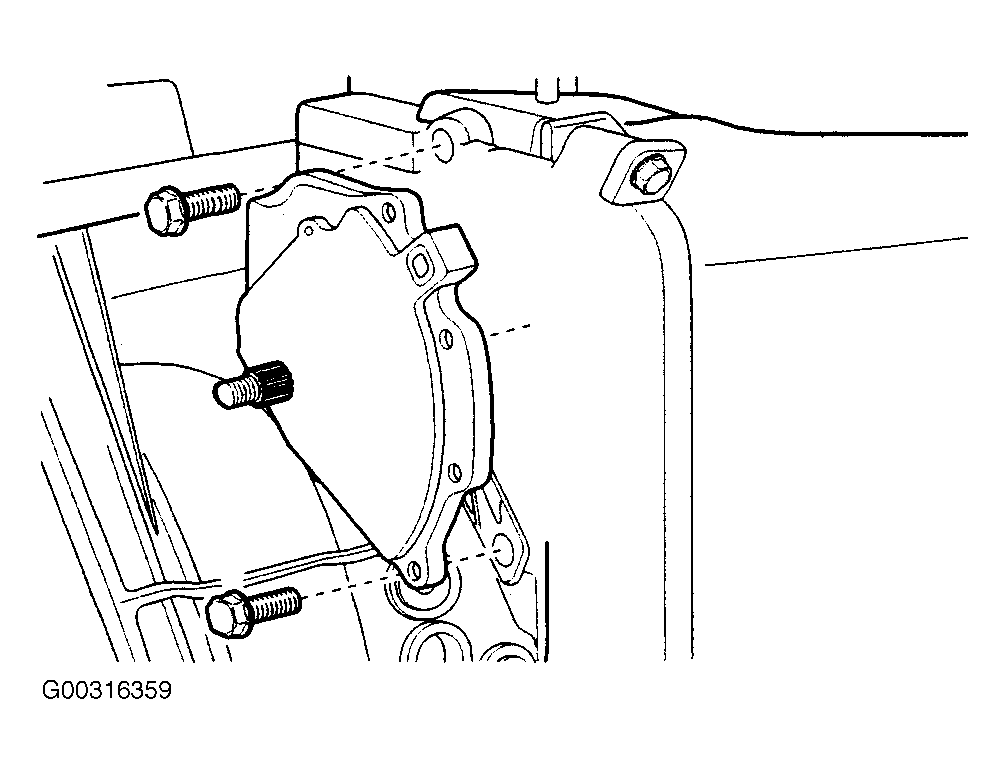

Fig 3: Removing Park/Neutral Start Switch
G00316359Courtesy of SUZUKI OF AMERICA CORP.
