Oil Pan: Installation

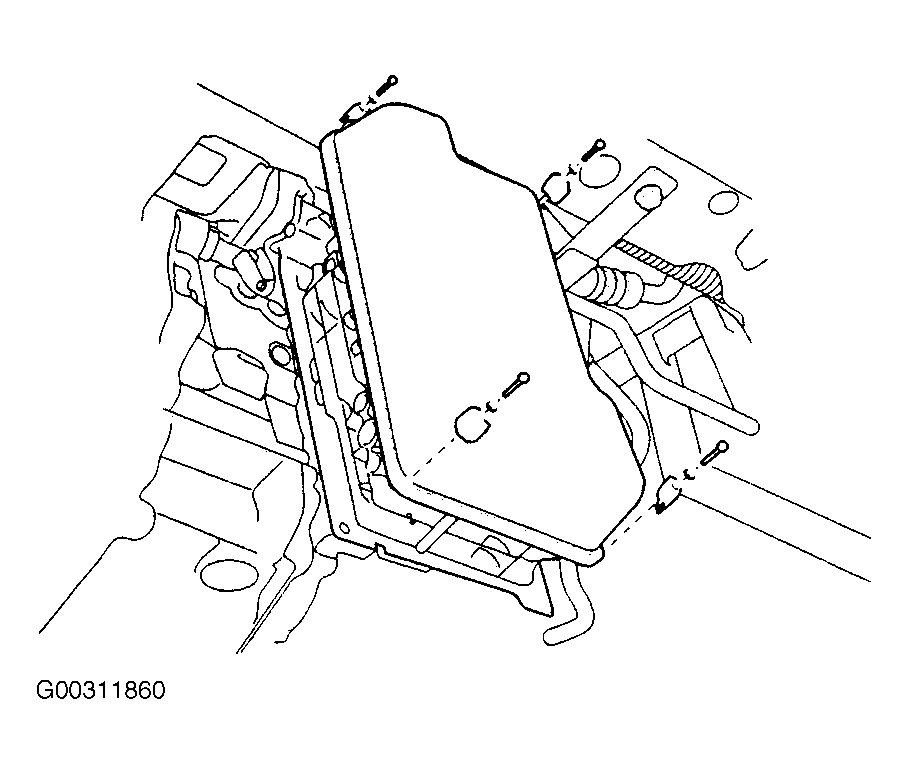

  1. Install the oil pan, oil pan gasket and bolts. See Figure .

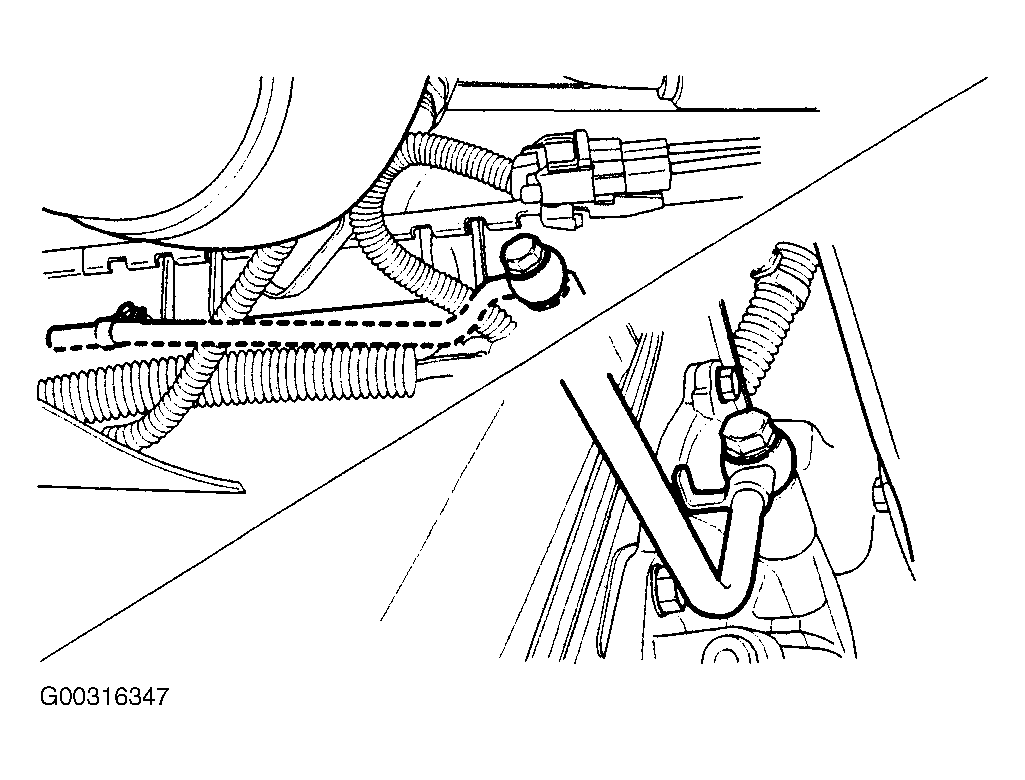

  2. Install the oil cooler inlet and outlet pipes. See Figure . See OIL COOLER PIPES/HOSES  .
  3. Install the transaxle fluid drain plug using the plug remover/installer.
  4. Install the engine under cover.
  5. Refill the transaxle fluid. See CHECKING FLUID LEVEL  . See Figure .
  6. Connect the negative battery cable.
