Oil Cooler Pipes/Hoses: Installation

  1. Install the oil cooler inlet pipe assembly and the bolts. Tighten bolts to the specifications. See TORQUE SPECIFICATIONS  . See Fig 1 .
  2. Install the oil cooler outlet pipe assembly and the bolts.
  3. Refill the transaxle fluid. See CHECKING FLUID LEVEL  under LUBRICATION.
  4. Install the engine under cover.
  5. Connect the negative battery cable.

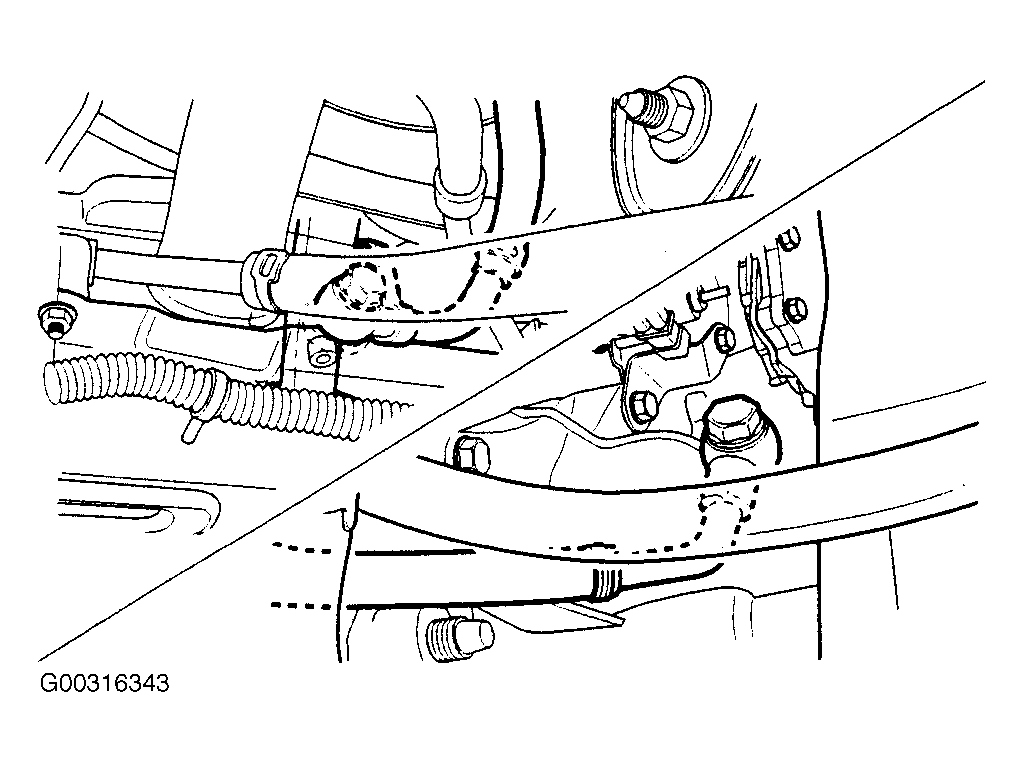

Fig 1: Installing Oil Cooler Inlet Pipe Assembly And Bolts
G00316343Courtesy of SUZUKI OF AMERICA CORP.
