Control Valve Body Assembly: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air filter housing.
  3. Disconnect the transaxle wiring harness and the park/neutral start switch electrical connector. See Fig 1 .
  4. Raise and suitably support the vehicle.
  5. Remove the engine under cover.
  6. Remove the transaxle fluid drain plug using the plug removal/installer and drain the transaxle fluid. See Figure .
  7. Remove the oil pan, oil pan gasket. See OIL PAN  .
  8. Remove the valve body mounting bolts.
  9. Remove the input speed sensor mounting bolt. See Fig 2 .
  10. Tilt the valve body.
  11. Remove the output speed sensor mounting bolt under the valve body assembly. See Fig 3 .
  12. Remove the control valve body. See Fig 4 .

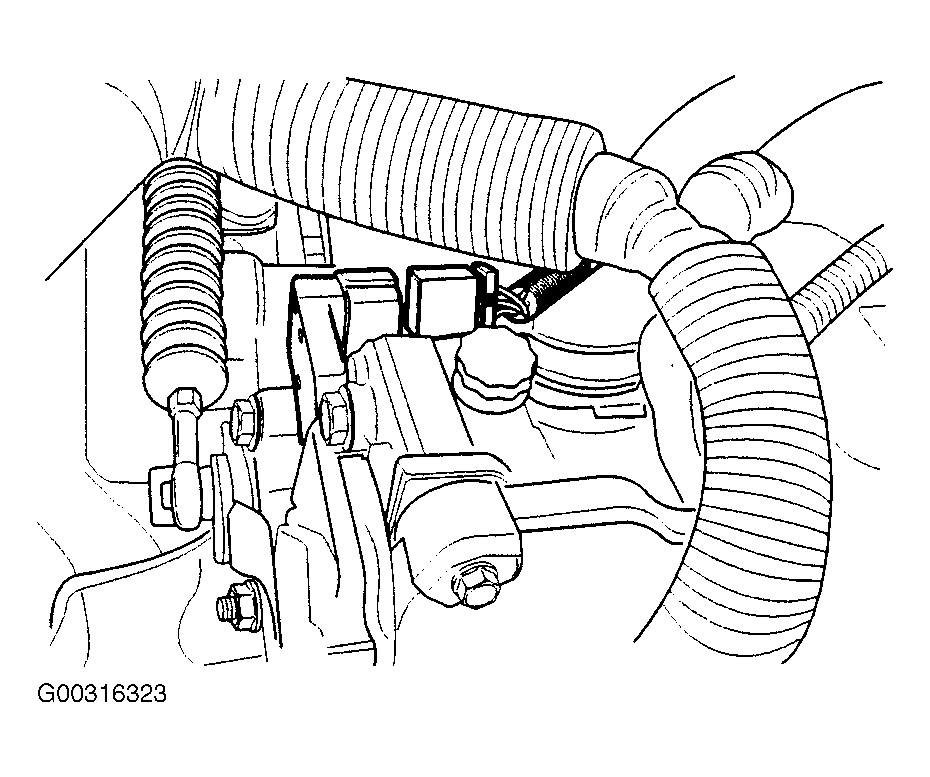

Fig 1: Disconnecting Transaxle Wiring Harness
G00316323Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Removing Input Speed Sensor Mounting Bolt
G00311848Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Removing Output Speed Sensor Mounting Bolt
G00311852Courtesy of SUZUKI OF AMERICA CORP.

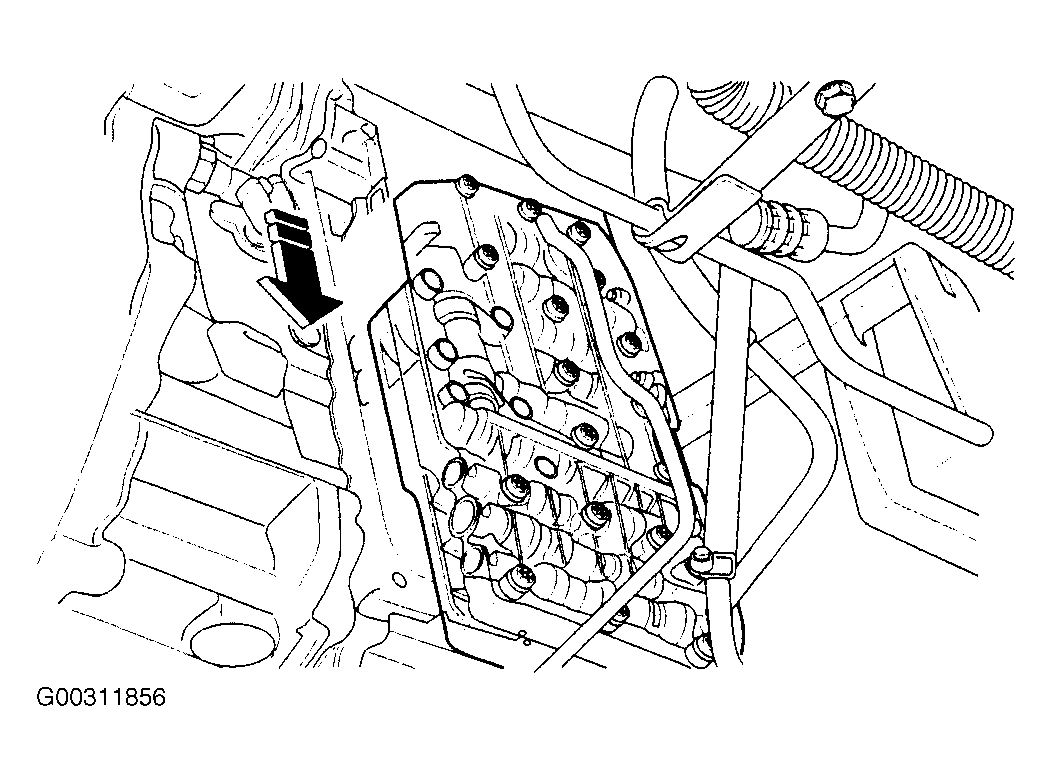

Fig 4: Removing Control Valve Body
G00311856Courtesy of SUZUKI OF AMERICA CORP.
