DTC P0606: Transaxle Control Module Processor Fault
>>
Conditions for Clearing the MIL/DTC
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Conditions for Clearing the MIL/DTC
The MIL will turn OFF when the malfunction has not occurred after three-ignition cycle.
A history DTC will clear after 40 consecutive warm up cycles without a fault.
Using a scan tool can clear history DTCs.

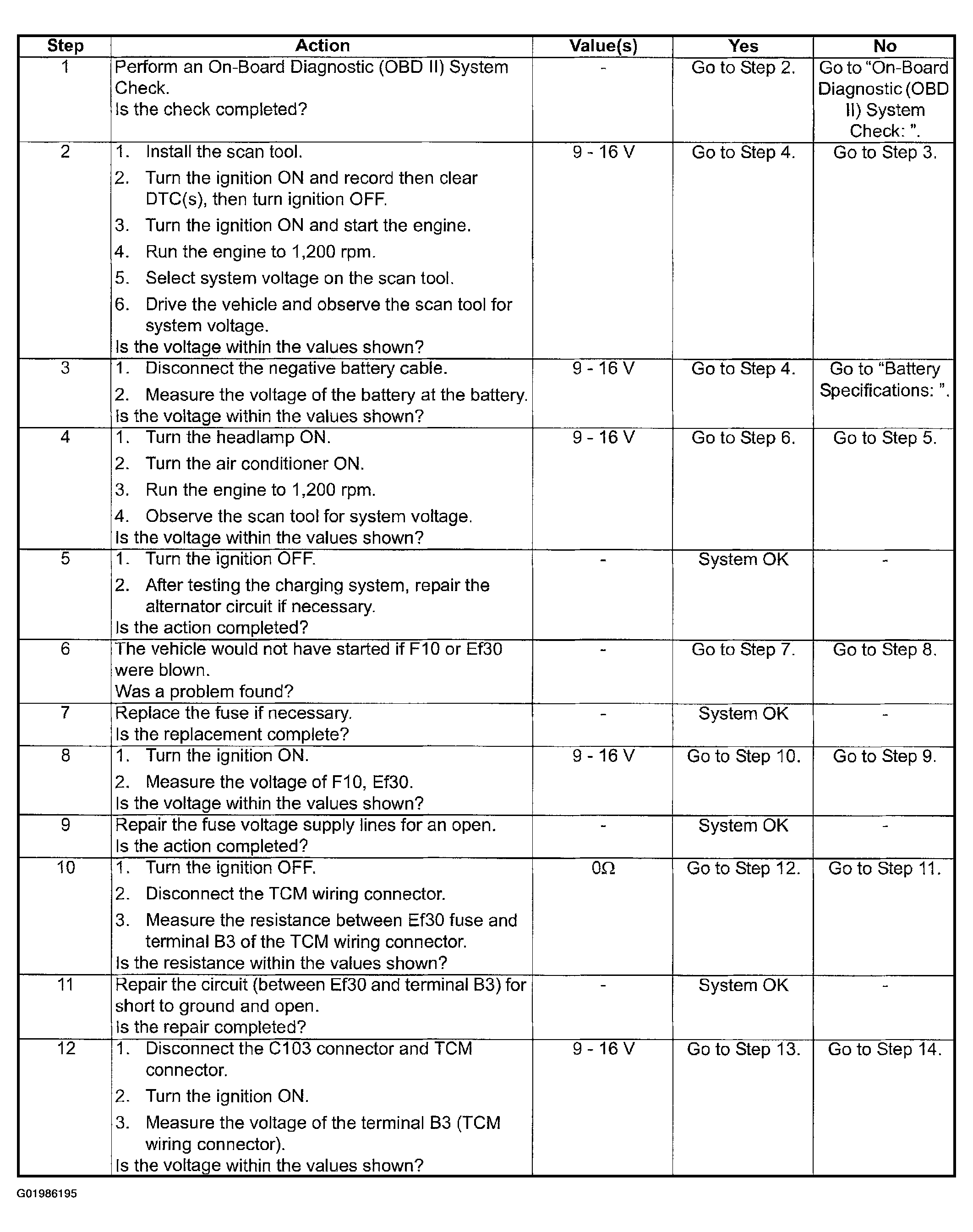

Fig 1: DTC P0606: Transaxle Control Module Processor Fault Diagnostic Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

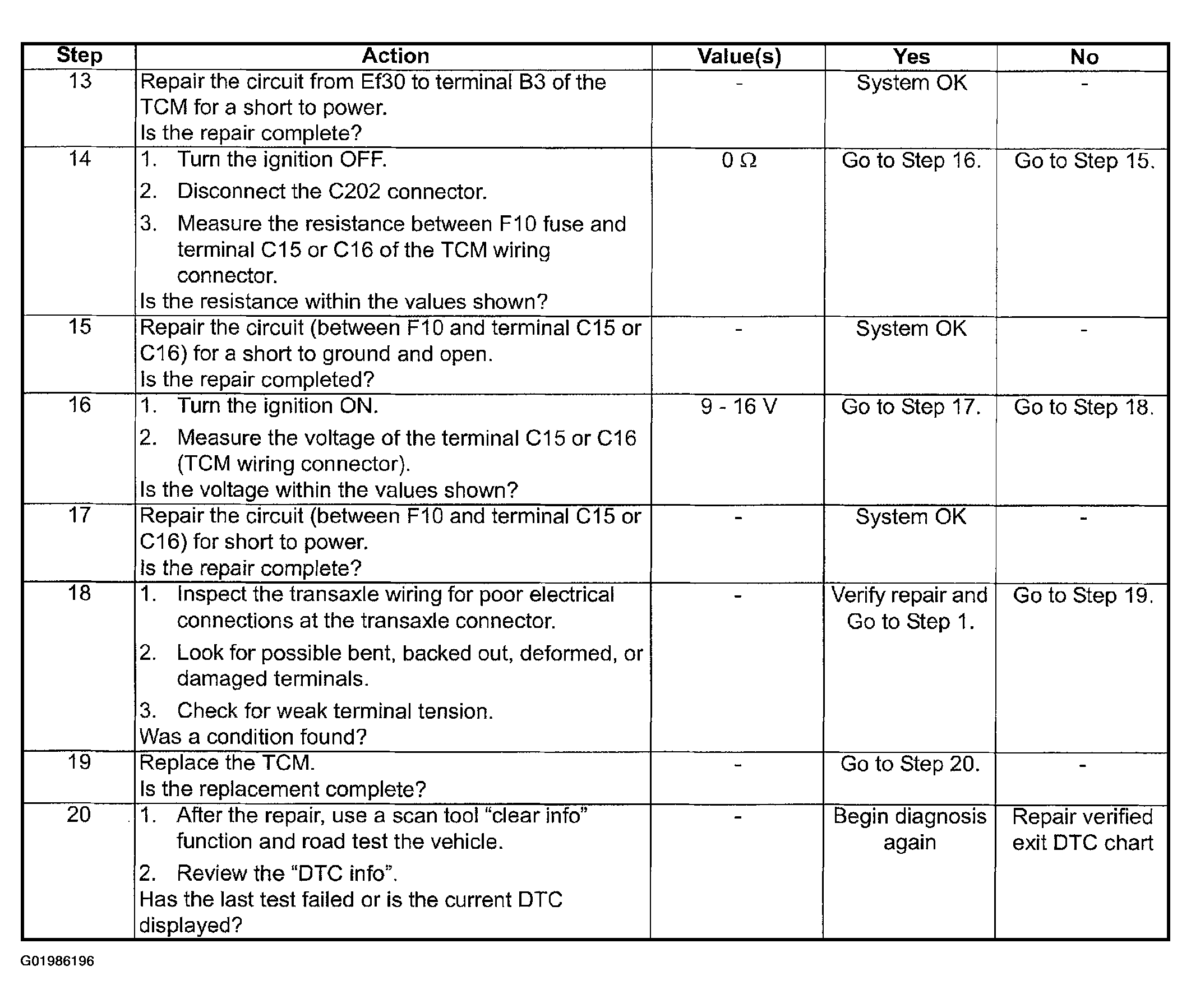

Fig 2: DTC P0606: Transaxle Control Module Processor Fault Diagnostic Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
