Outer Tie Rod Removal

Tools Required

1. KM-507-B Ball Joint Remover

1. Remove the wheel.
2. Mark the threads on the inner tie rod to aid in repositioning the adjusting nut.
3. Remove the outer tie rod nut and disconnect the outer tie rod from the steering knuckle using the ball joint remover KM-507-B.

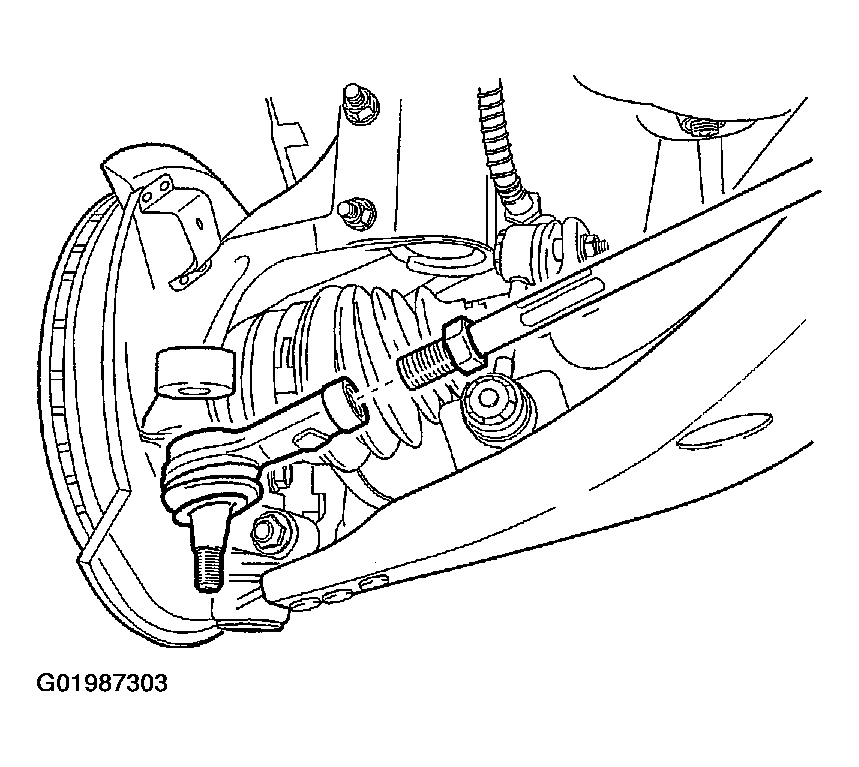

Fig 1: Disconnecting Outer Tie Rod From Steering Knuckle
Courtesy of SUZUKI OF AMERICA CORP.
4. Loosen the outer tie rod adjusting nut and remove the outer tie rod by twisting it off the inner tie rod.

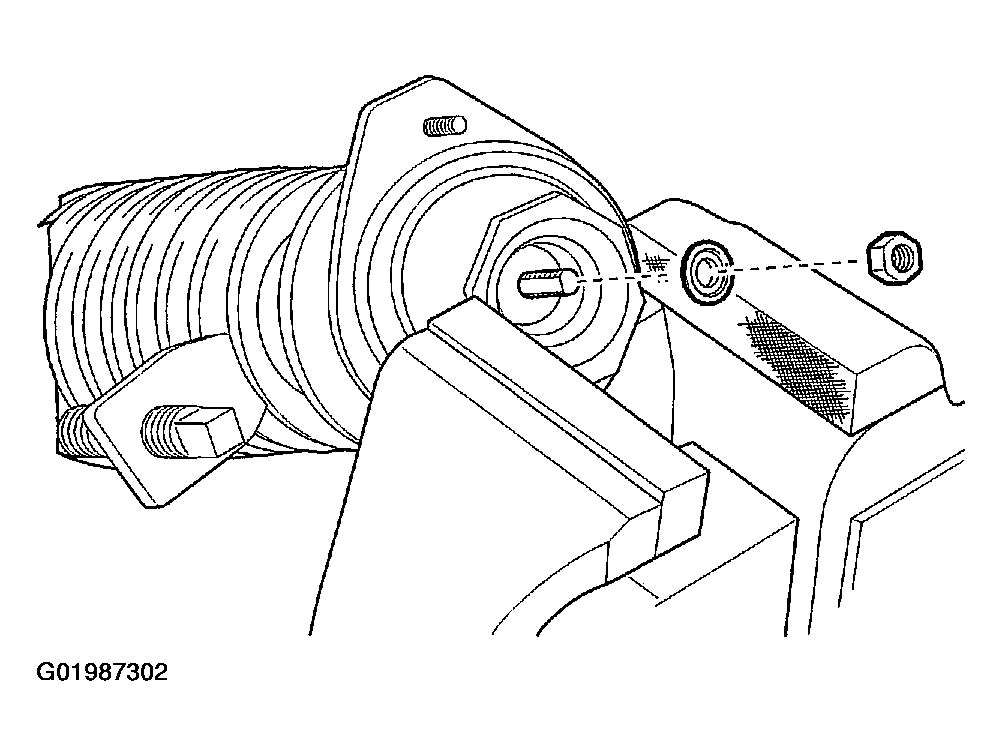

Fig 2: Removing Outer Tie Rod

Courtesy of SUZUKI OF AMERICA CORP.
