VIS Vacuum Tank Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the VIS vacuum tank.

    Tighten

    1. Tighten the VIS vacuum tank retaining bolts to 7-9 N.m (62-80 lb-in).

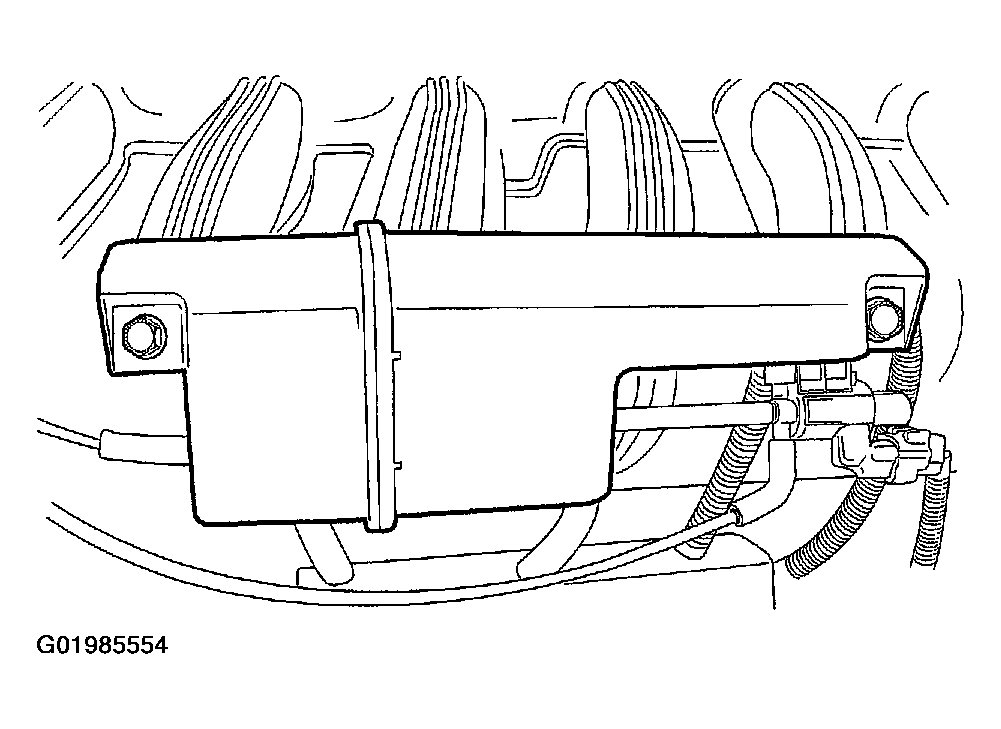

Fig 1: Installing VIS Vacuum Tank
G01985554Courtesy of SUZUKI OF AMERICA CORP.
