Fuel Tank Removal and Installation Removal: Removal

1. Relieve the fuel pressure.
2. Disconnect the negative battery cable.
3. Drain the fuel tank.
4. Remove the exhaust front muffler.
5. Remove the fuel tank shield.

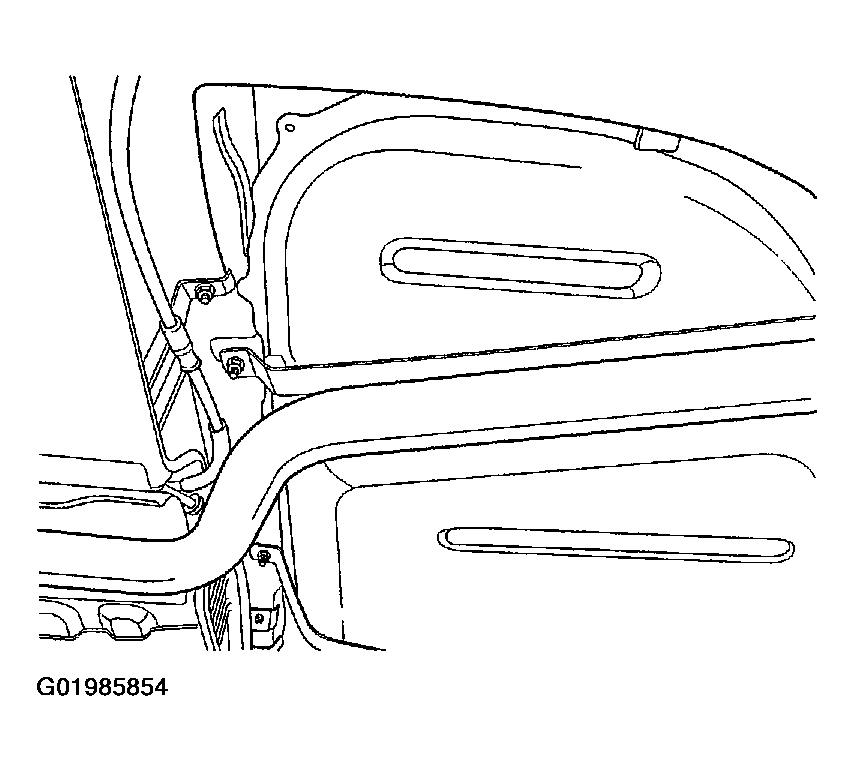

Fig 1: Removing Fuel Tank Shield
Courtesy of SUZUKI OF AMERICA CORP.
6. Support the fuel tank using a transmission jack.

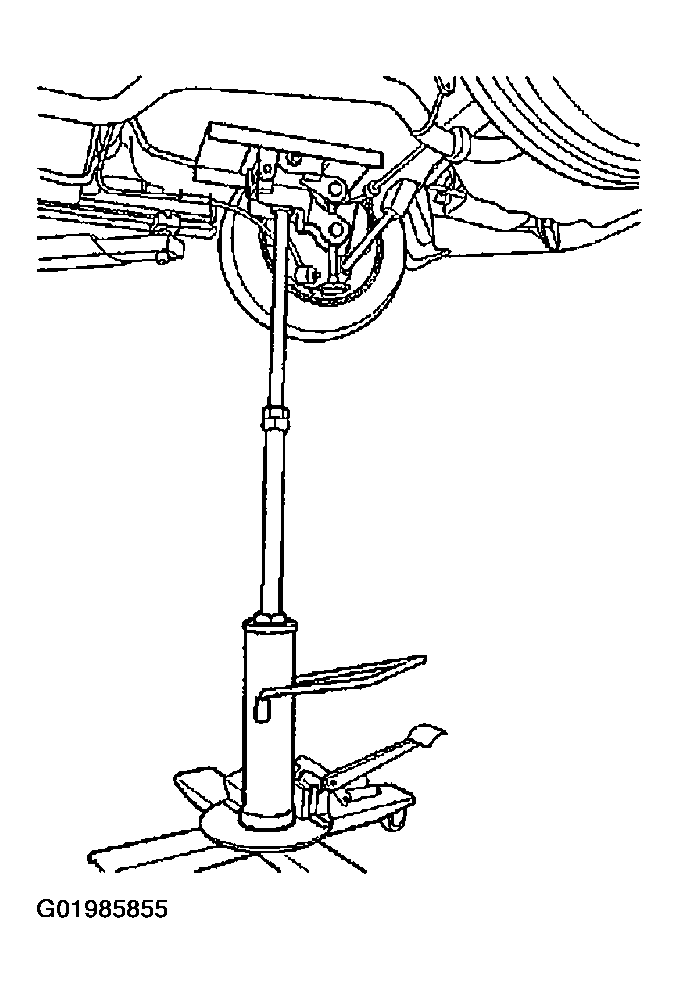

Fig 2: Supporting Fuel Tank Using Transmissing Jack
Courtesy of SUZUKI OF AMERICA CORP.
7. Remove two bands that hold the fuel tank.
8. Slightly and carefully lower the fuel tank until enough space for the fuel tank filler tube removal is achieved.
9. Pull the fuel tank filler tube release fully backward and disconnect the fuel tank filler tube.

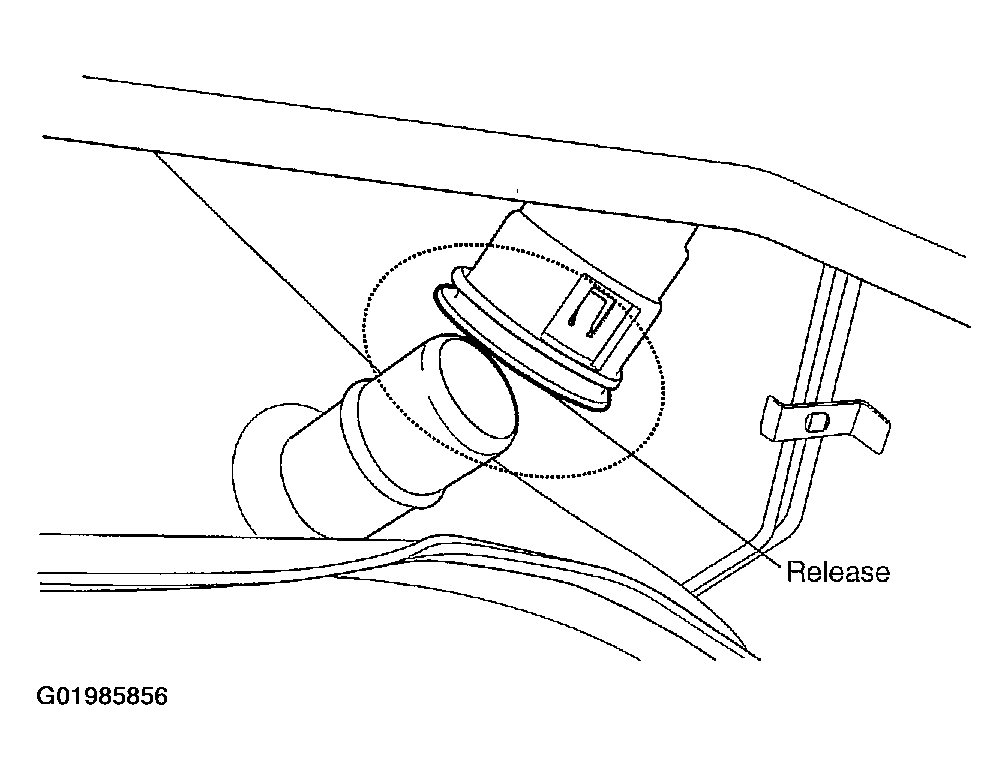

Fig 3: Disconnecting Fuel Tank Filler Tube
Courtesy of SUZUKI OF AMERICA CORP.
10. Disconnect the fuel inlet line.

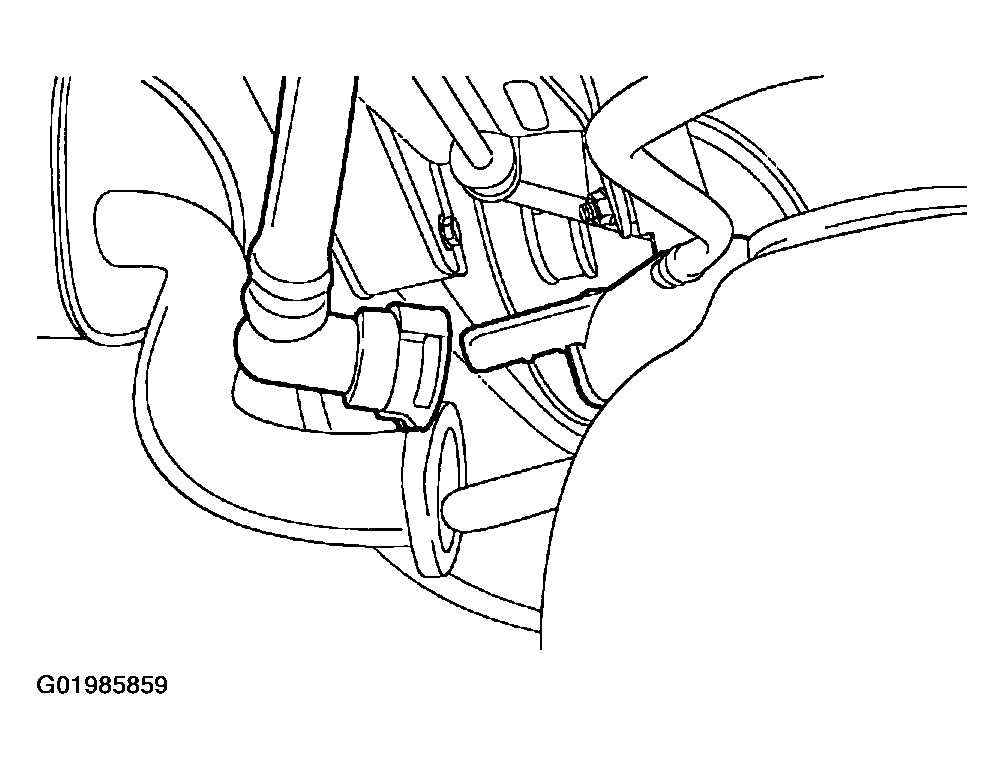

Fig 4: Disconnecting Fuel Inlet Line
Courtesy of SUZUKI OF AMERICA CORP.
11. Disconnect the fuel return line.

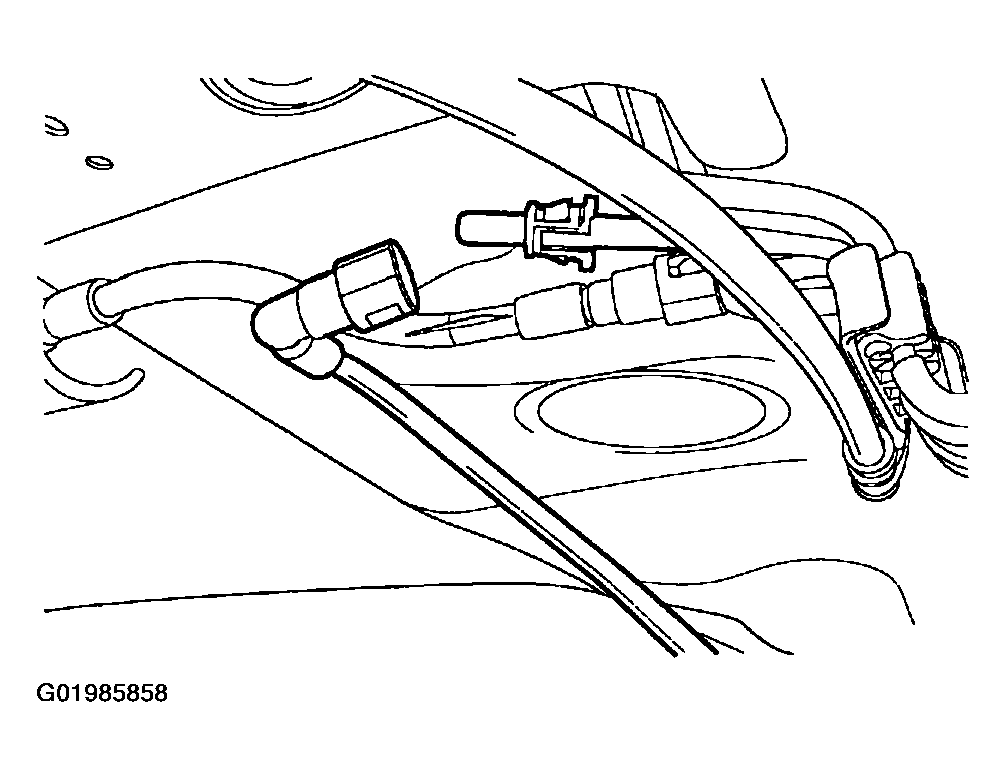

Fig 5: Disconnecting Fuel Return Line
Courtesy of SUZUKI OF AMERICA CORP.
12. Disconnect the EVAP vent hose.
13. Disconnect the fuel pump harness connectors.
14. Remove the fuel tank.

Fig 6: Removing Fuel Tank

Courtesy of SUZUKI OF AMERICA CORP.
