Fuel Pressure Relief Procedure

  1. Remove the fuel cap.
  2. Remove the fuel pump fuse from the engine fuse box.
  3. Start the engine and allow the engine to stall.
  4. Crank the engine for an additional 10 seconds.

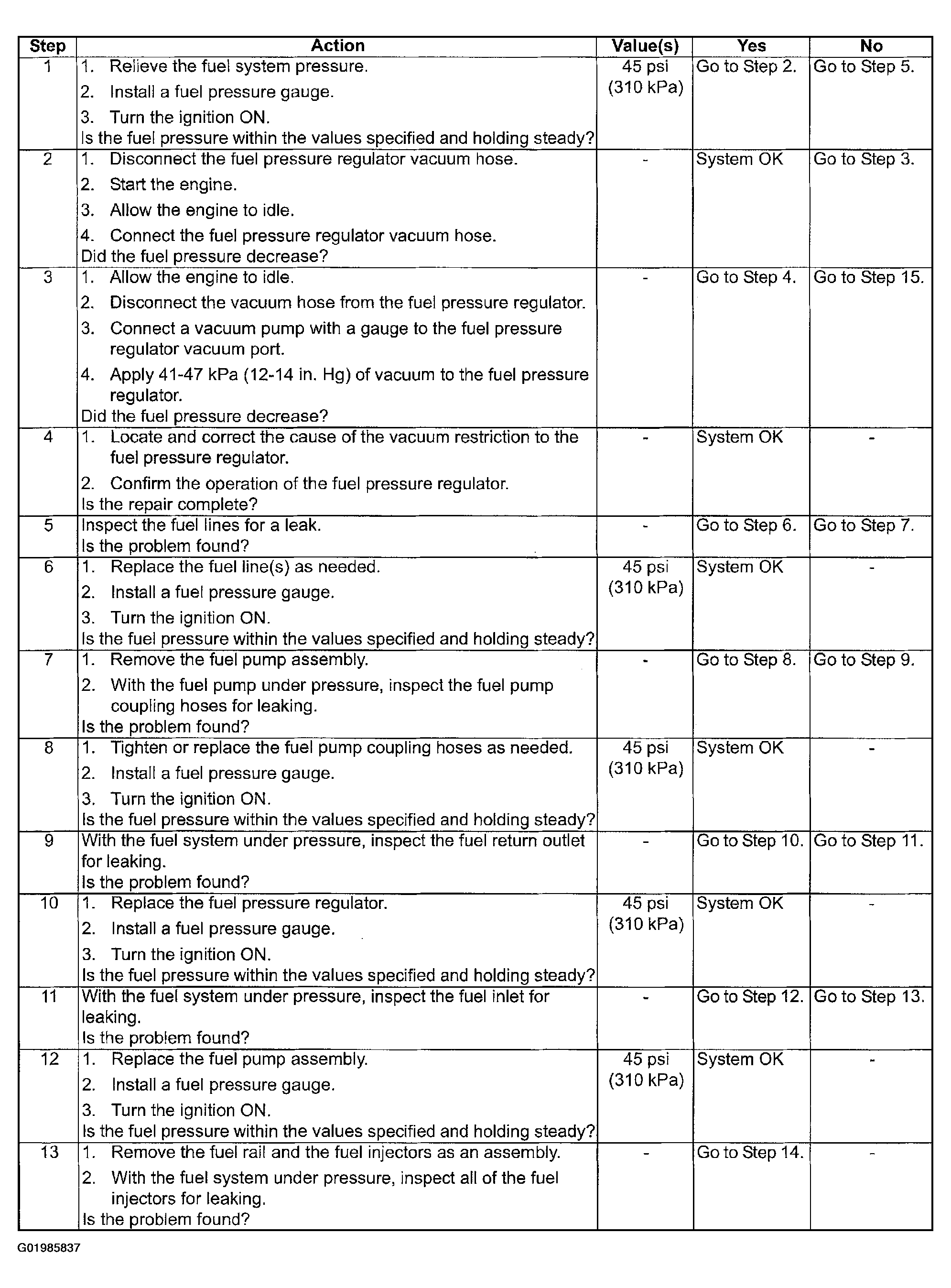

Fig 1: Fuel System Diagnosis Chart (1 Of 2)
G01985837Courtesy of SUZUKI OF AMERICA CORP.

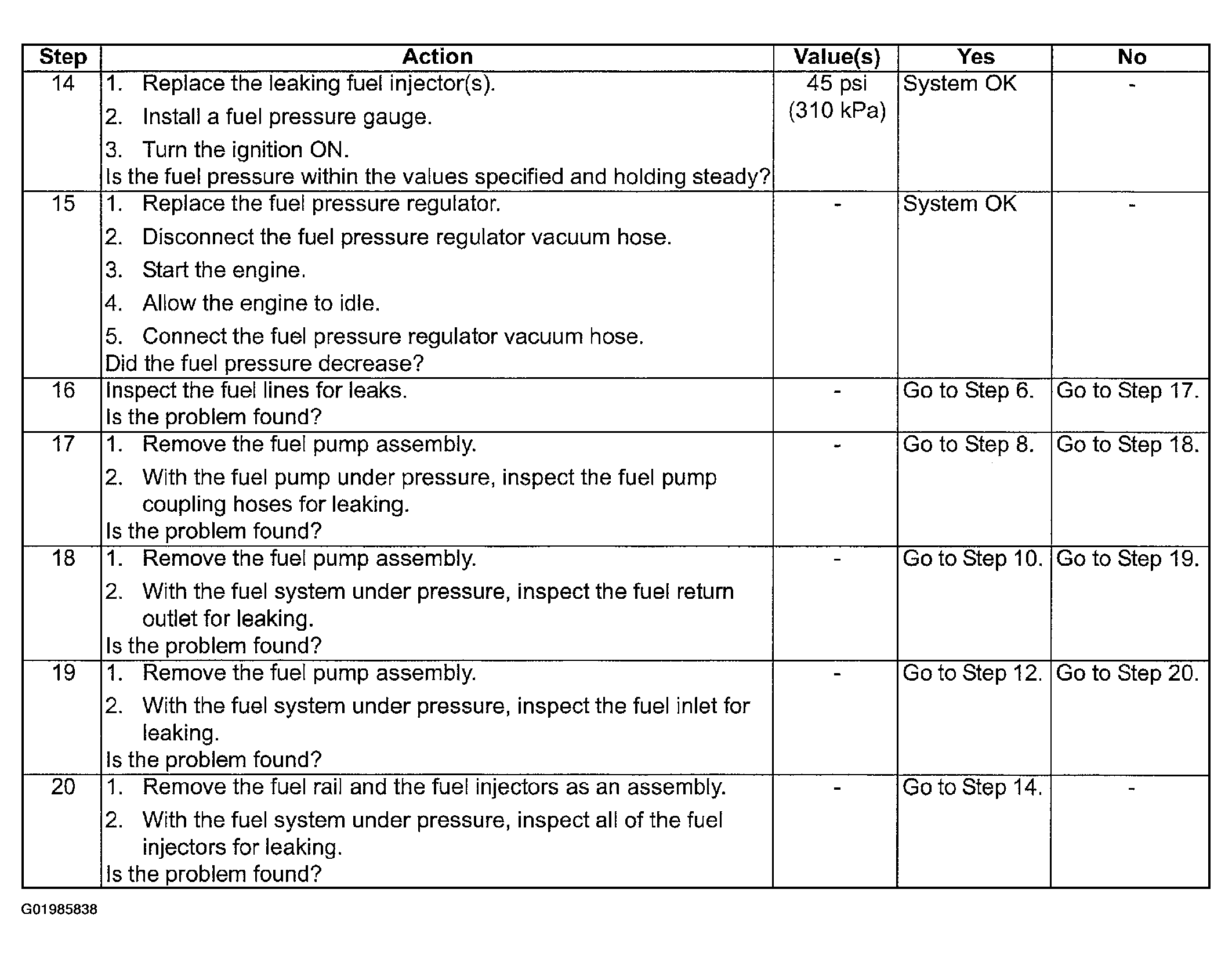

Fig 2: Fuel System Diagnosis Chart (2 Of 2)
G01985838Courtesy of SUZUKI OF AMERICA CORP.
