ECM Wiring Diagram

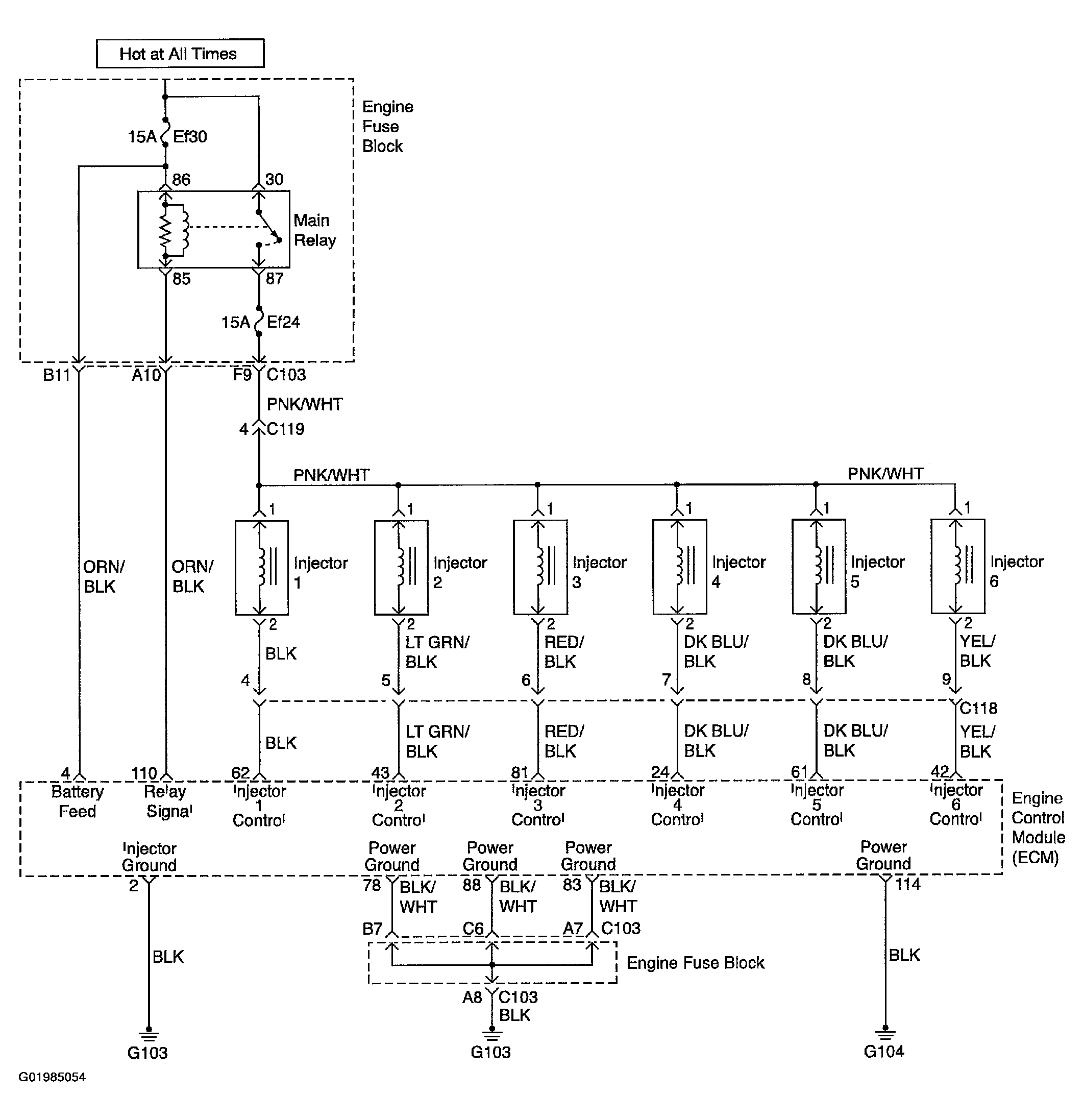

Fig 1: ECM Wiring Diagram (1 Of 7)

G01985054

Courtesy of SUZUKI OF AMERICA CORP.

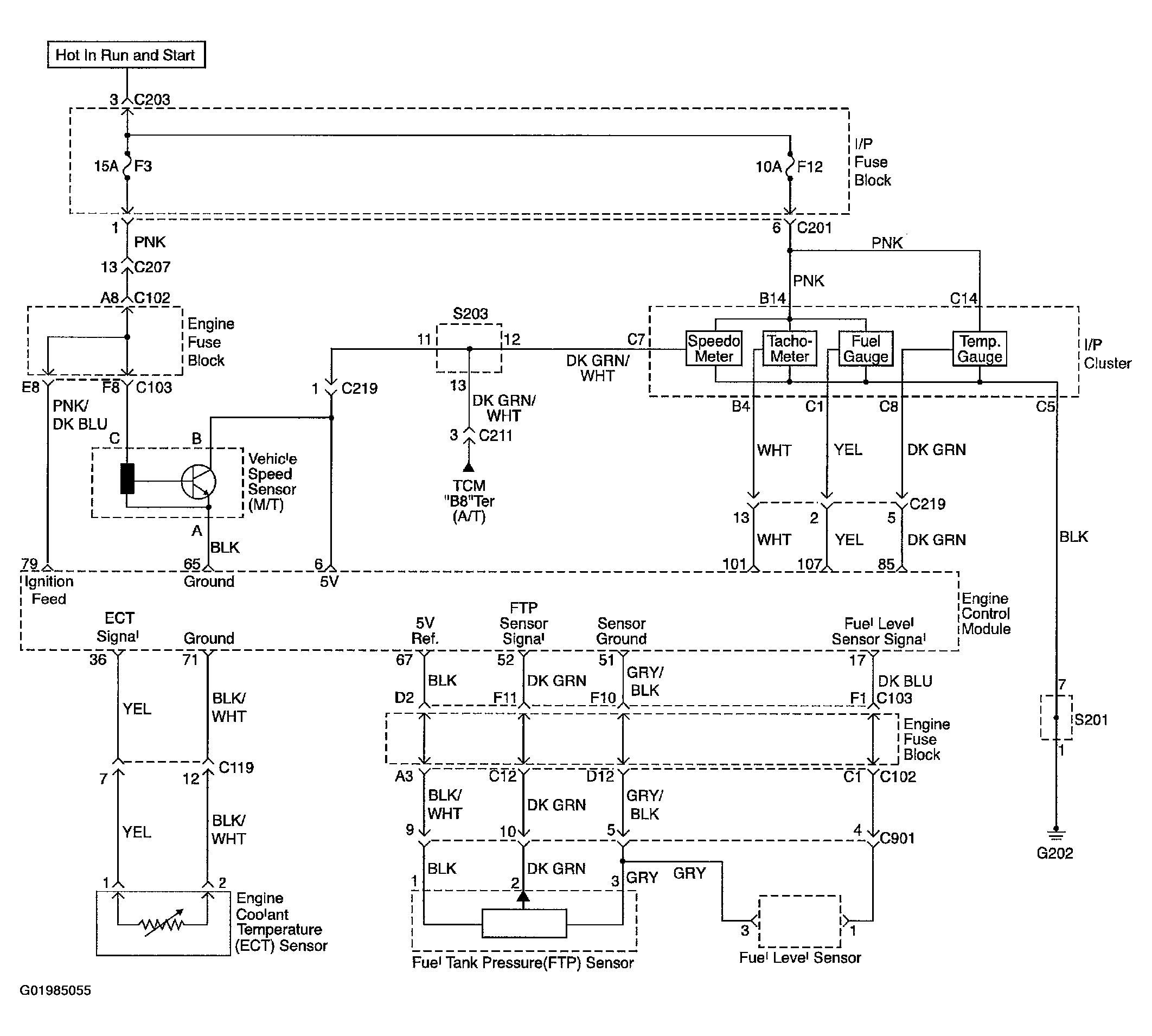

Fig 2: ECM Wiring Diagram (2 Of 7)

G01985055

Courtesy of SUZUKI OF AMERICA CORP.

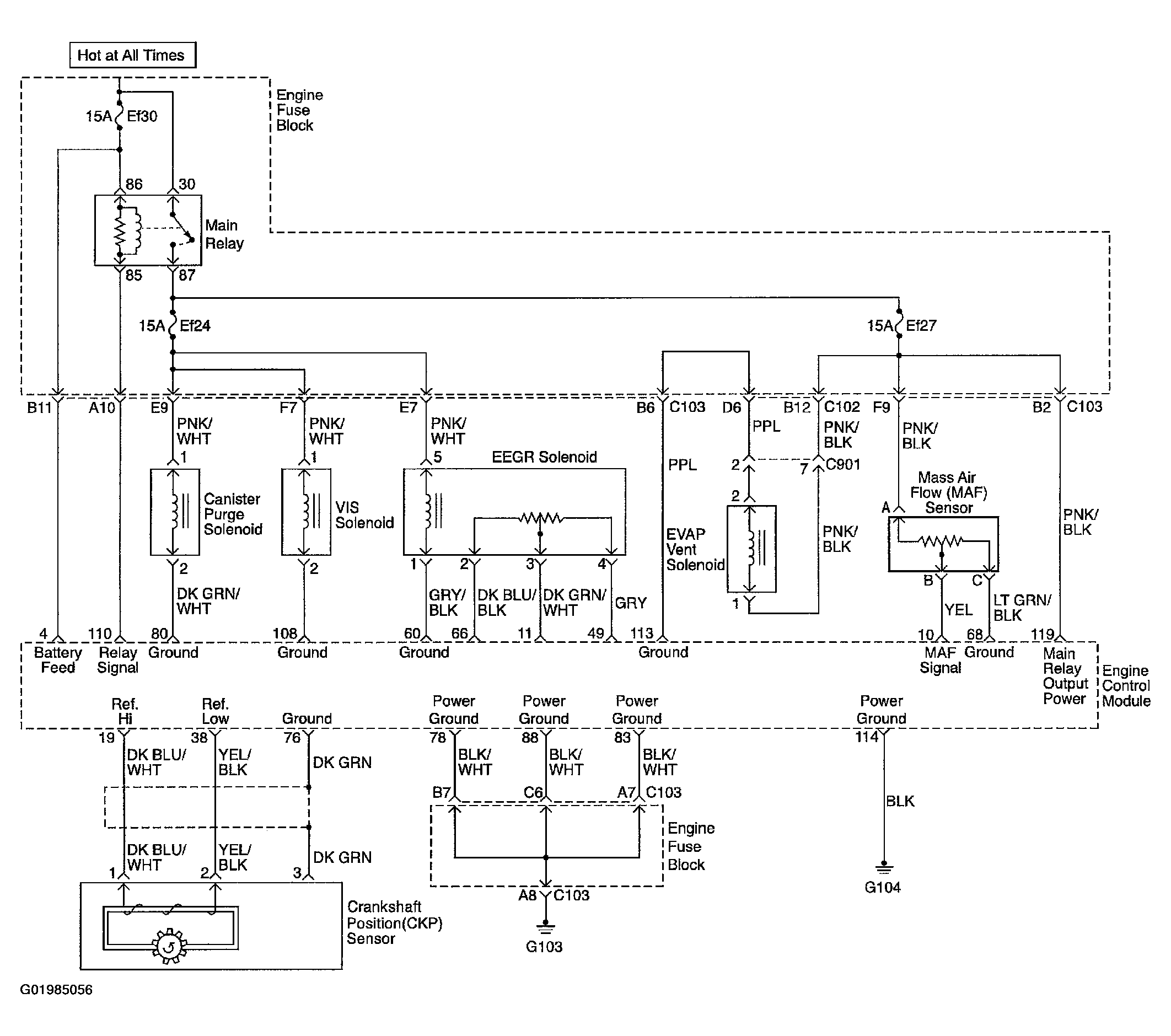

Fig 3: ECM Wiring Diagram (3 Of 7)

G01985056

Courtesy of SUZUKI OF AMERICA CORP.

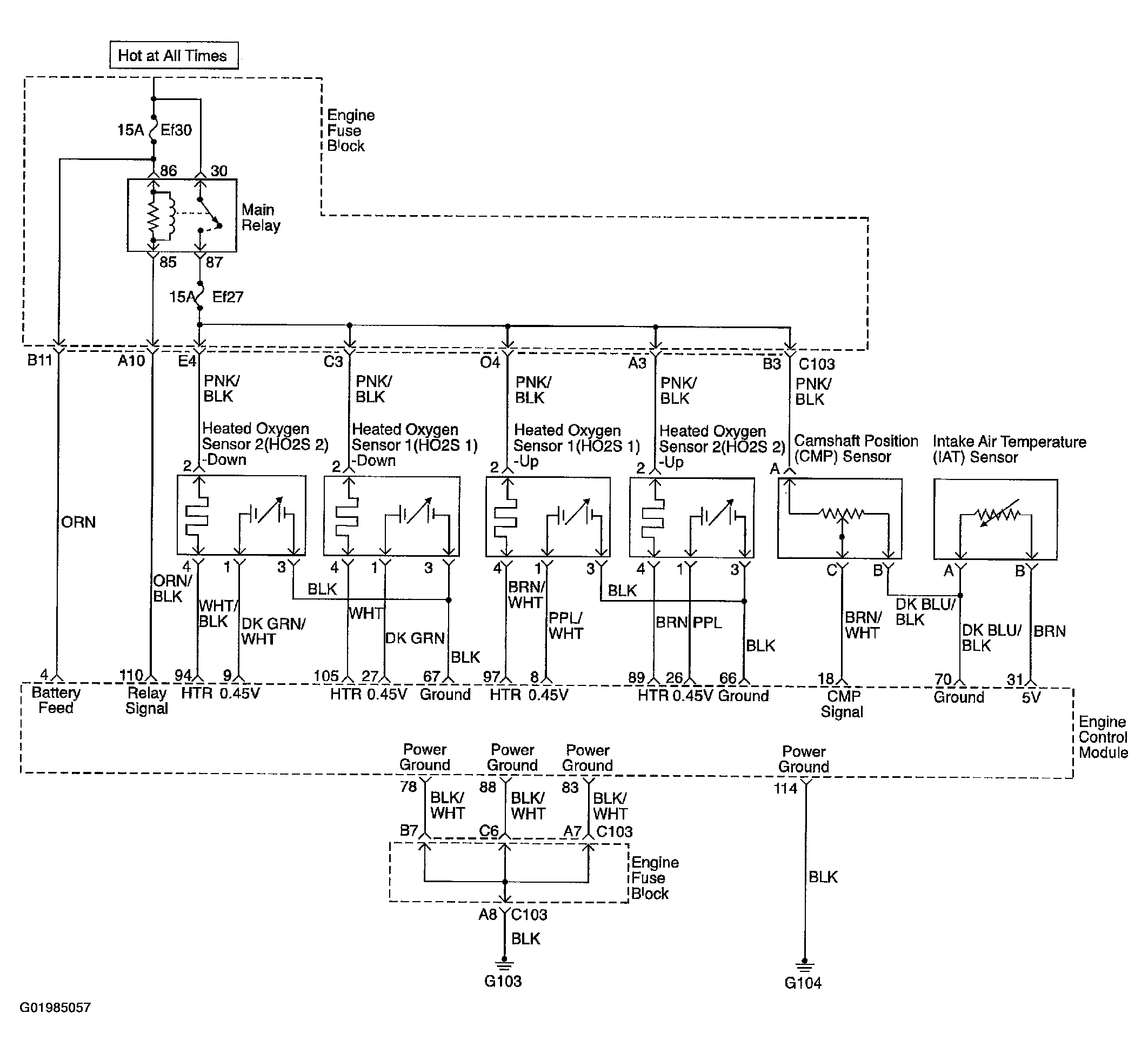

Fig 4: ECM Wiring Diagram (4 Of 7)

G01985057

Courtesy of SUZUKI OF AMERICA CORP.

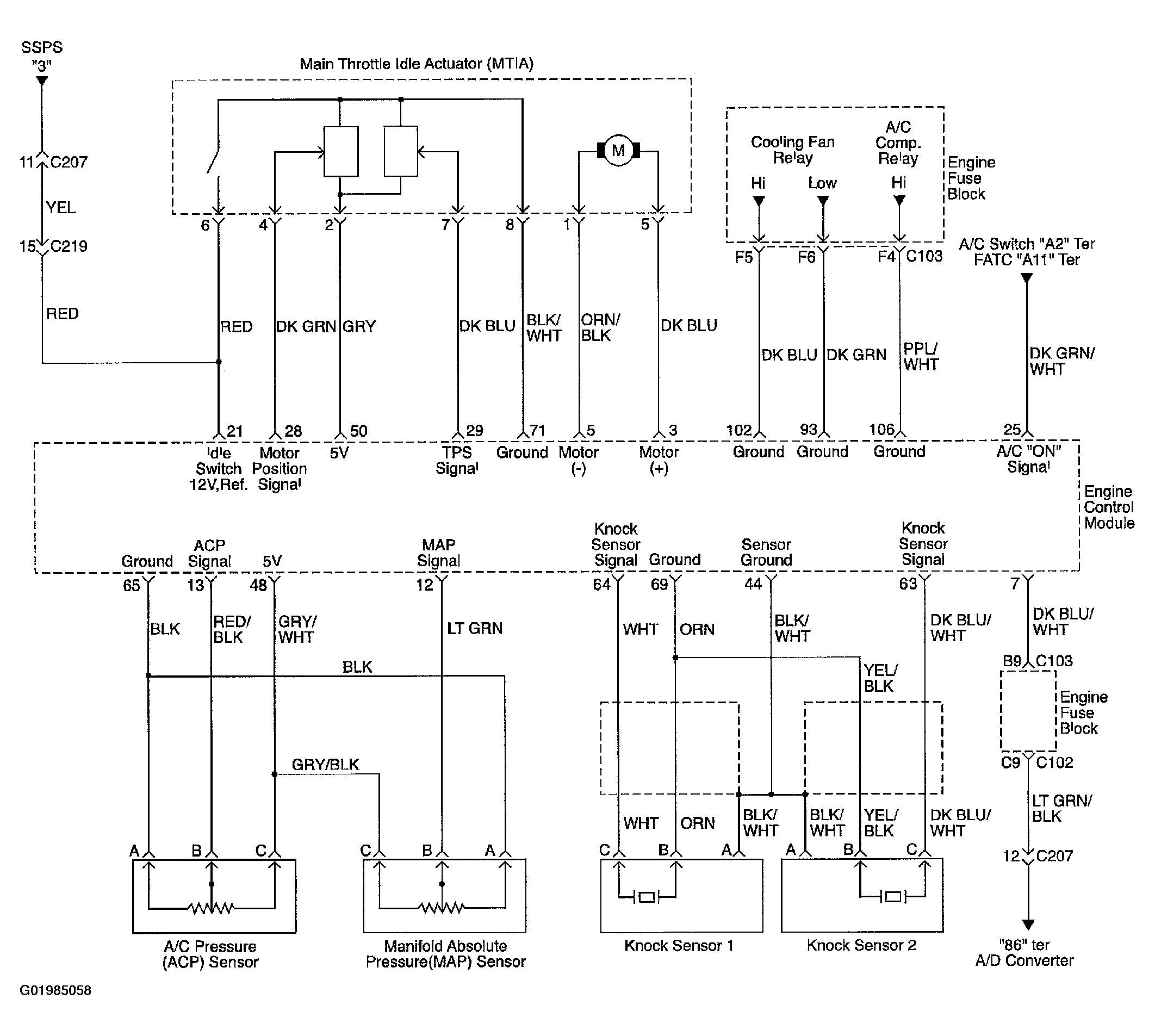

Fig 5: ECM Wiring Diagram (5 Of 7)

G01985058

Courtesy of SUZUKI OF AMERICA CORP.

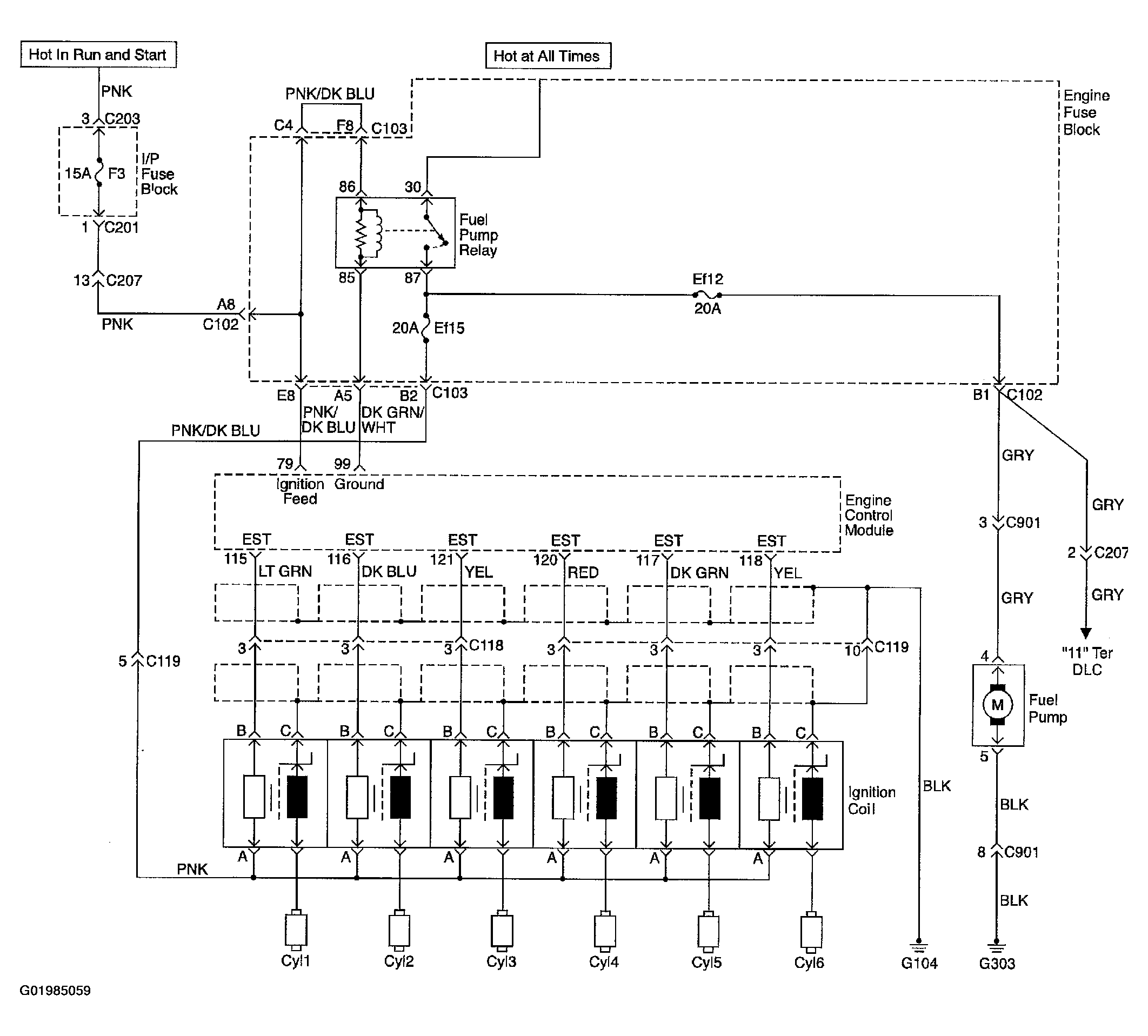

Fig 6: ECM Wiring Diagram (6 Of 7)

G01985059

Courtesy of SUZUKI OF AMERICA CORP.

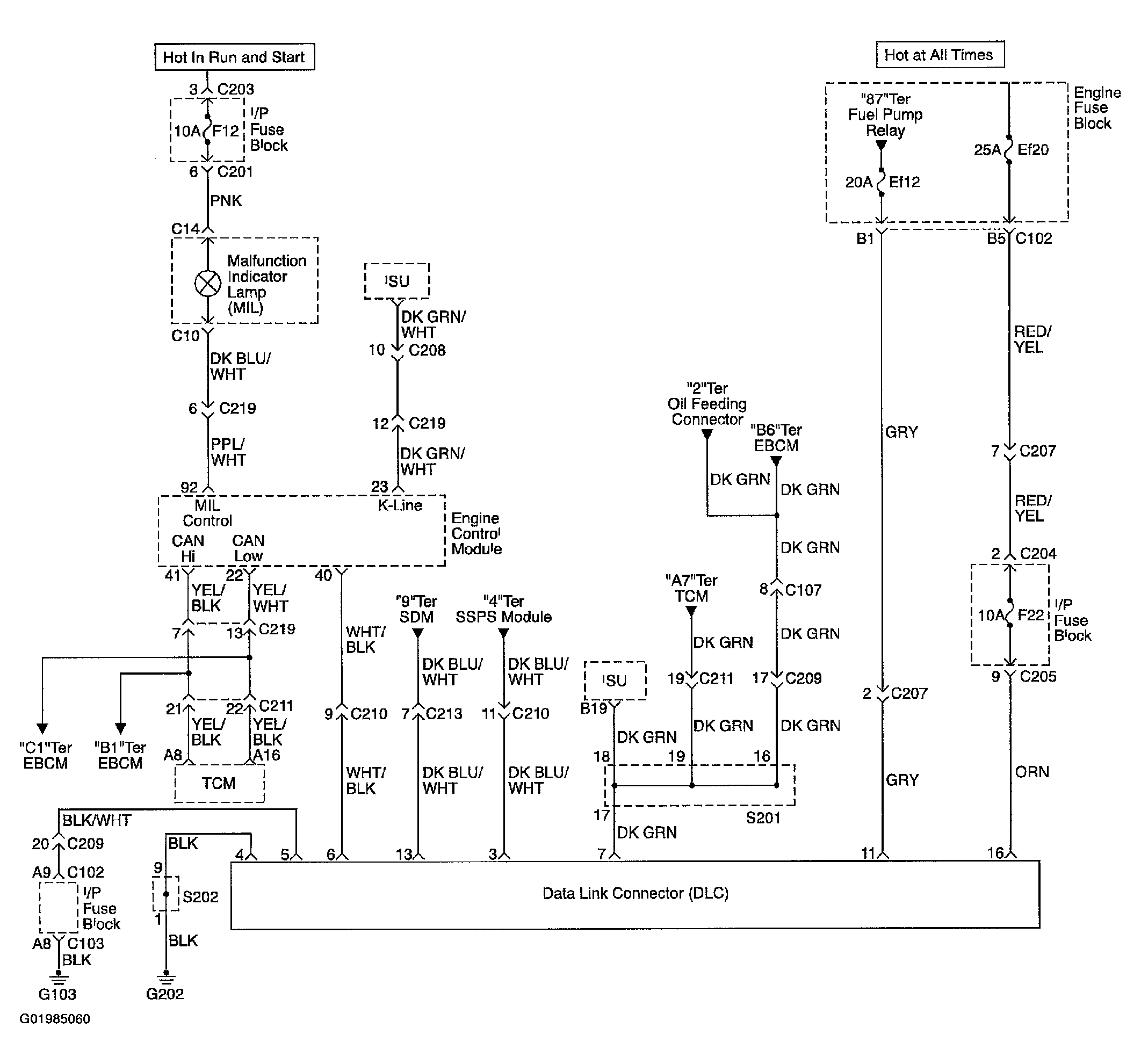

Fig 7: ECM Wiring Diagram (7 Of 7)

G01985060

Courtesy of SUZUKI OF AMERICA CORP.
