Connector End View Diagram

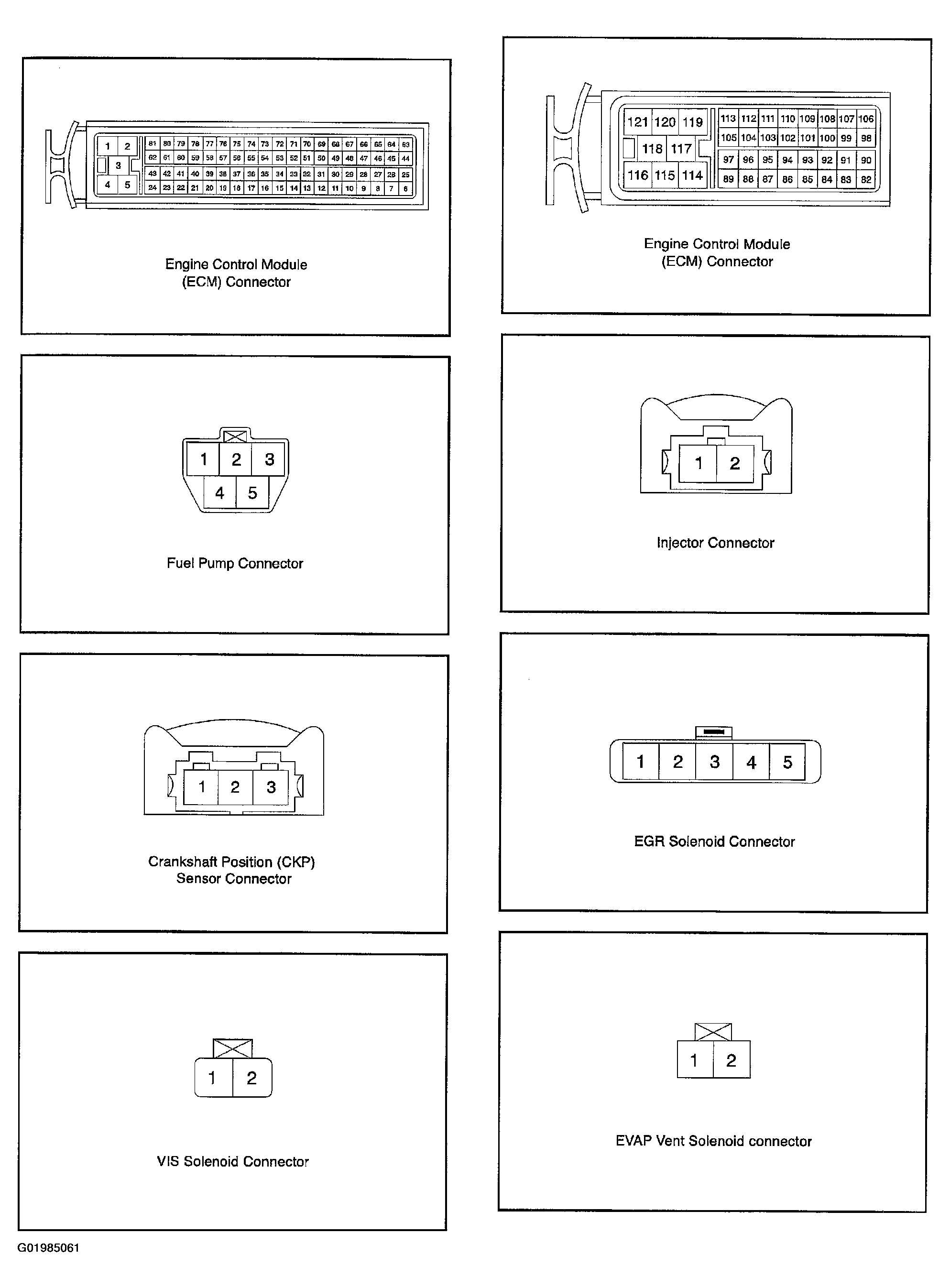

Fig 1: Connector End View Diagram (1 Of 2)
G01985061Courtesy of SUZUKI OF AMERICA CORP.

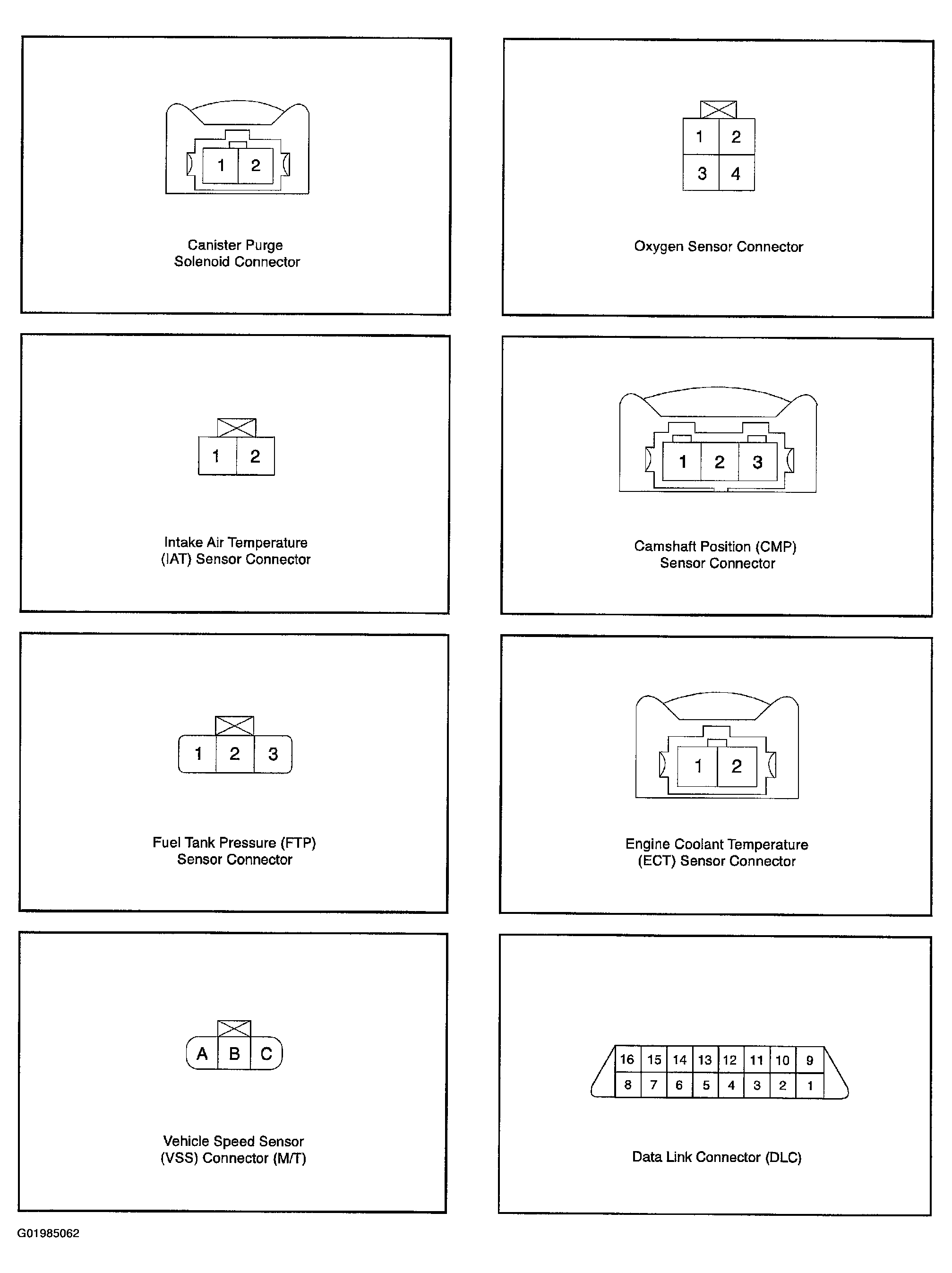

Fig 2: Connector End View Diagram (2 Of 2)
G01985062Courtesy of SUZUKI OF AMERICA CORP.
