Malfunction Indicator Lamp On Steady: Notes

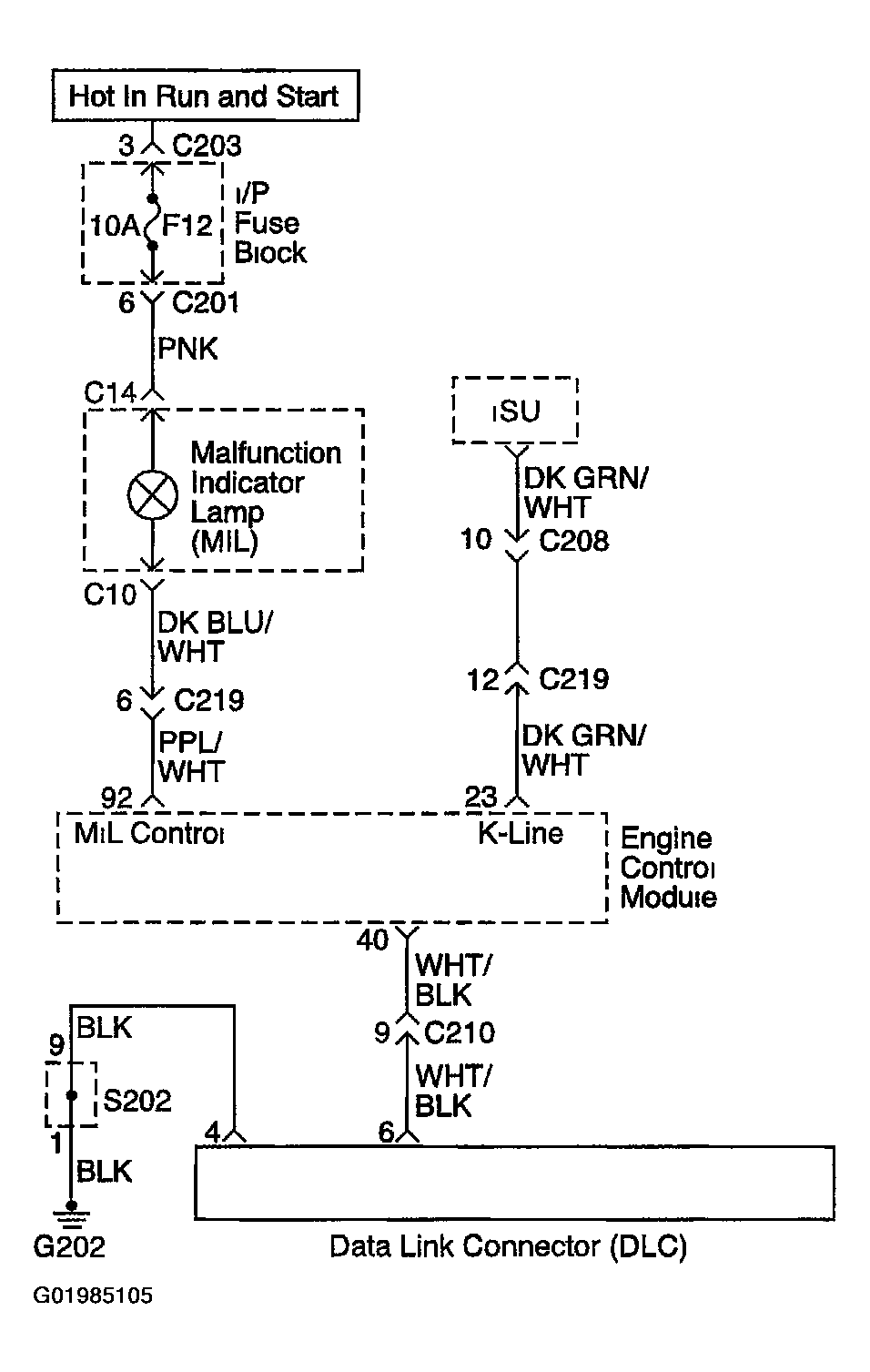

Fig 1: Malfunction Indicator Lamp ON Steady - System Wiring Diagram
G01985105Courtesy of SUZUKI OF AMERICA CORP.
