Diagnostic Information and Procedures: Intermittents: Definition

The problem may or may not illuminate the Malfunction Indicator Lamp (MIL) or store a DTC.

CAUTION: Do not use the DTC tables for intermittent problems. A fault must be present in order to locate the problem. If a fault is intermittent, use of Diagnostic Trouble Code tables may result in the replacement of good parts.

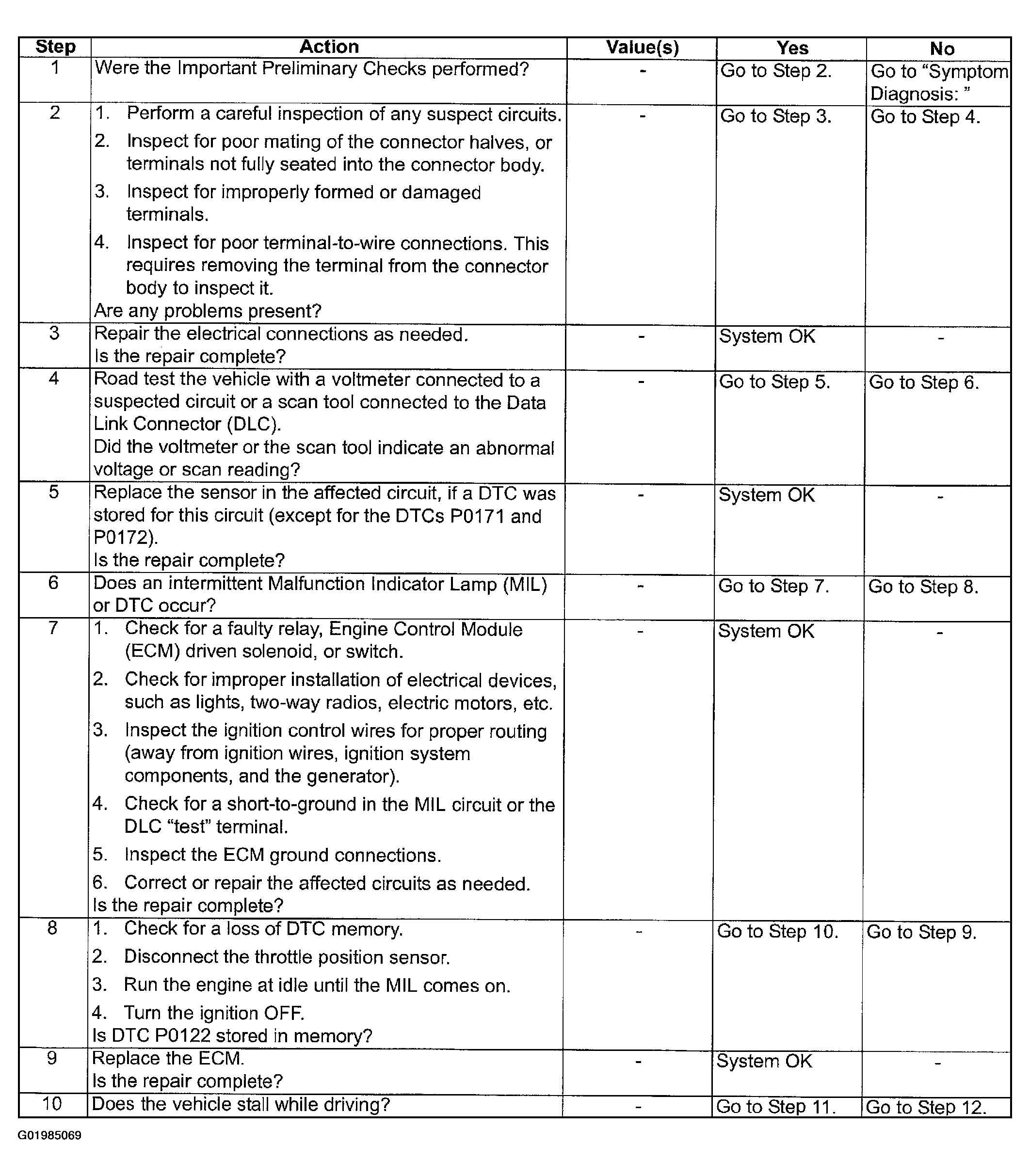

Fig 1: Intermittents Diagnostic Chart (1 Of 2)
G01985069Courtesy of SUZUKI OF AMERICA CORP.

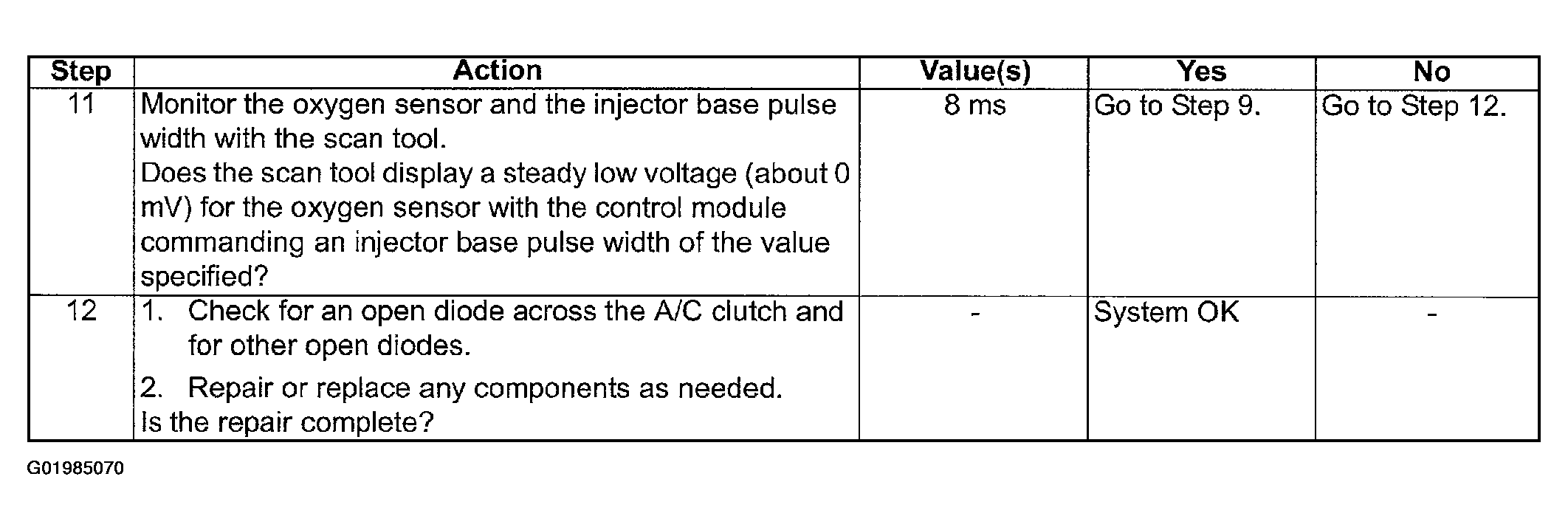

Fig 2: Intermittents Diagnostic Chart (2 Of 2)
G01985070Courtesy of SUZUKI OF AMERICA CORP.
