Hard Start: Definition

The engine cranks OK, but does not start for a long time. The engine eventually runs or may start and immediately die.

CAUTION: Ensure that the driver is using the correct starting procedure. Before diagnosing, check service bulletins for updates.

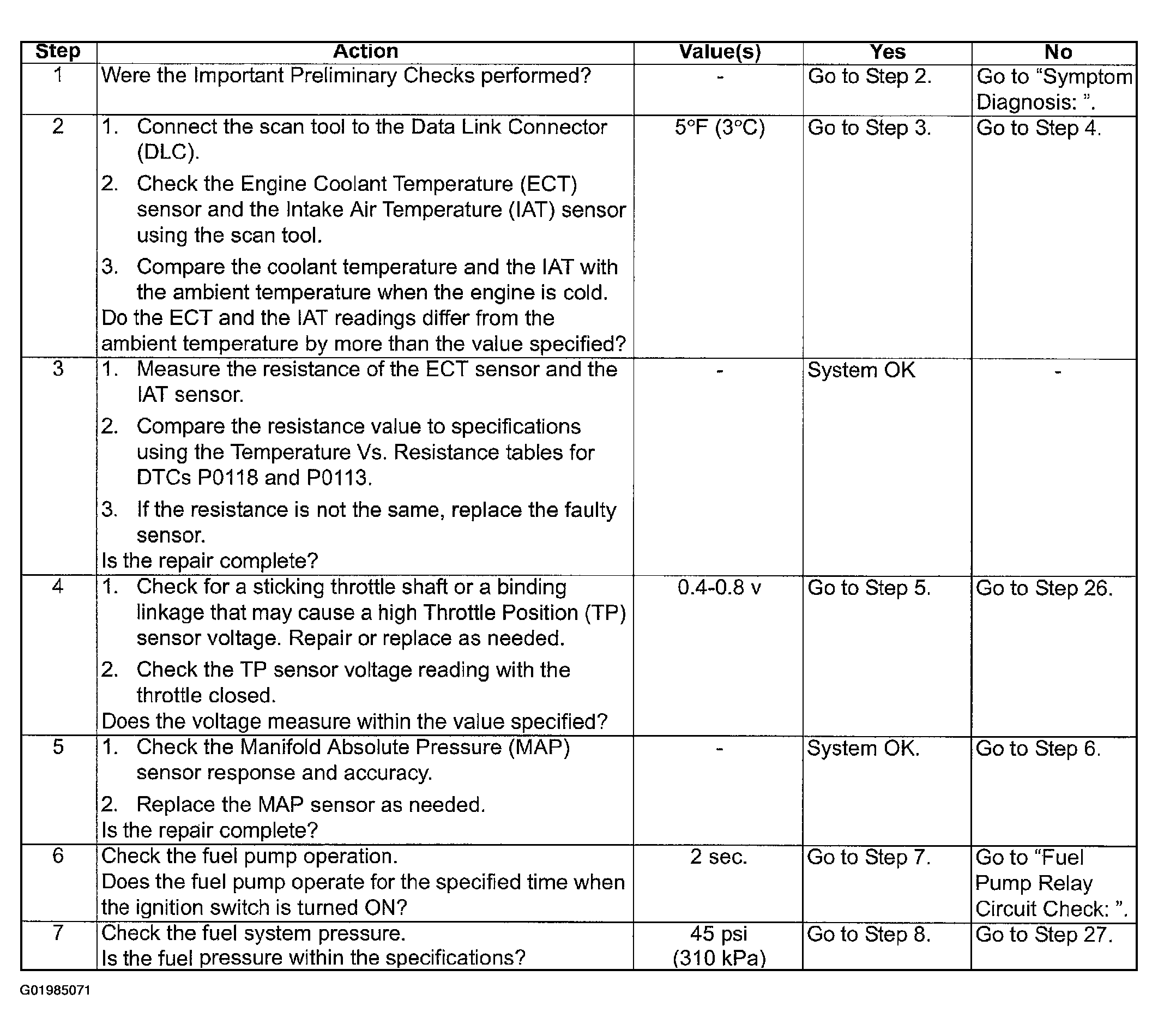

Fig 1: Hard Start Diagnostic Chart (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

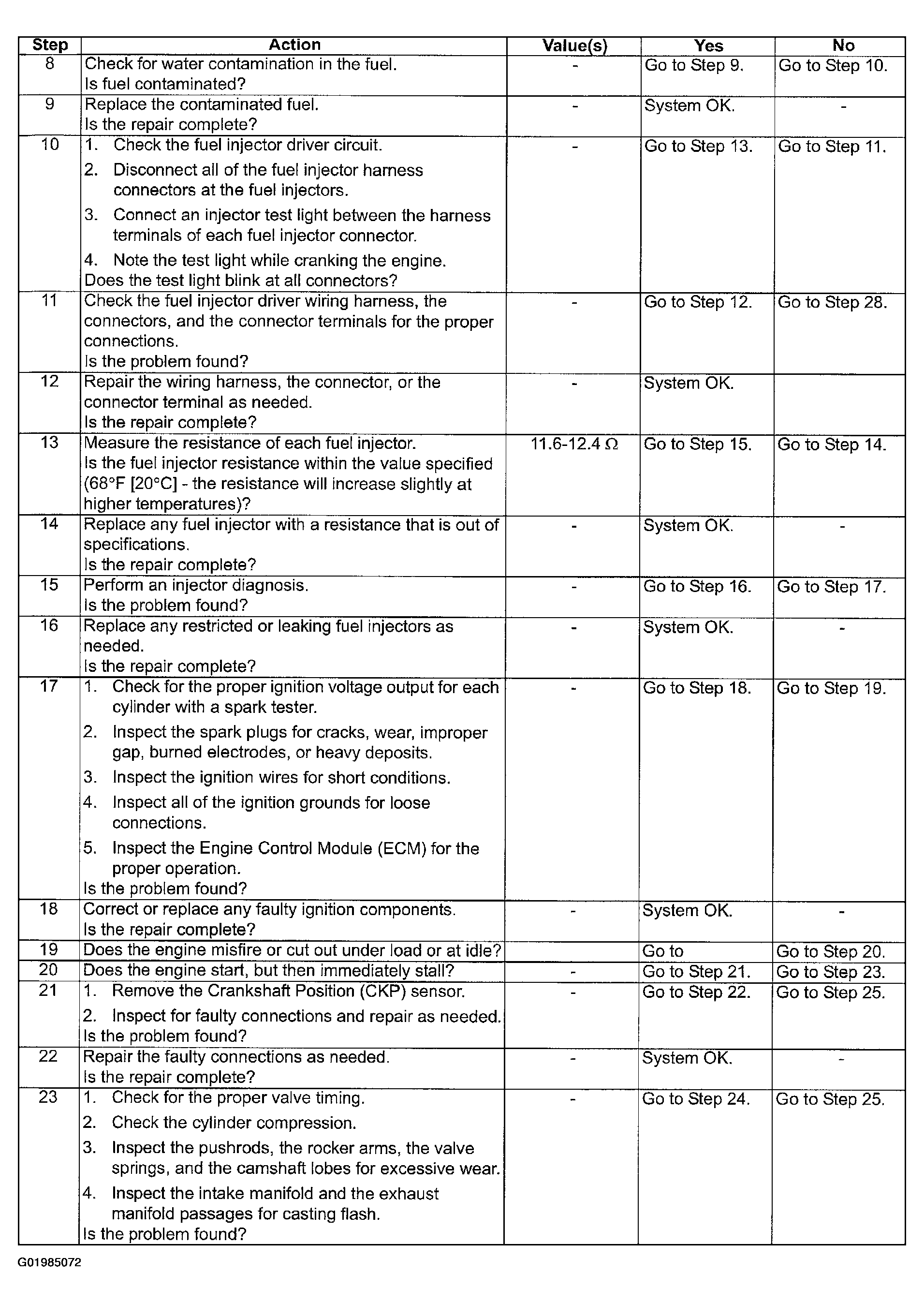

Fig 2: Hard Start Diagnostic Chart (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

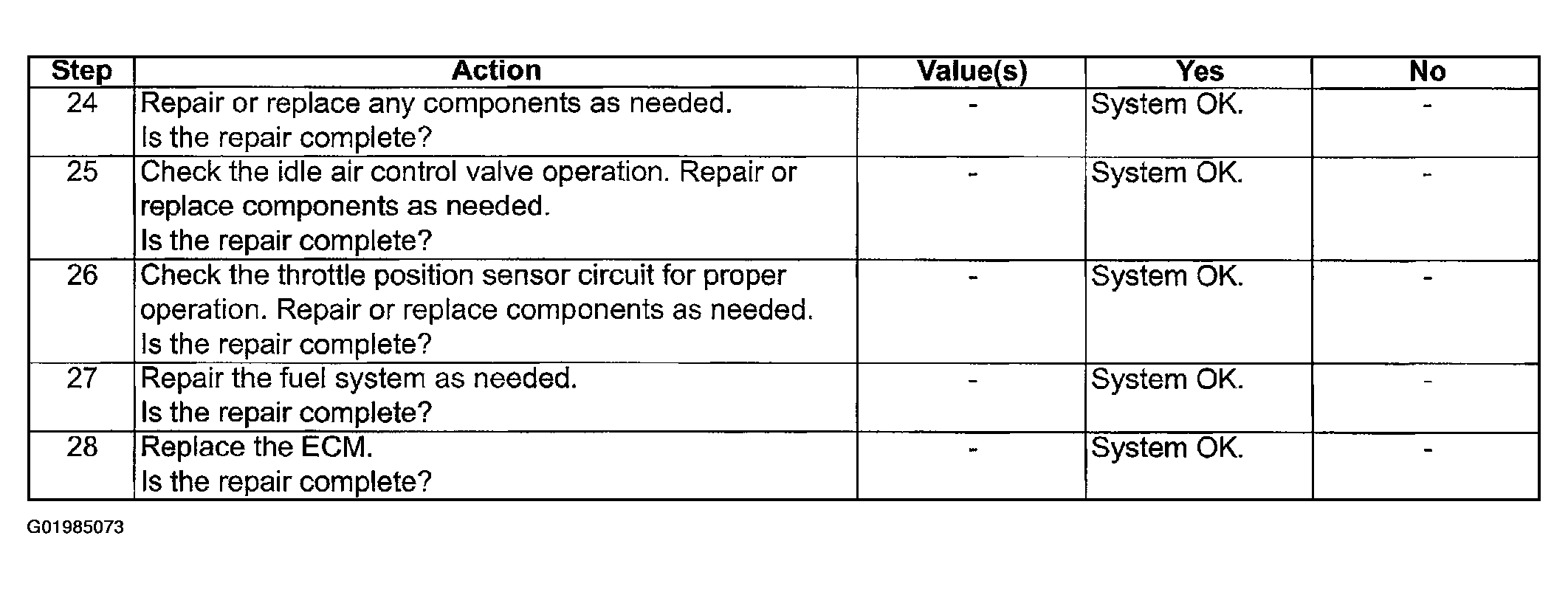

Fig 3: Hard Start Diagnostic Chart (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
