Diagnostic Aids

An intermittent problem may be caused by a poor connection, rubbed through wire insulation, or a broken wire inside the insulation.

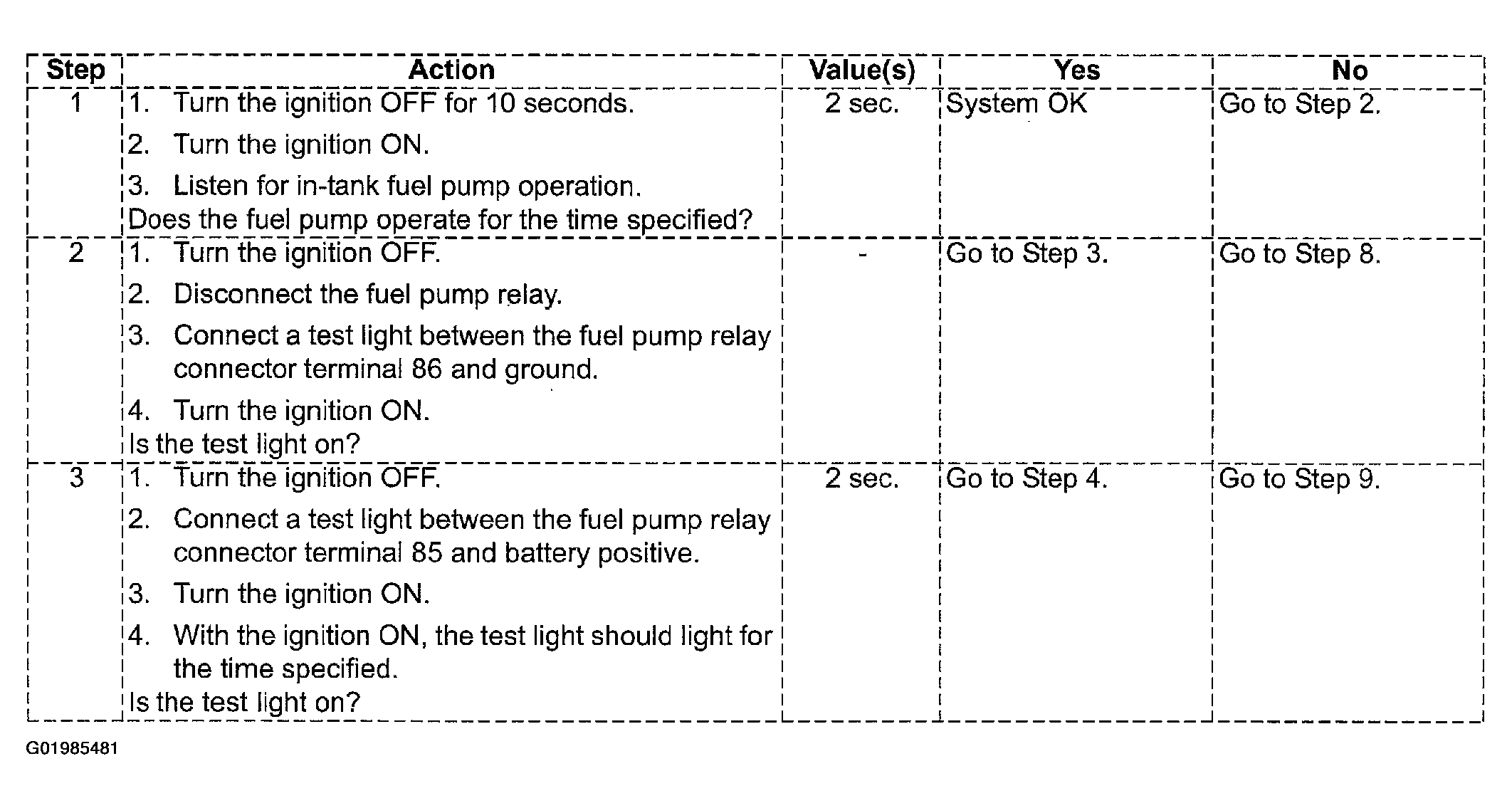

Fig 1: Fuel Pump Relay Circuit Check Diagnostic Chart Diagnostic Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

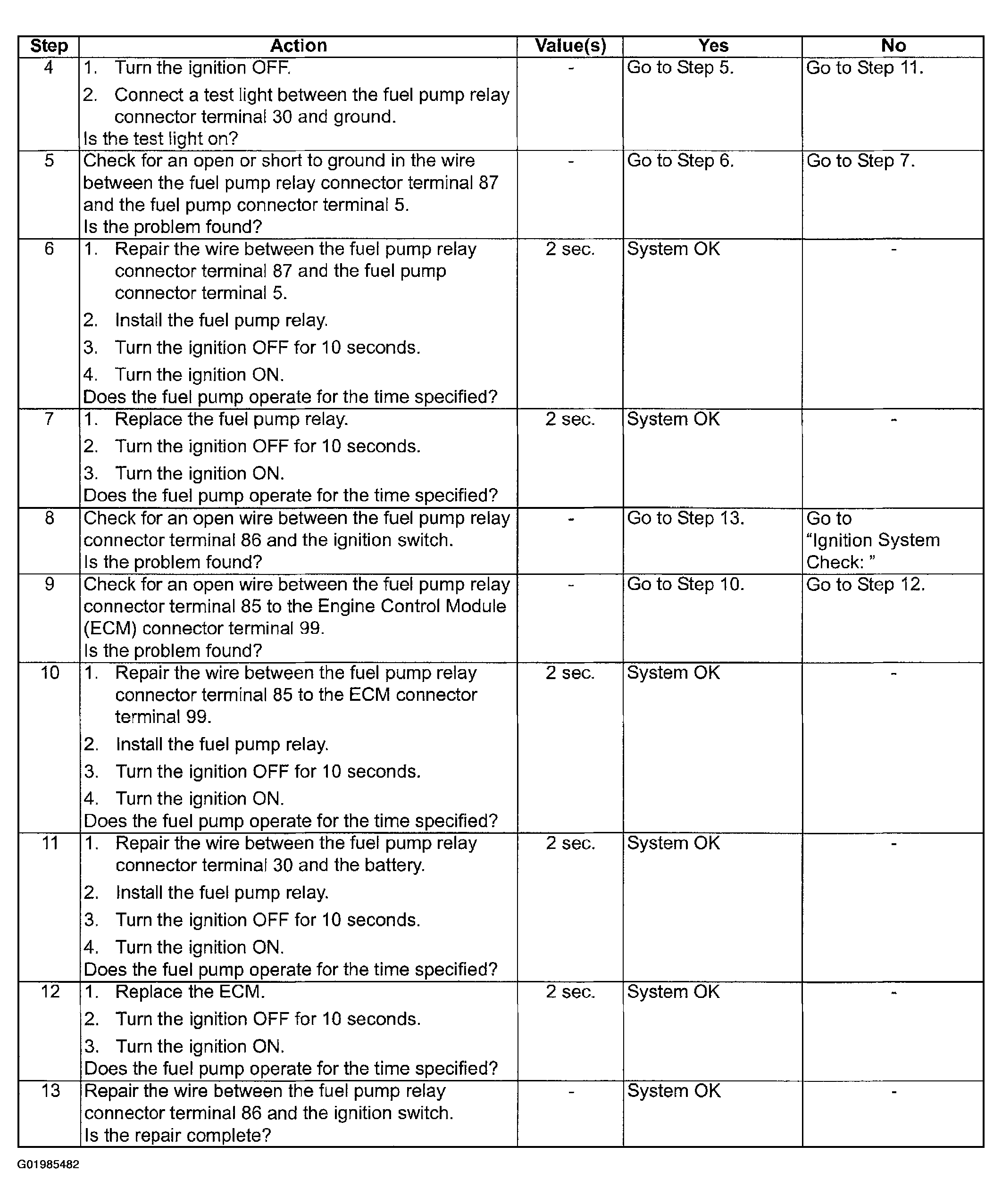

Fig 2: Fuel Pump Relay Circuit Check Diagnostic Chart Diagnostic Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
