Engine Cranks But Will Not Run

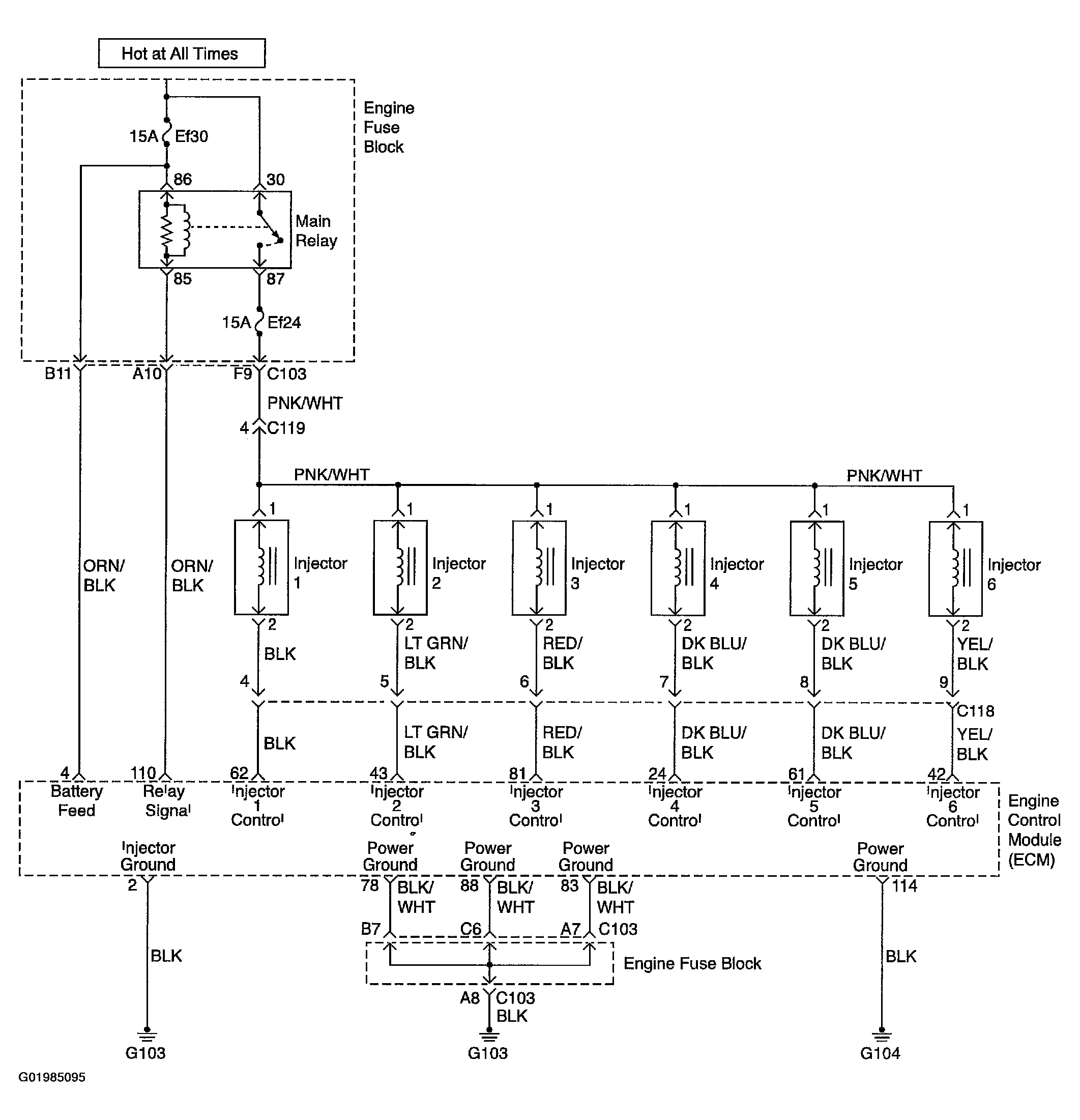

Fig 1: Engine Cranks But Will Not Run - System Wiring Diagram (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

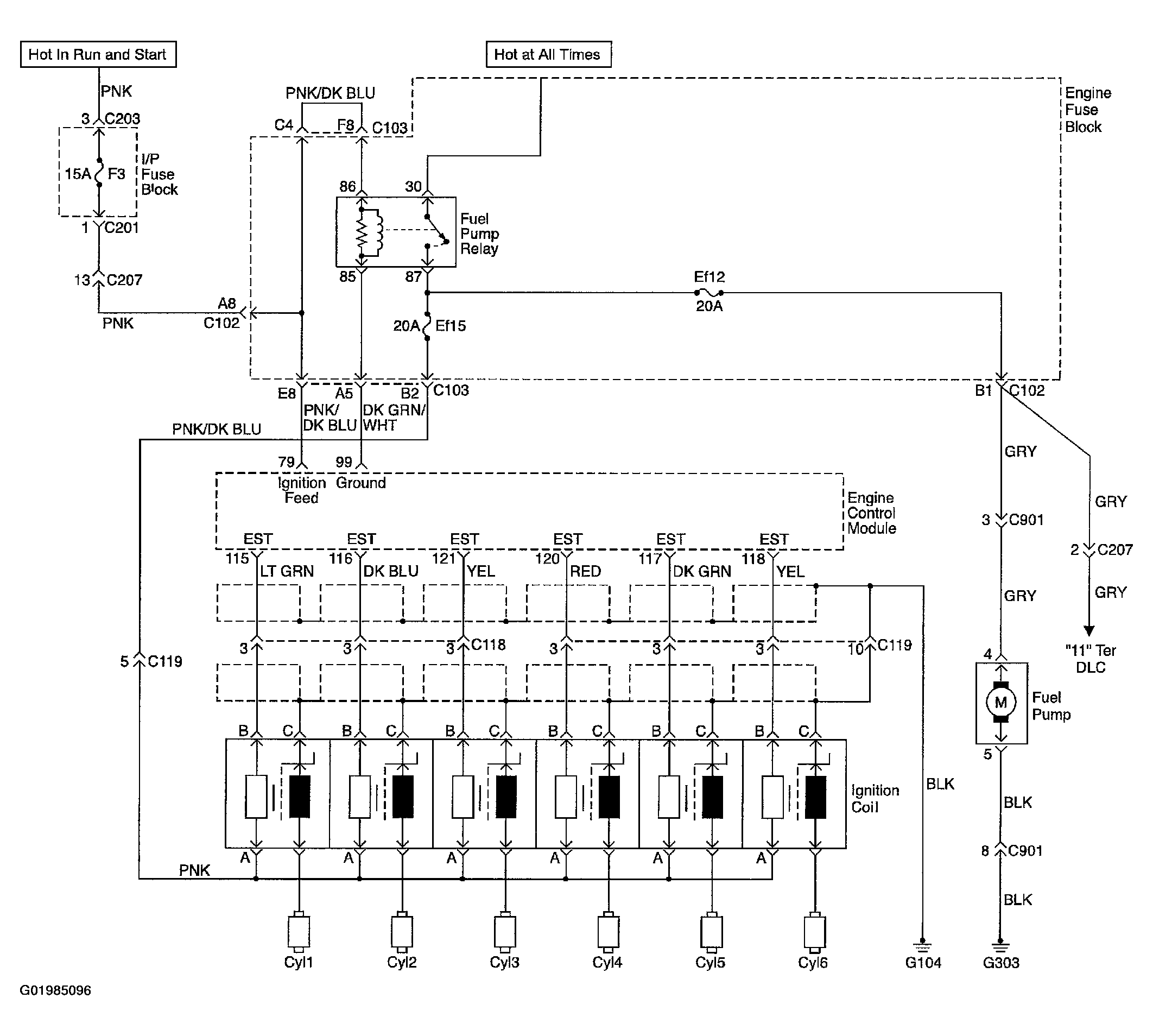

Fig 2: Engine Cranks But Will Not Run - System Wiring Diagram (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

WARNING: Do not pinch or restrict nylon fuel lines. Damage to the lines could cause a fuel leak, resulting in possible fire or personal injury.

CAUTION: Use only electrically insulated pliers when handling ignition wires with the engine running to prevent an electrical shock.

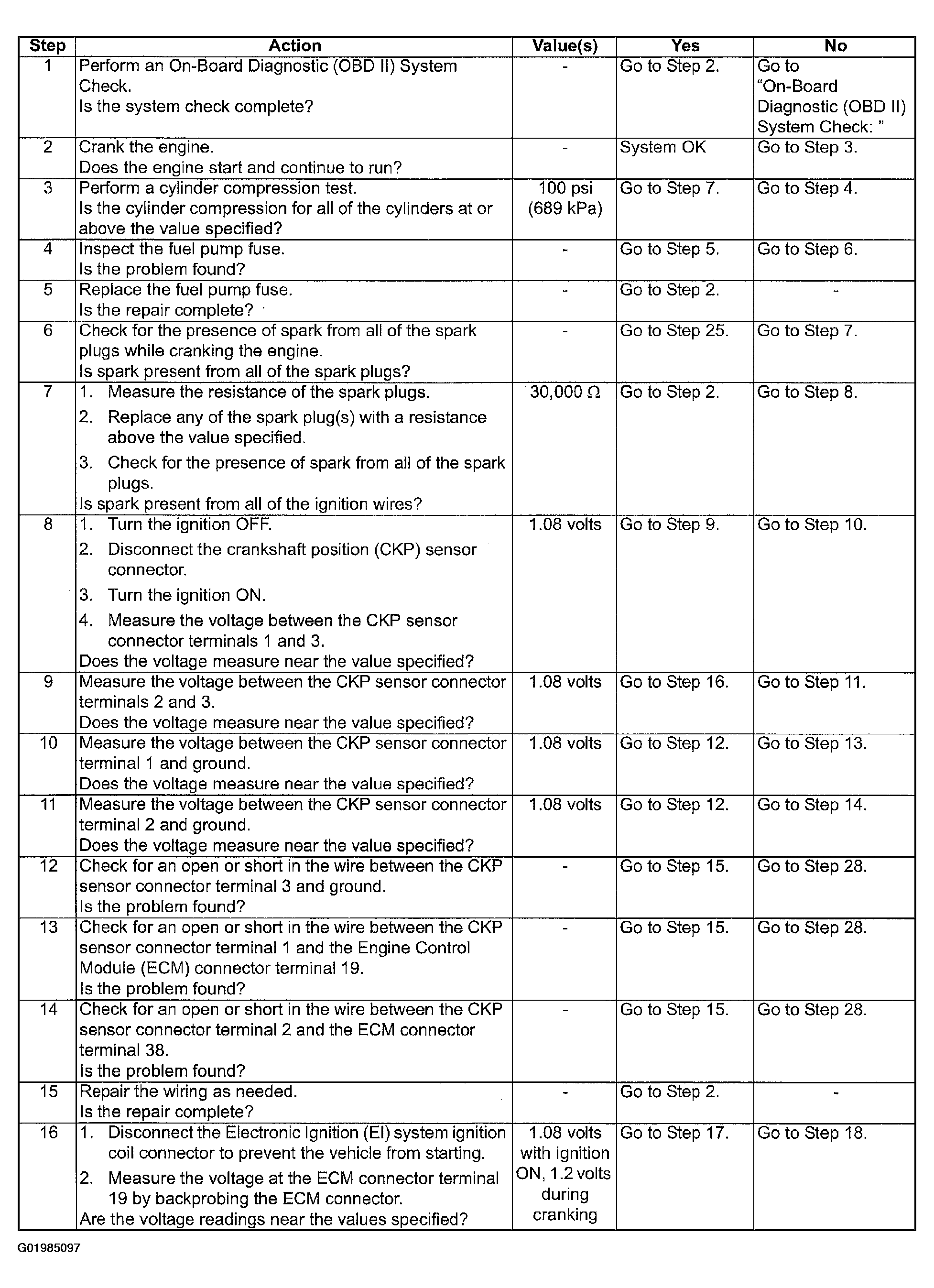

Fig 3: Engine Cranks But Will Not Run Diagnostic Chart (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

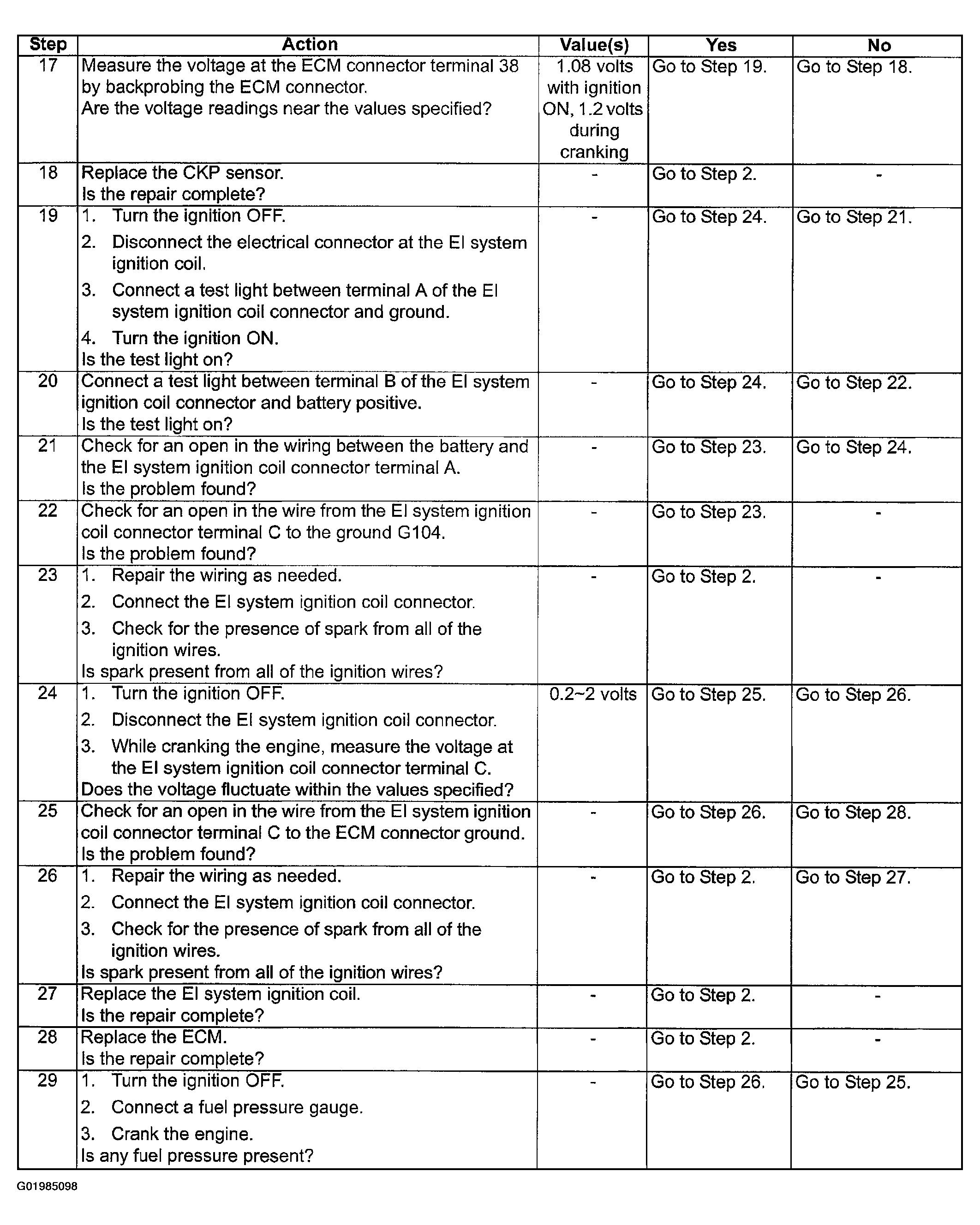

Fig 4: Engine Cranks But Will Not Run Diagnostic Chart (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

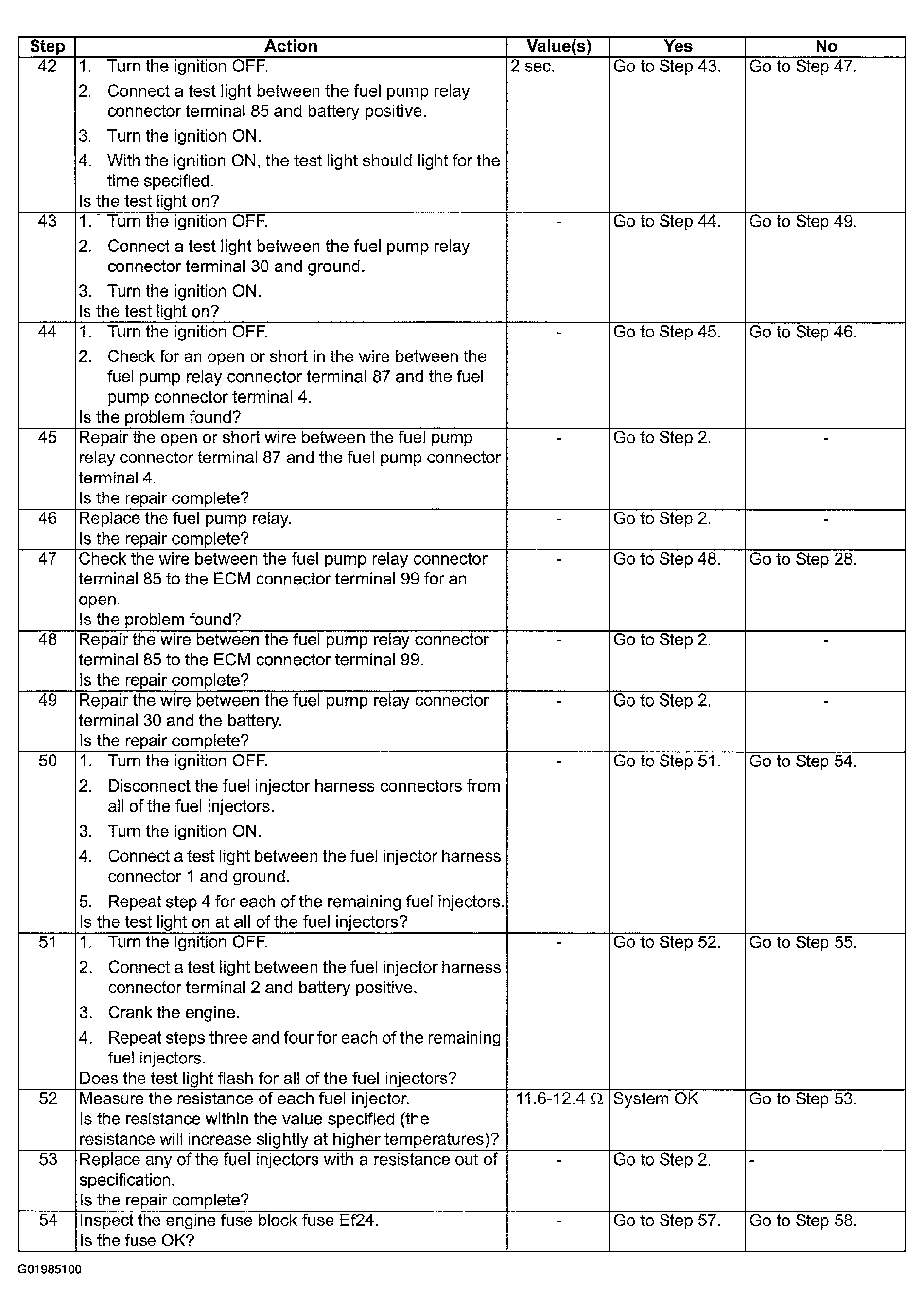

Fig 5: Engine Cranks But Will Not Run Diagnostic Chart (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

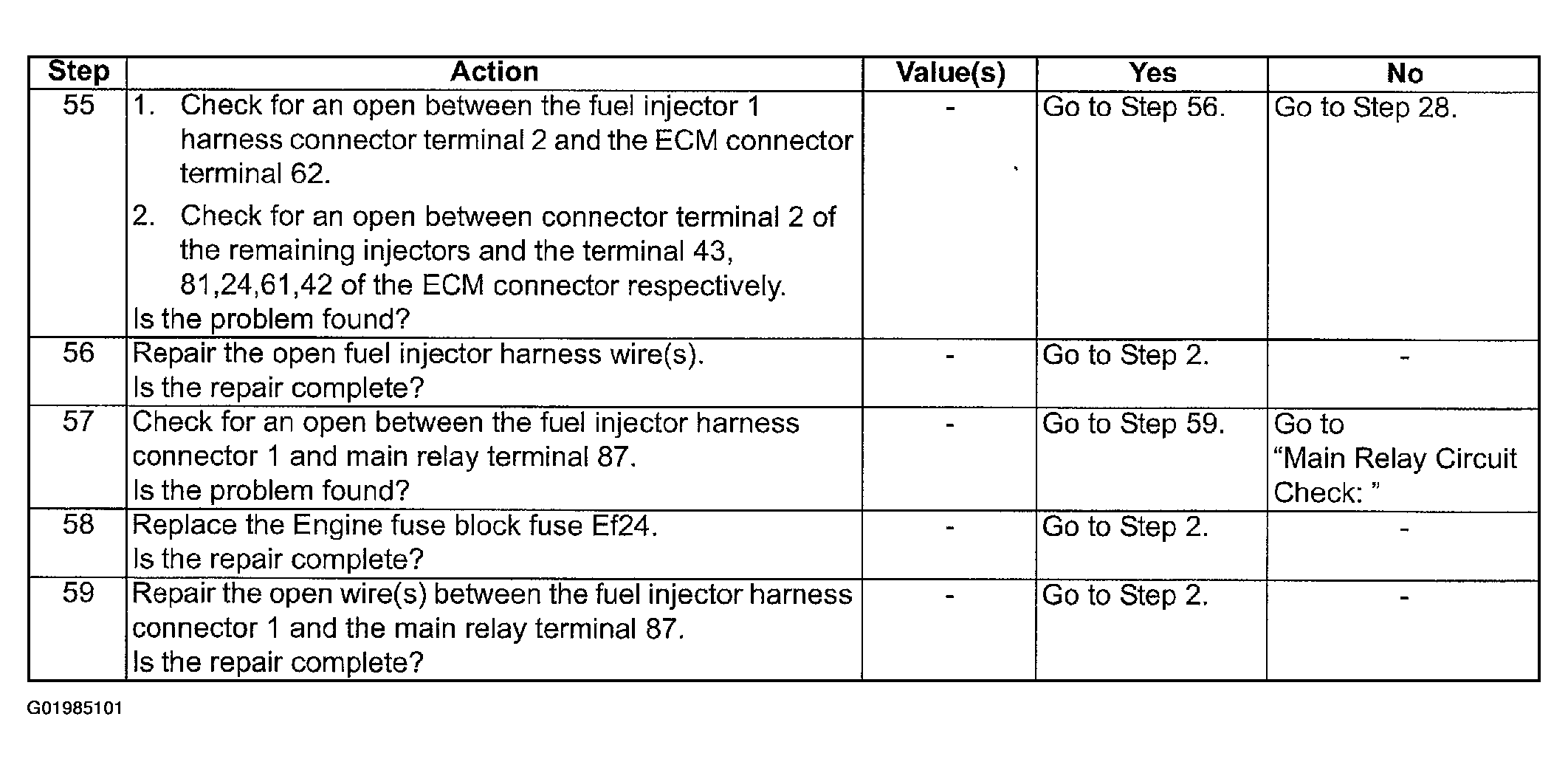

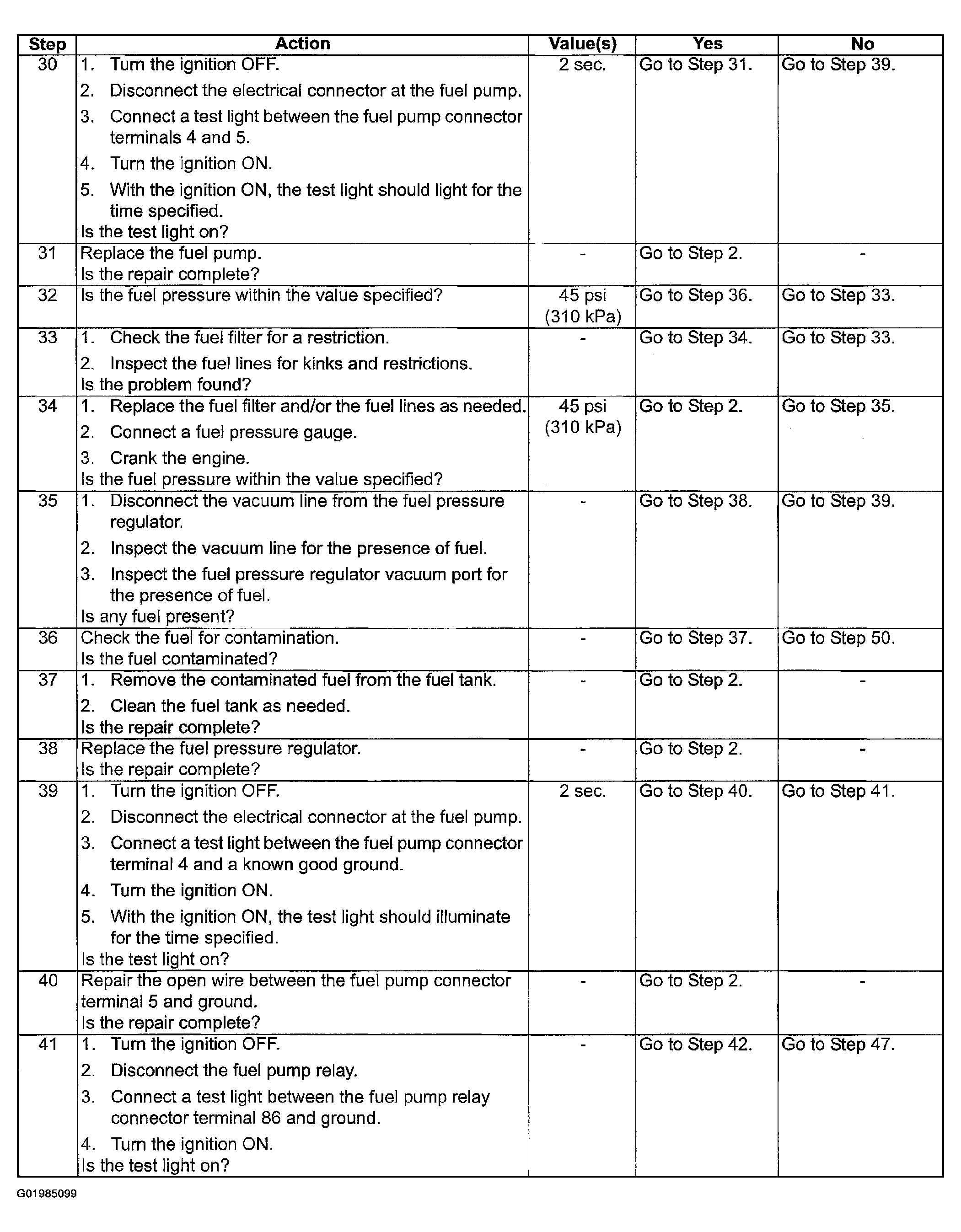

Fig 6: Engine Cranks But Will Not Run Diagnostic Chart (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Engine Cranks But Will Not Run Diagnostic Chart (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
