Detonation/Spark Knock

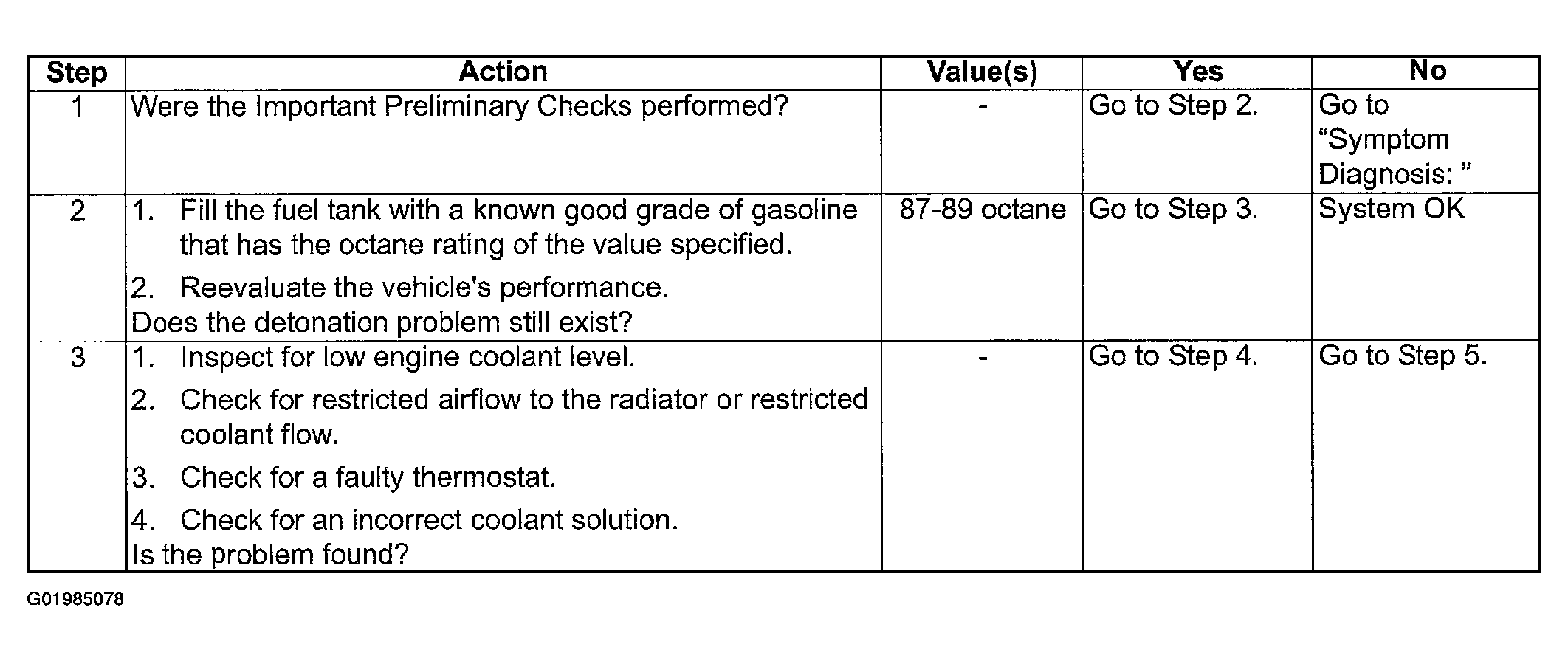

Fig 1: Detonation/Spark Knock Diagnostic Chart (1 Of 2)
G01985078Courtesy of SUZUKI OF AMERICA CORP.

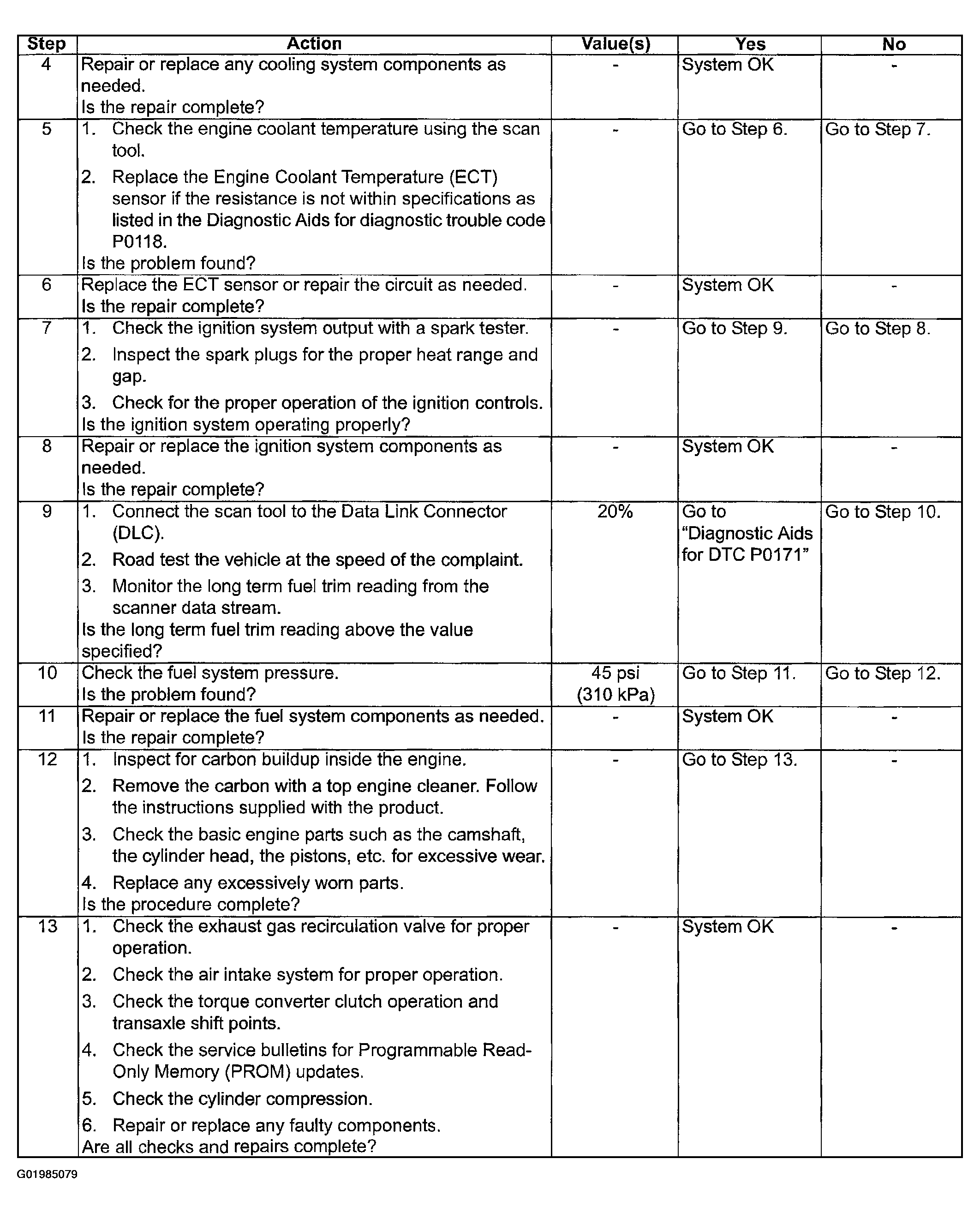

Fig 2: Detonation/Spark Knock Diagnostic Chart (2 Of 2)
G01985079Courtesy of SUZUKI OF AMERICA CORP.
