DTC P1671: CAN Communication Error (No Message from TCM): Notes

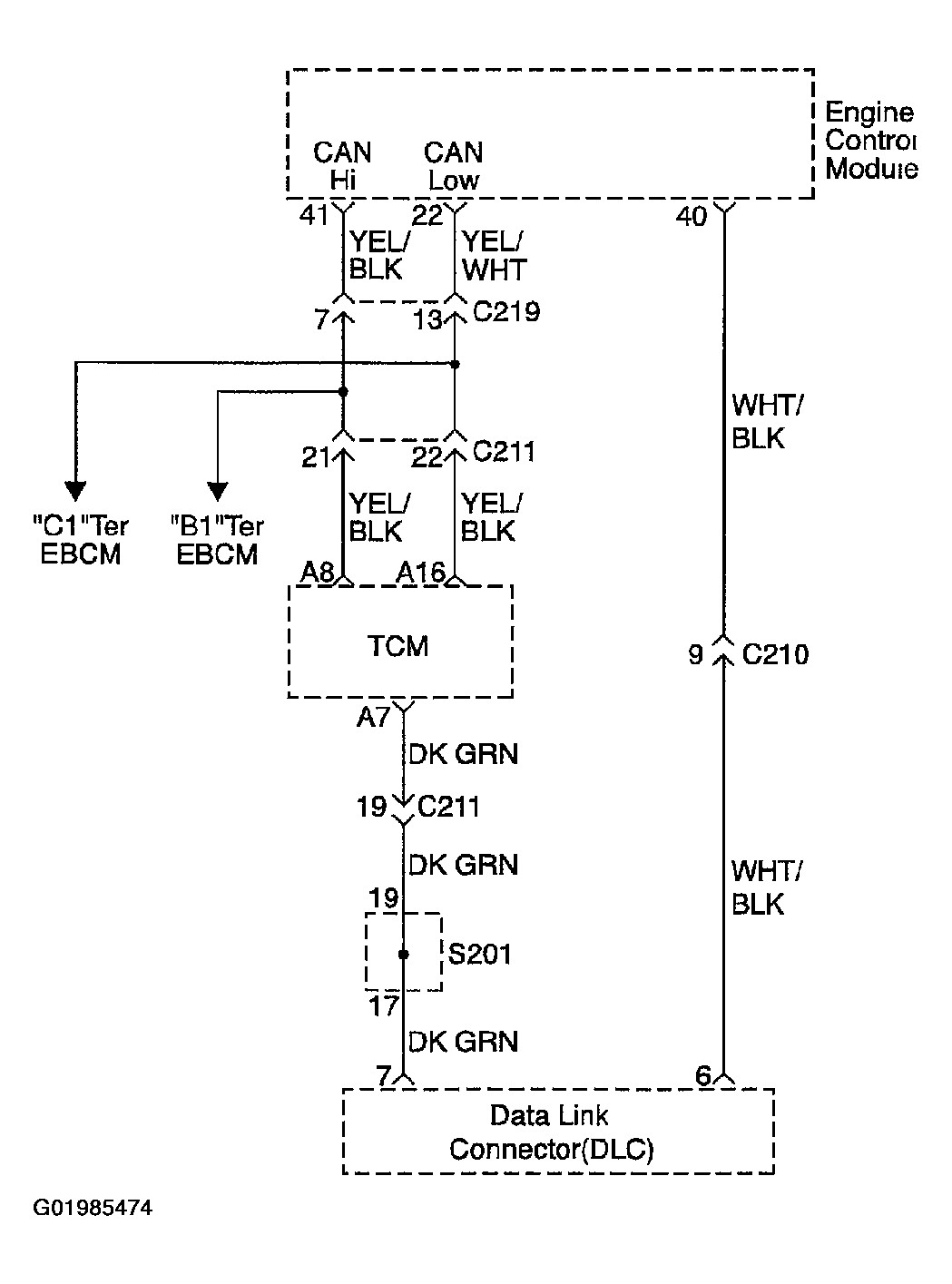

Fig 1: DTC P1671: CAN Communication Error (No Message From TCM) - System Wiring Diagram
G01985474Courtesy of SUZUKI OF AMERICA CORP.
