DTC P1321: Crankshaft Segment Malfunction (Period Tooth Error): Notes

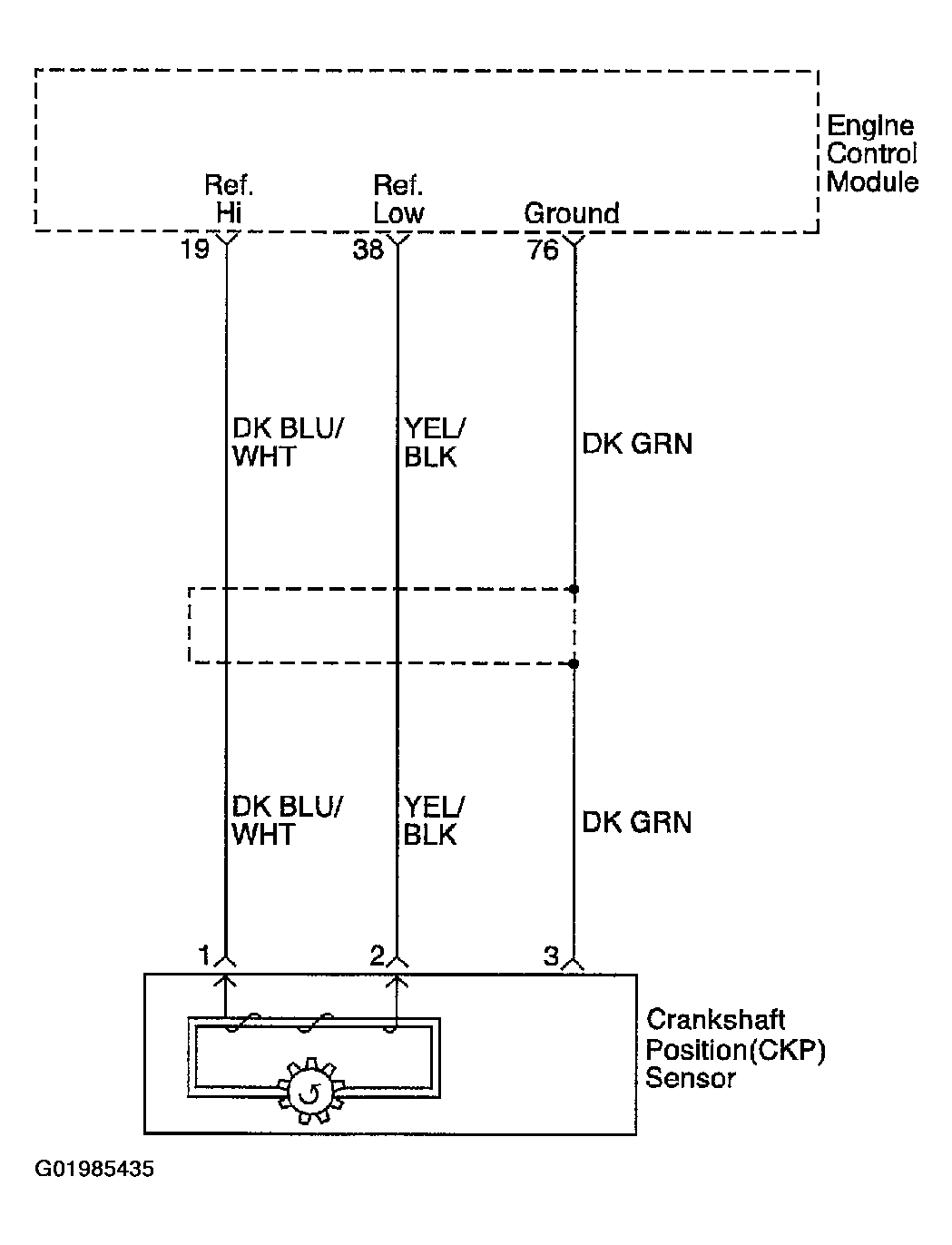

Fig 1: DTC P1321: Crankshaft Segment Malfunction (Period Tooth Error) - System Wiring Diagram
G01985435Courtesy of SUZUKI OF AMERICA CORP.
