DTC P0480: Cooling Fan Low Relay Malfunction: Notes

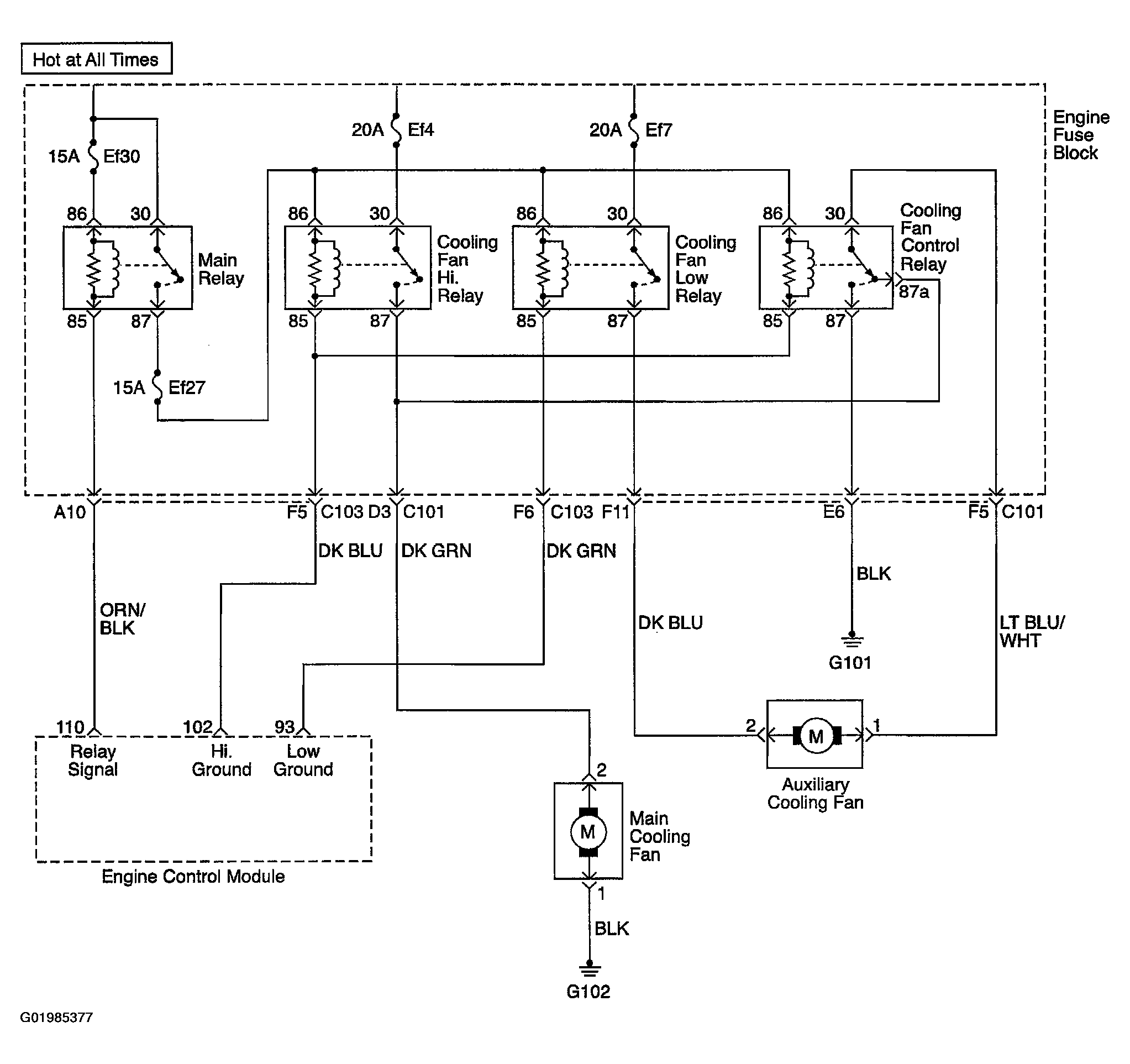

Fig 1: DTC P0480: Cooling Fan Low Relay Malfunction - System Wiring Diagram
G01985377Courtesy of SUZUKI OF AMERICA CORP.
