DTC P0451: Fuel Tank Pressure Sensor Signal Stuck: Notes

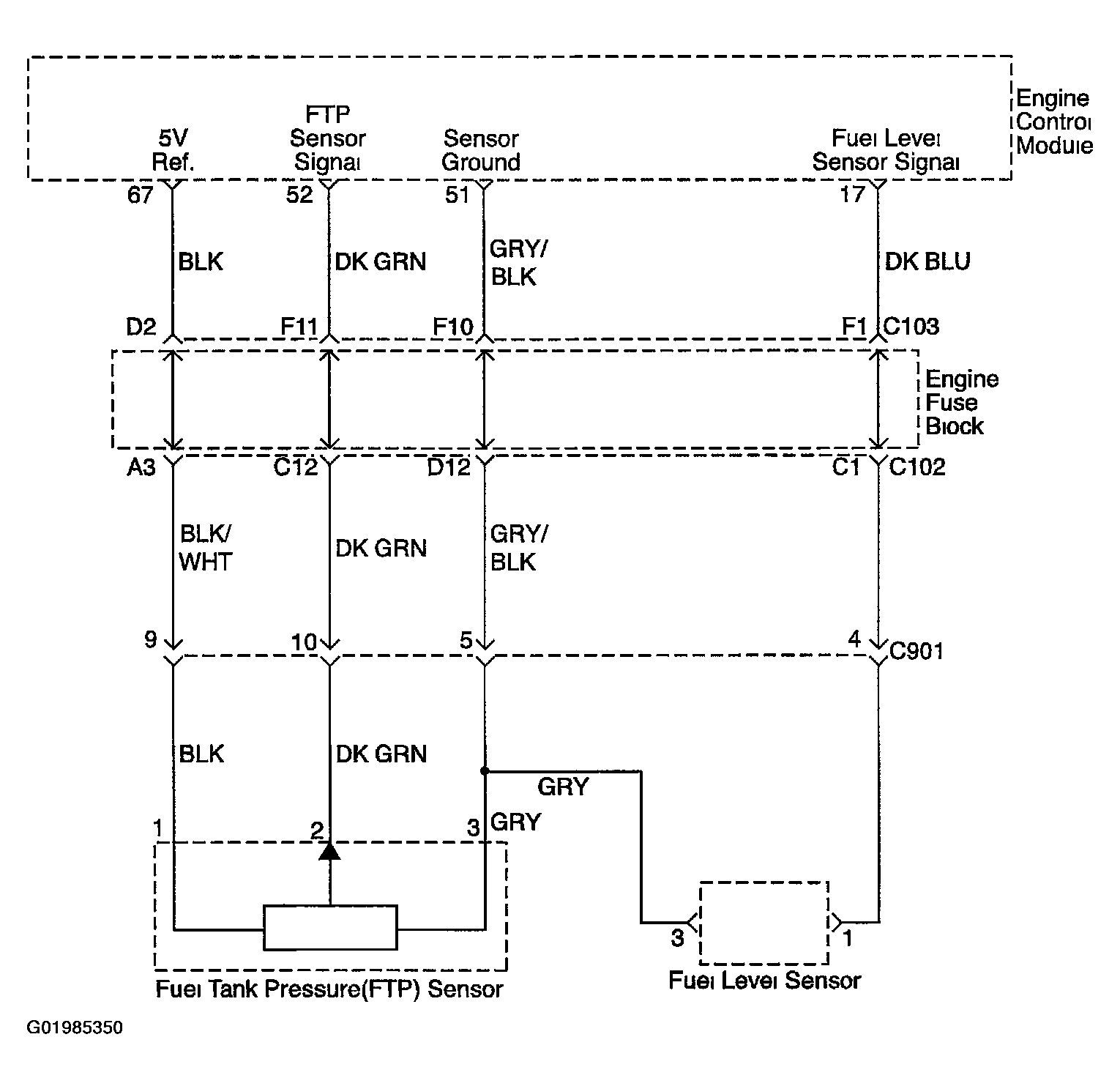

Fig 1: DTC P0451 Fuel Tank Pressure Sensor Signal Stuck - System Wiring Diagram
G01985350Courtesy of SUZUKI OF AMERICA CORP.
