DTC P0404: Exhaust Gas Recirculation (EGR) Valve Failure: Notes

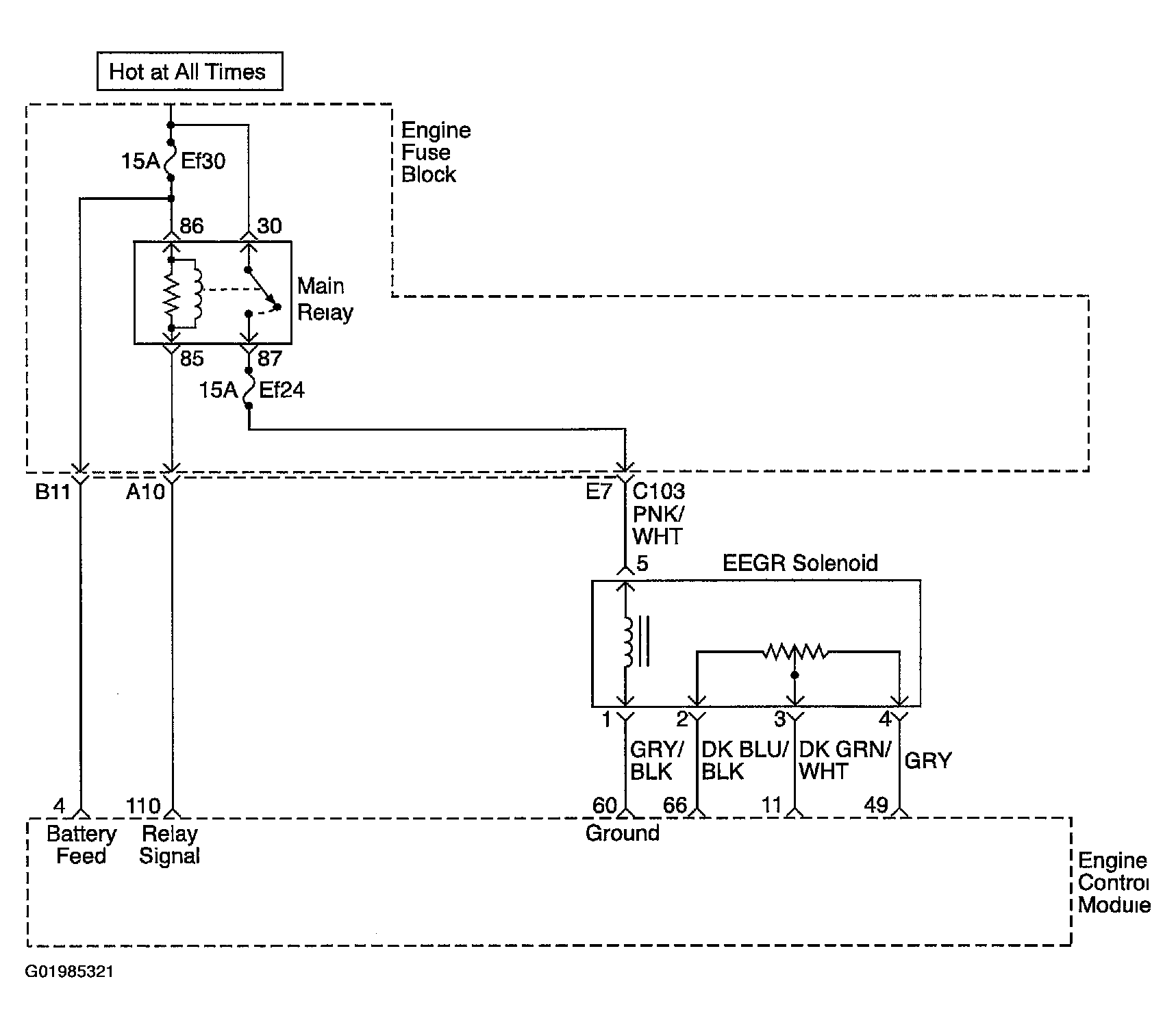

Fig 1: DTC P0404: Exhaust Gas Recirculation (EGR) Valve Failure - System Wiring Diagram
G01985321Courtesy of SUZUKI OF AMERICA CORP.
