DTC P0400: Exhaust Gas Recirculation (EGR) Flow Malfunction: Notes

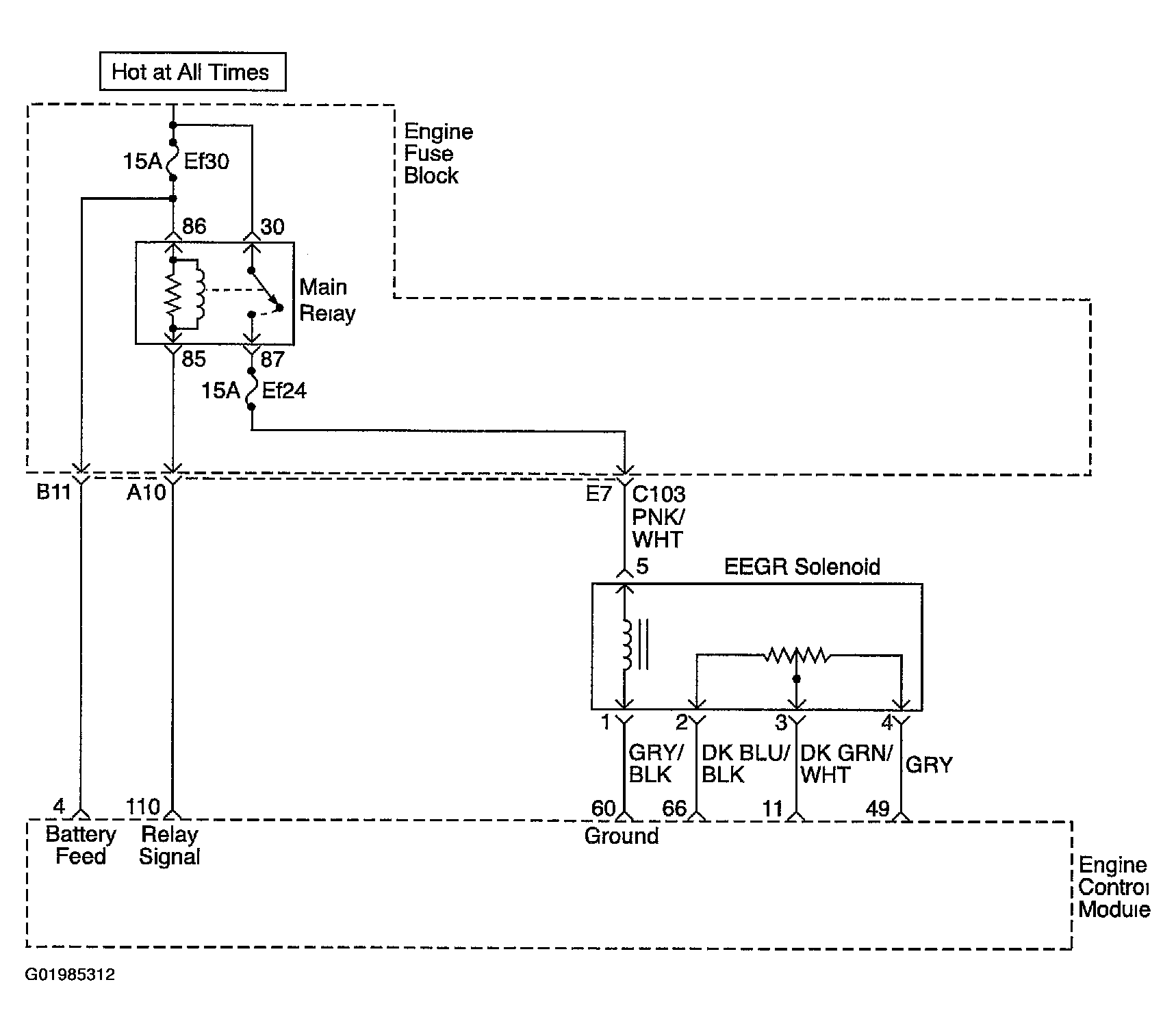

Fig 1: DTC P0400: Exhaust Gas Recirculation (EGR) Flow Malfunction - System Wiring Diagram
G01985312Courtesy of SUZUKI OF AMERICA CORP.
