DTC P0302: Cylinder 2 Misfire Detected: Notes

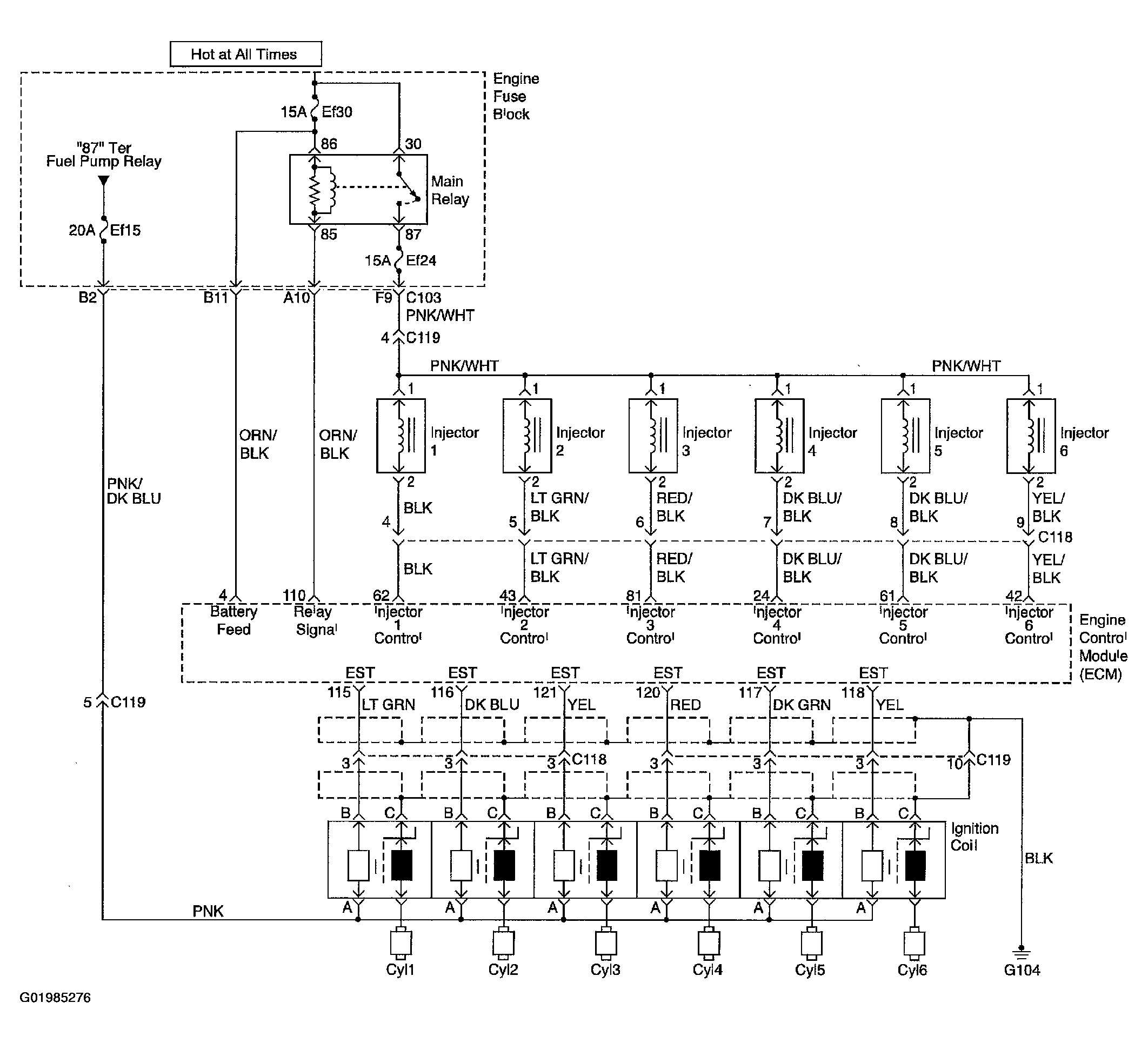

Fig 1: DTC P0302: Cylinder 2 Misfire Detected - System Wiring Diagram
G01985276Courtesy of SUZUKI OF AMERICA CORP.
