Component Location

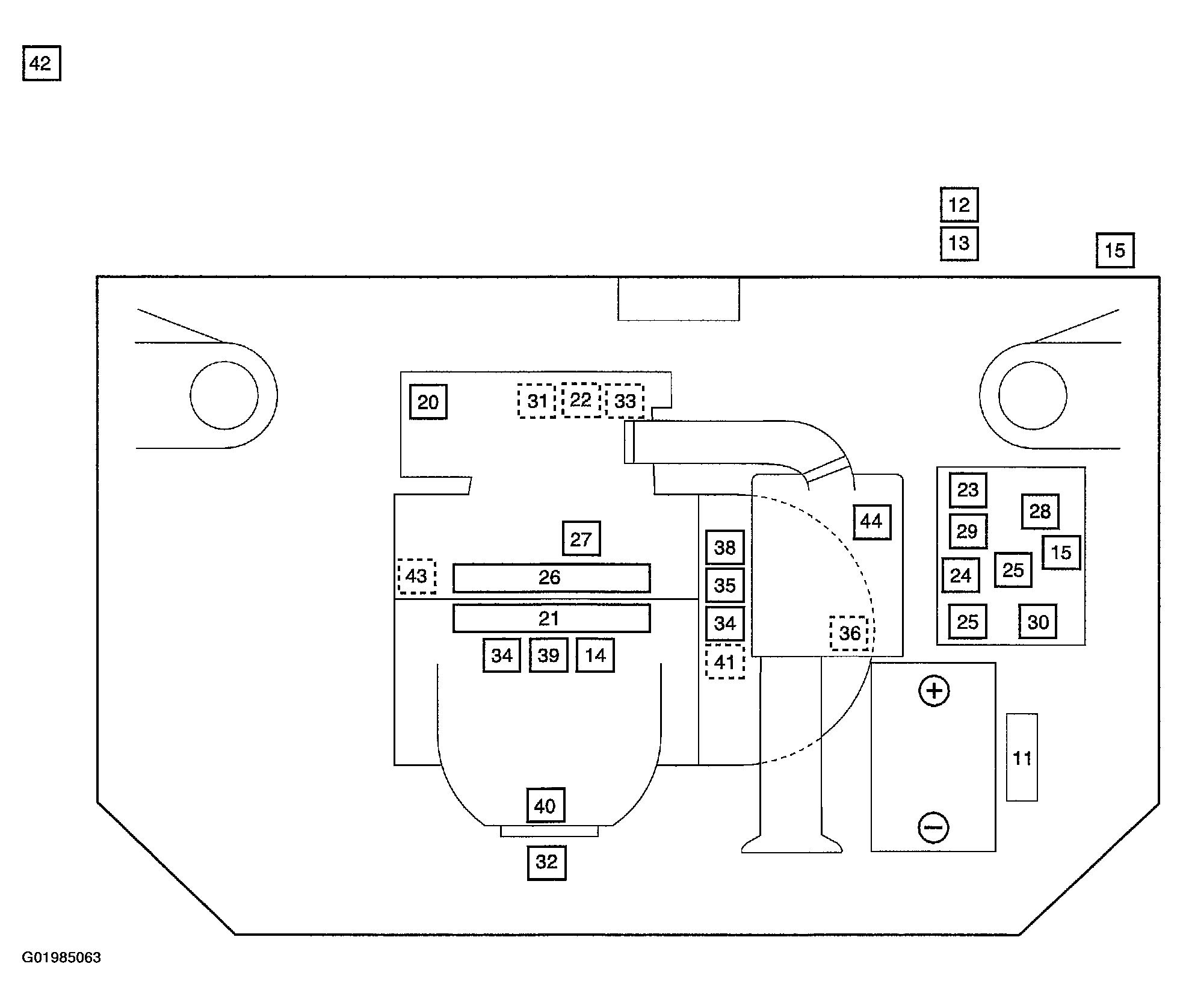

Fig 1: Identifying Component Location (1 Of 2)
G01985063Courtesy of SUZUKI OF AMERICA CORP.

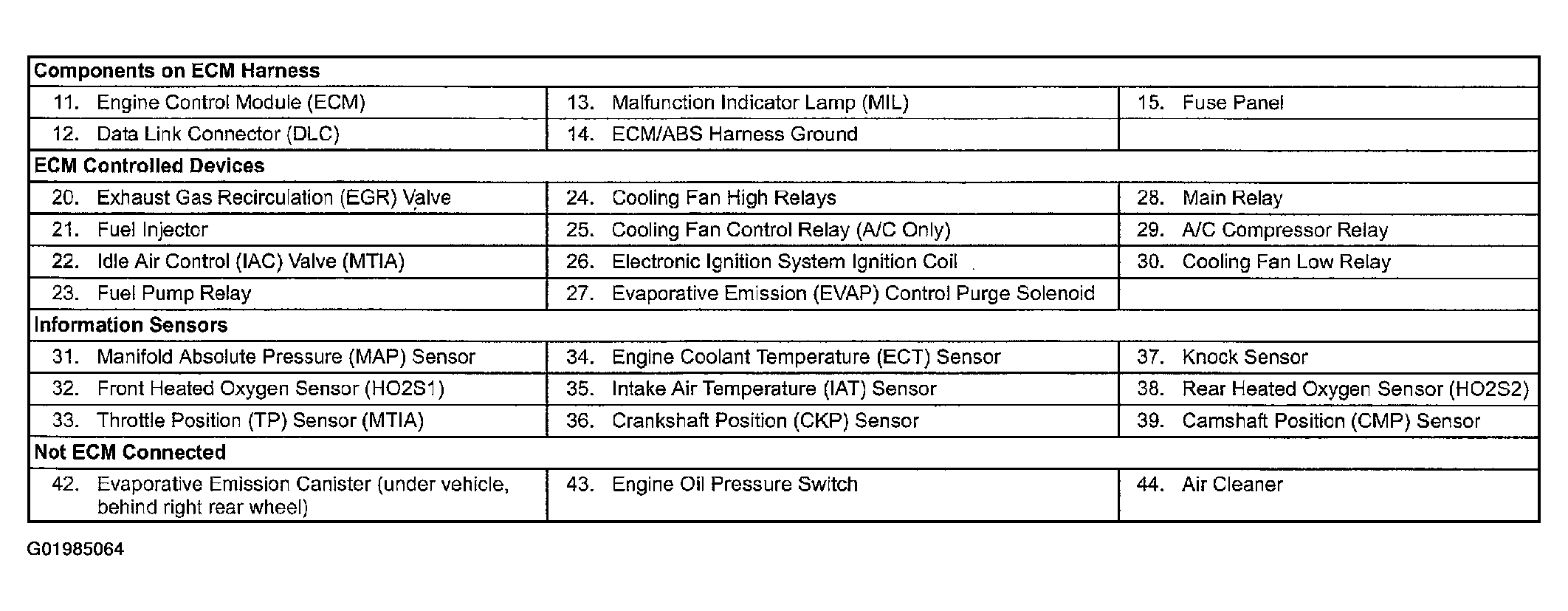

Fig 2: Identifying Component Location (2 Of 2)
G01985064Courtesy of SUZUKI OF AMERICA CORP.
