TCS Indicator Lamp Inoperative / No DTC Set: Notes

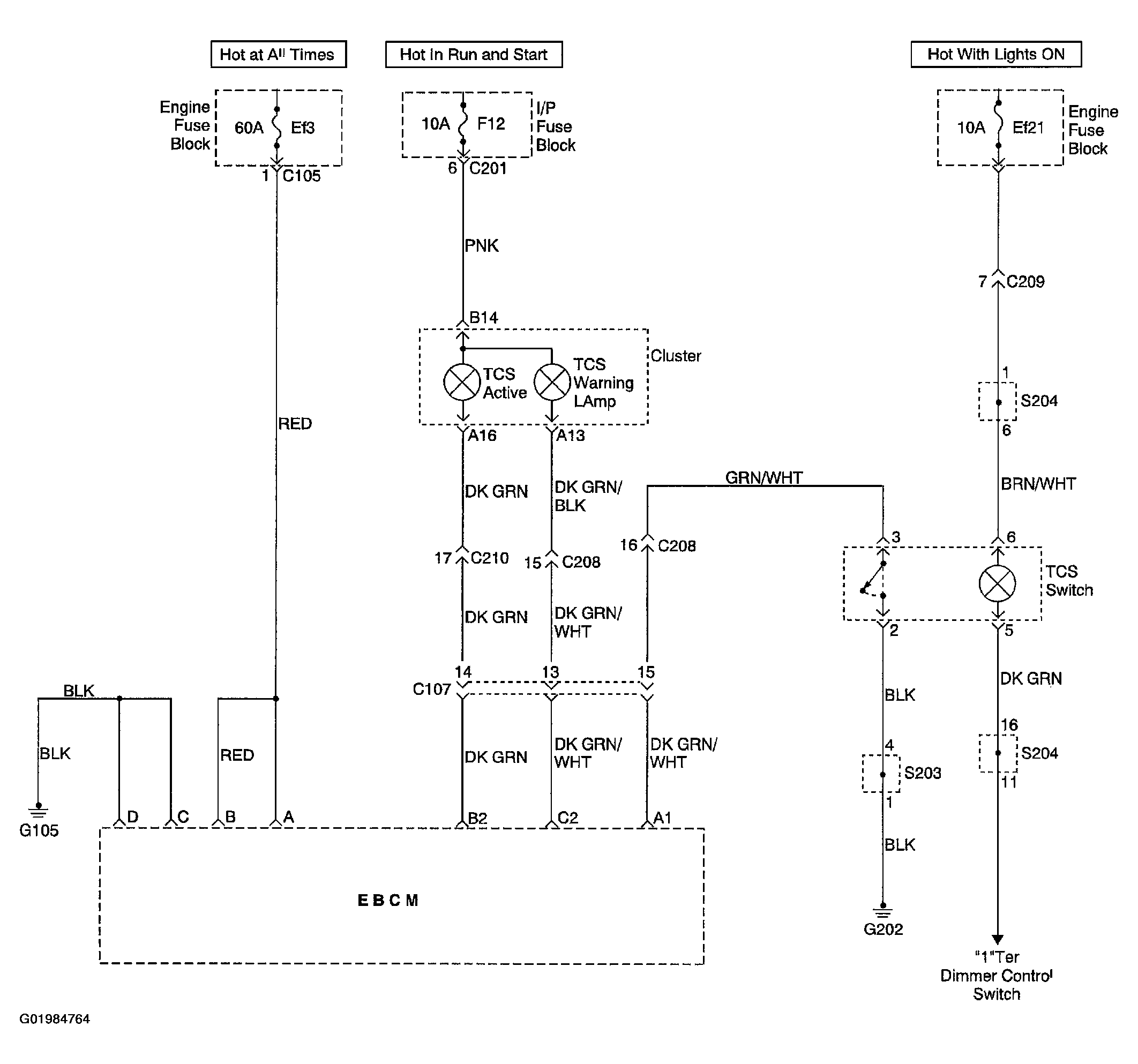

Fig 1: TCS Indicator Lamp Inoperative/No DTC Set - Wiring Diagram
G01984764Courtesy of SUZUKI OF AMERICA CORP.
