Engine - Oil Leak From Oil Pan Drain Plug

Section Title: Engine

TSB No. TS 08 10245

Division: Automotive

Category: Technical

SUBJECT:
OIL LEAK FROM DRAIN PLUG

MODEL(S):
VERONA

YEAR:
2004-2005

CONDITION:
After an engine oil change the vehicle may return with an oil leak at the drain plug bolt.

CAUSE:
The drain plug bolt washer may not seal properly if reused.

CORRECTION:
Install the new drain plug bolt and washer listed below. Always use a new drain plug washer any time the drain plug is removed.

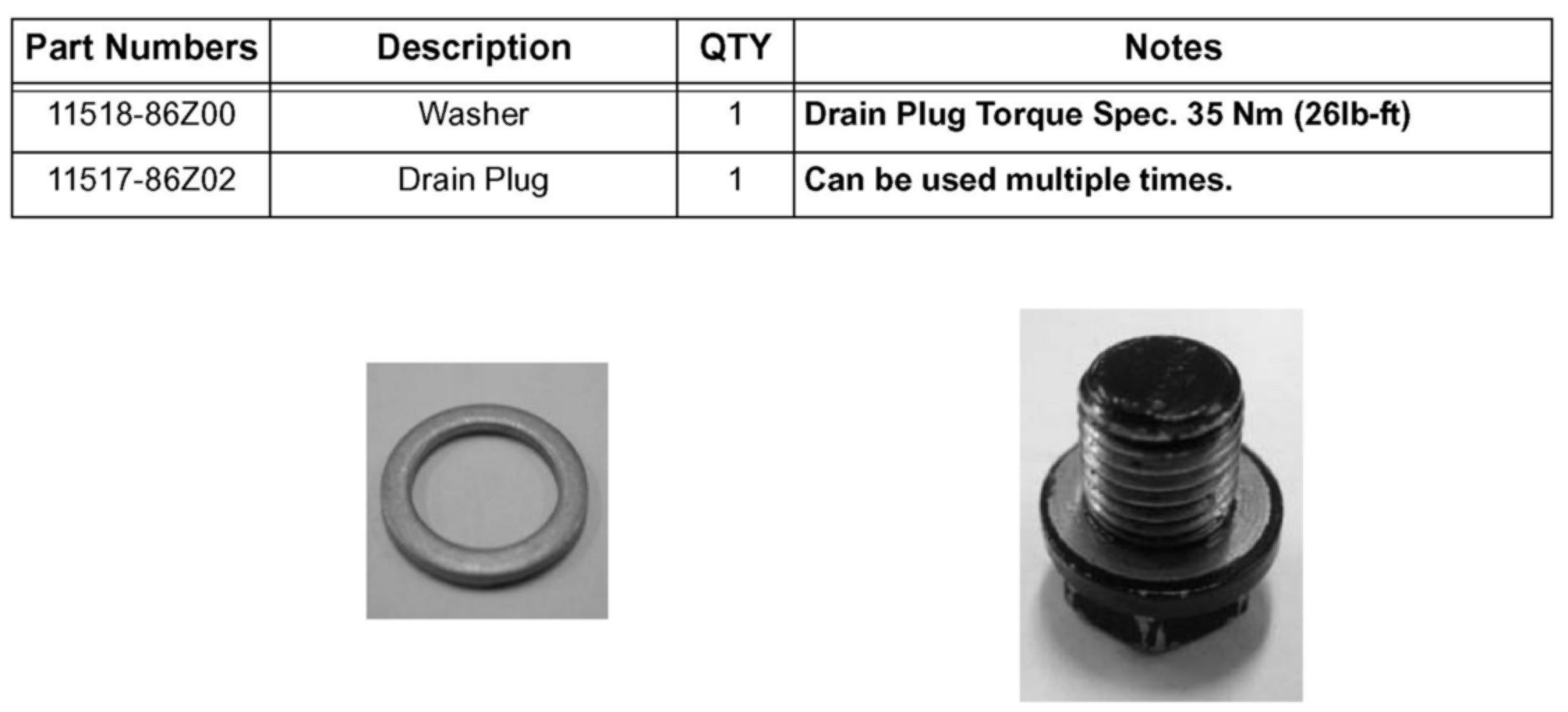

PART(S) INFORMATION
