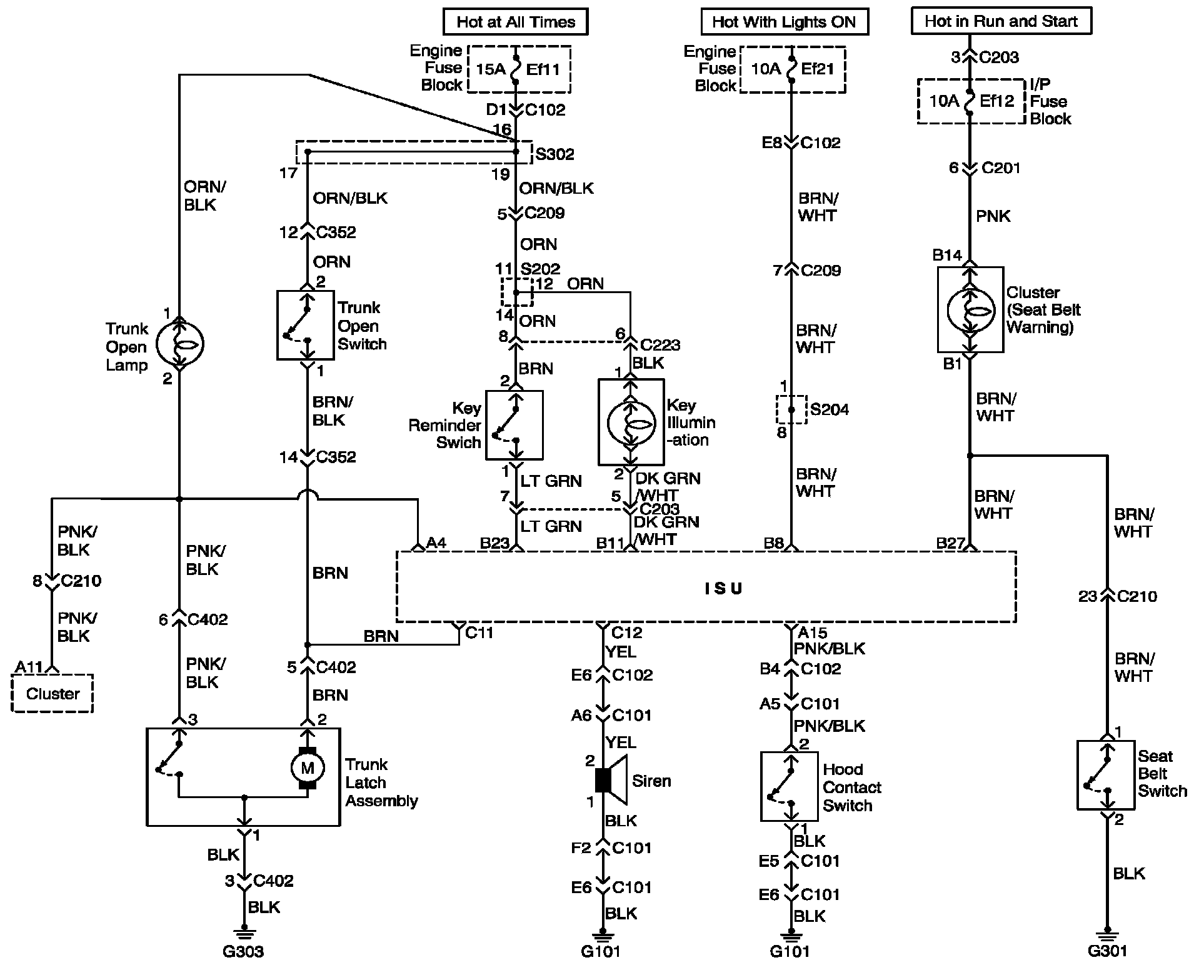

No Chime With the Seat Belt Unfastened and the Key In the Ignition Switch

No Chime With The Seat Belt Unfastened And The Key In The Ignition Switch:

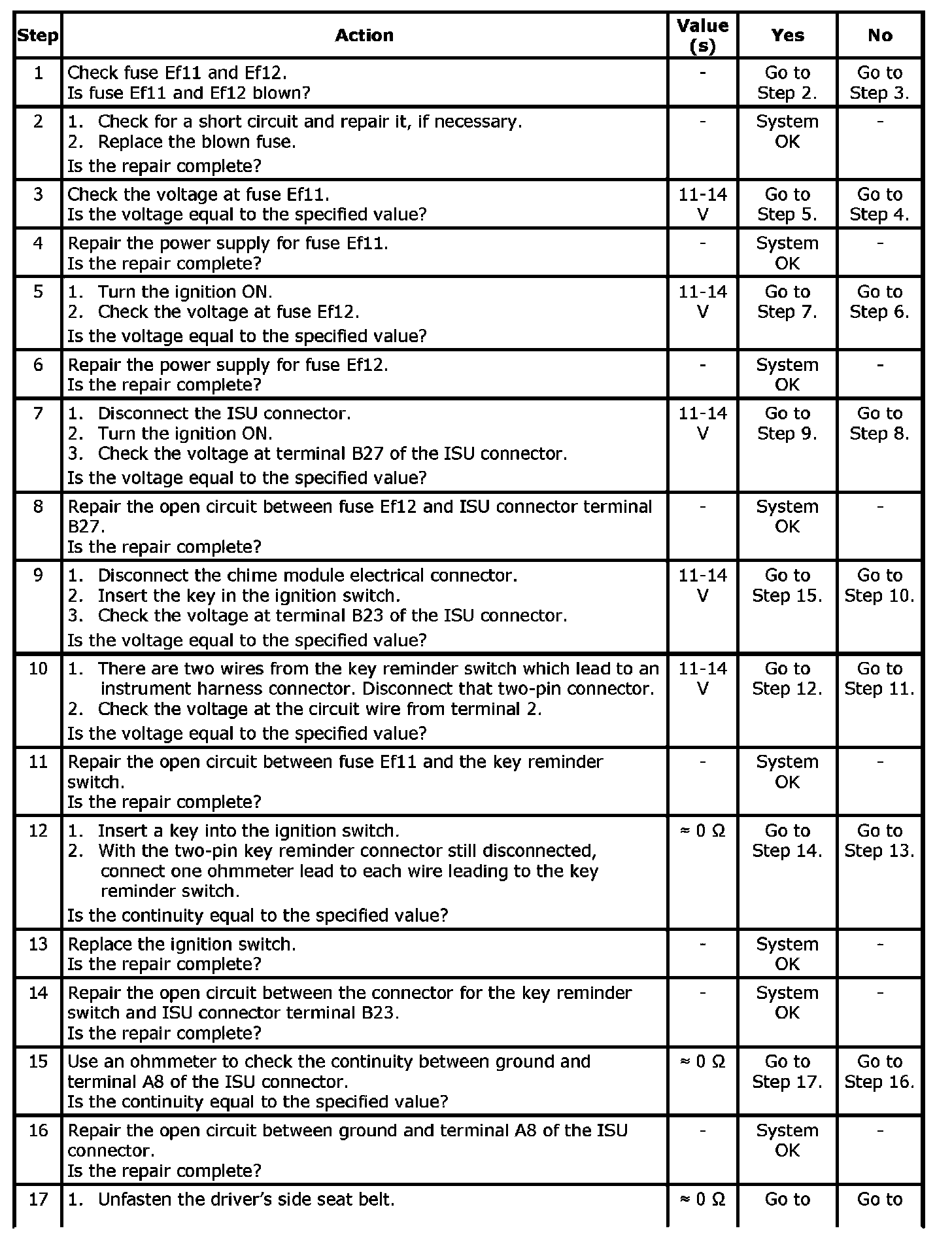

Step 1 - 17:



Step 18 - 21:
