Relays and Modules - Instrument Panel
>>
Audible Warning Device Control Module
>>
Testing and Inspection
>>
No Chime With the Door Open and the Key In the Ignition Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
No Chime With the Door Open and the Key In the Ignition Switch

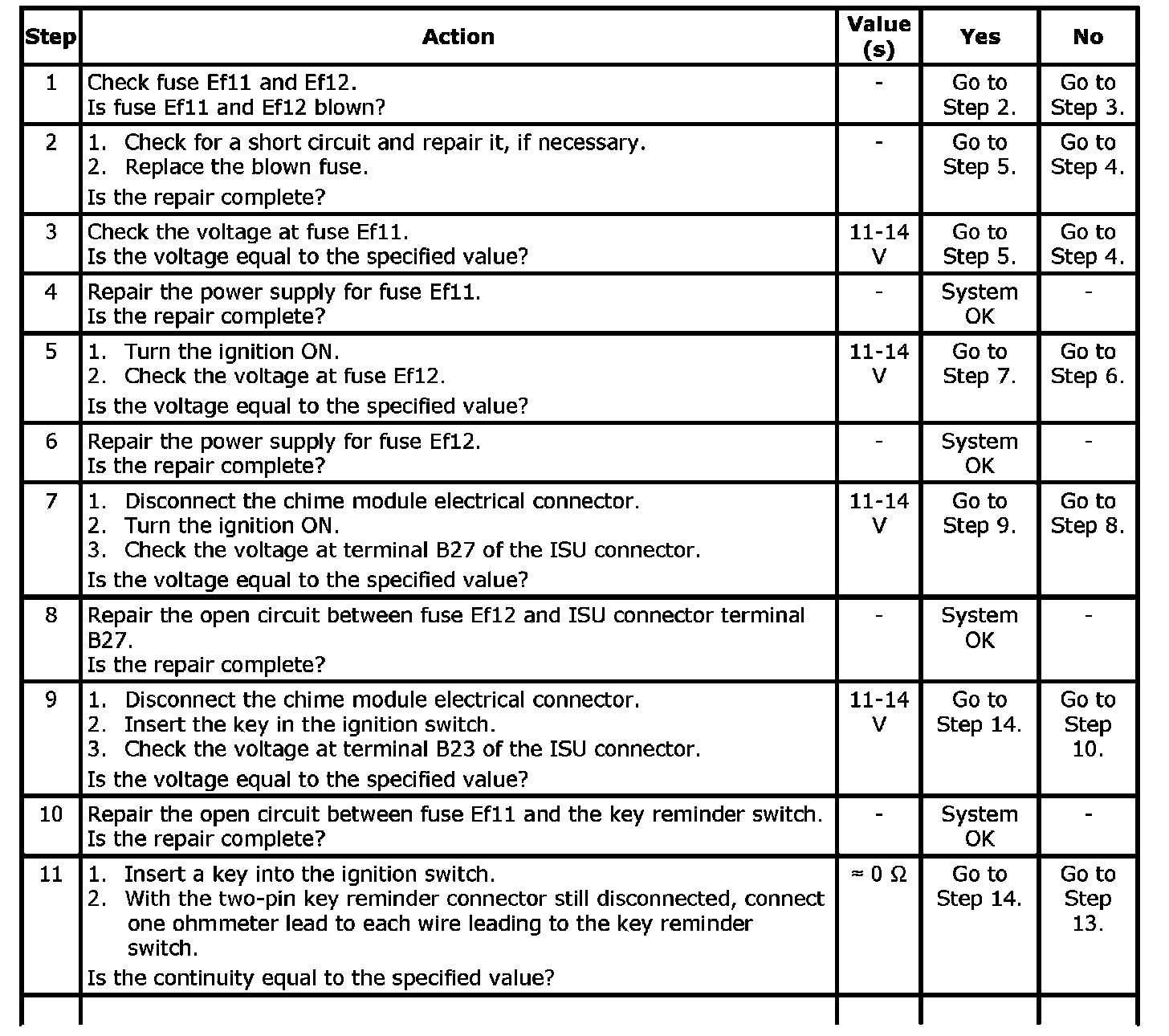

Step 1 - 11:

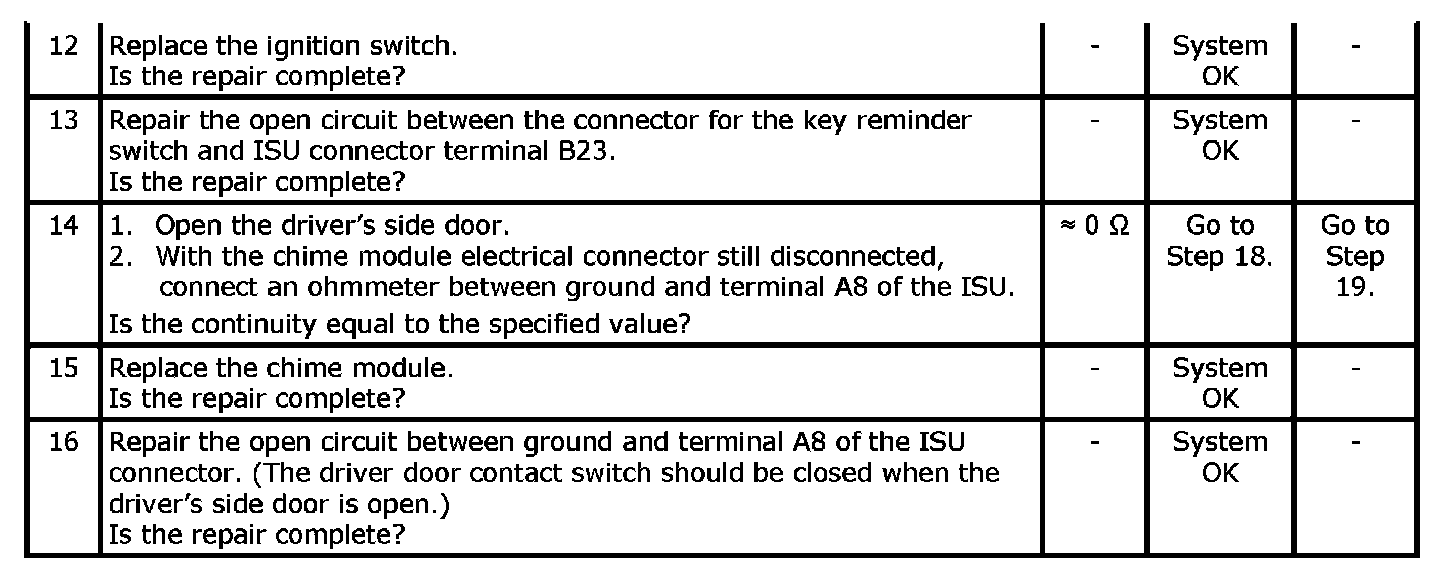

Step 12 - 16:
