Canister Purge Solenoid: Service and Repair

Evaporative Emission Canister Purge Solenoid Removal and Installation

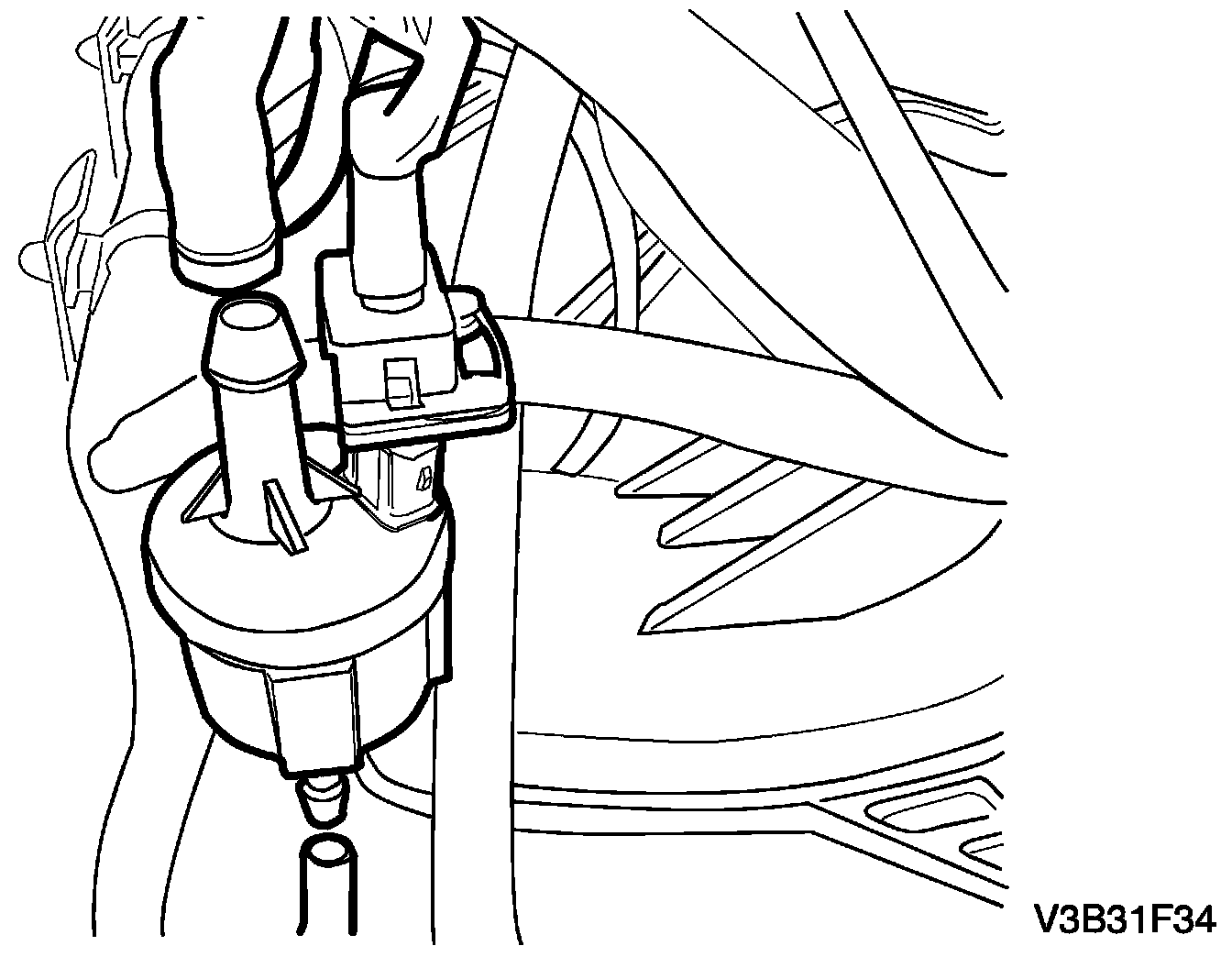

Evaporative Emission Canister Purge Solenoid Removal

1. Disconnect the negative battery cable.
2. Disconnect the wiring harness connector.
3. Disconnect the vacuum hose from the solenoid.




Evaporative Emission Canister Purge Solenoid Installation

1. Installation should follow the removal procedure in the reverse order.
