Ash Tray Lamp: Testing and Inspection

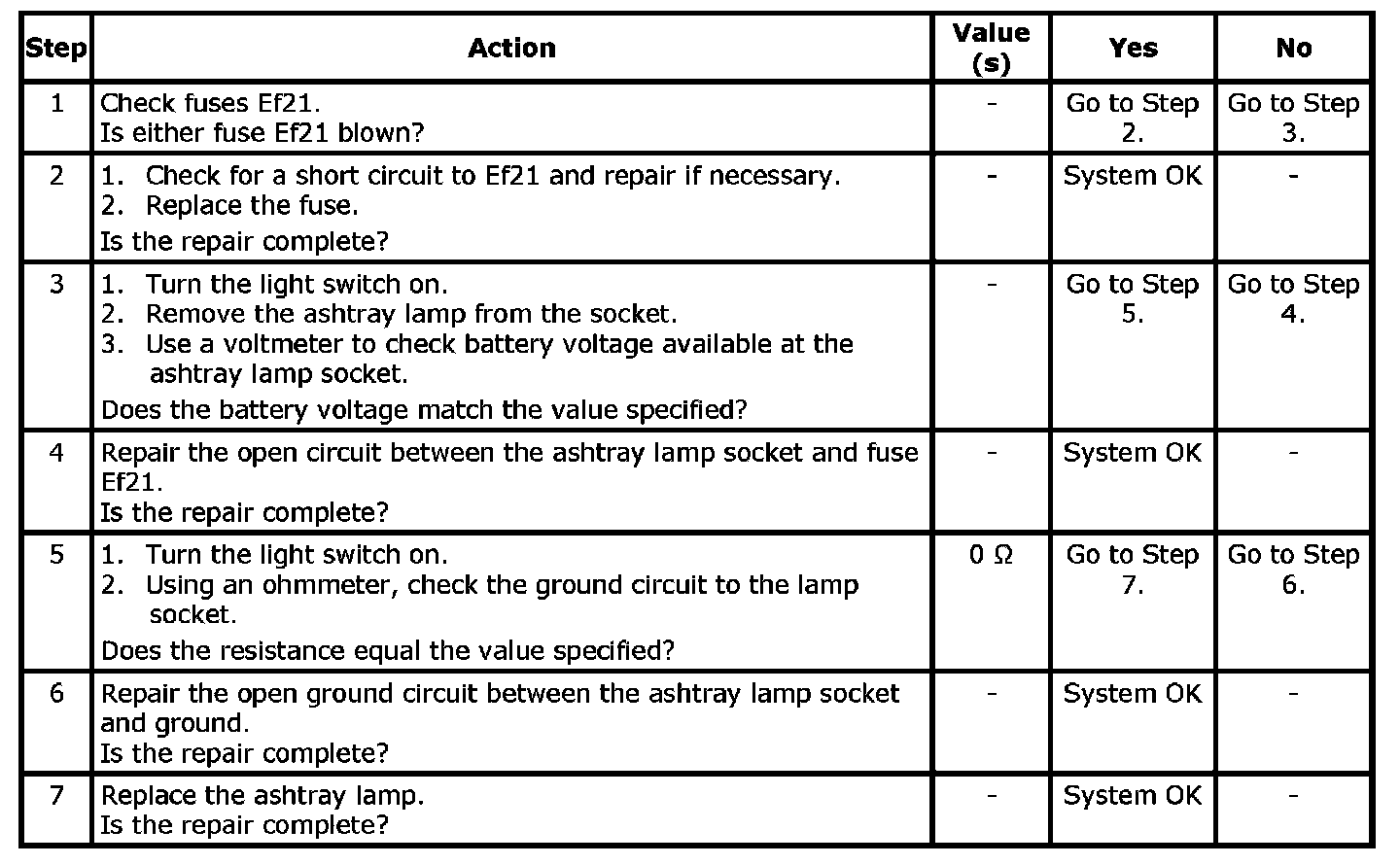

Step 1 - 7:

Ashtray Lamp

CAUTION: When probing a bulb socket with a voltmeter or a test lamp, do not allow the probe to touch both the positive and the negative contacts at the same time, which will blow a fuse.
