Insufficient Heating or Defrosting

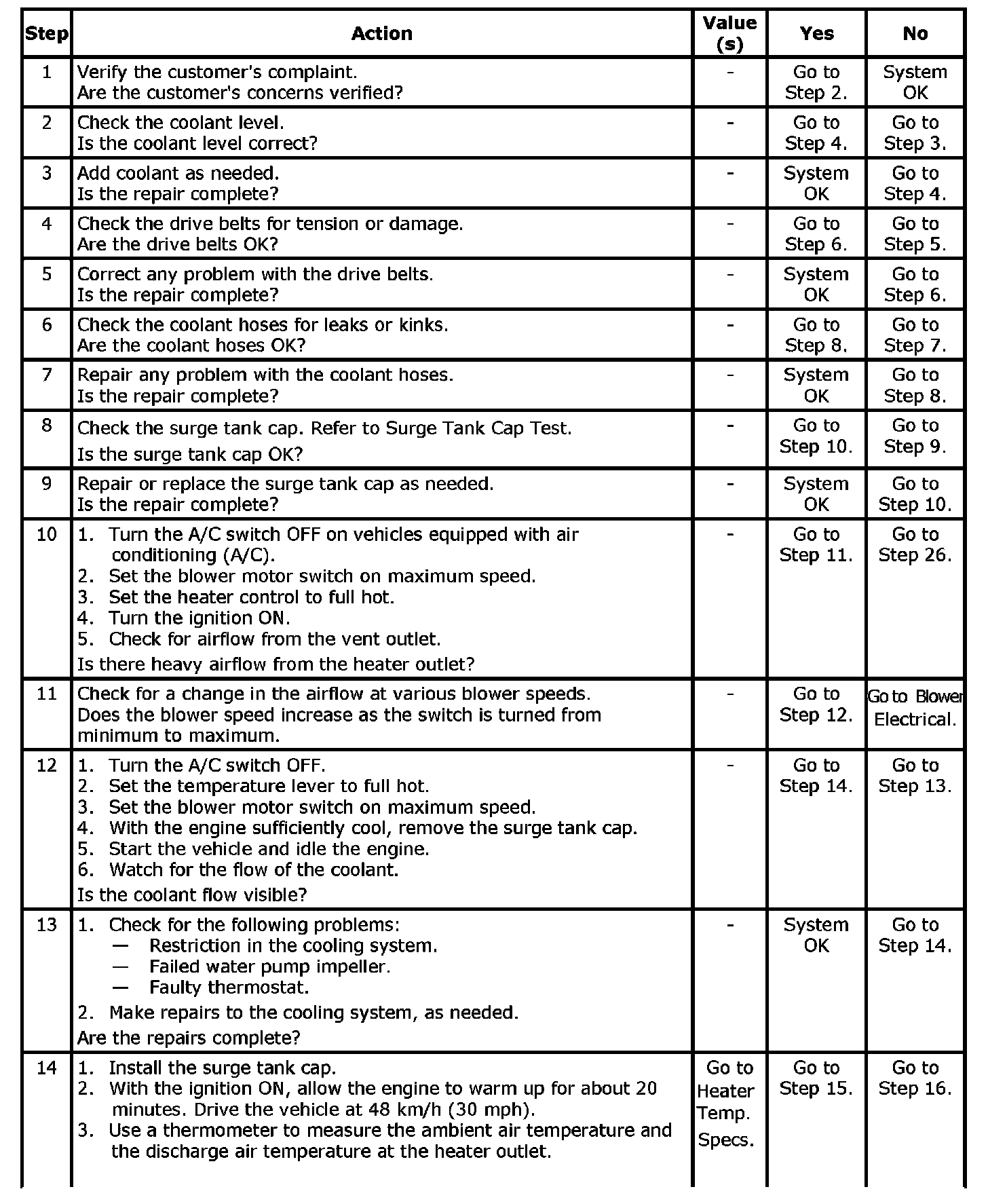

Step 1 - 14:

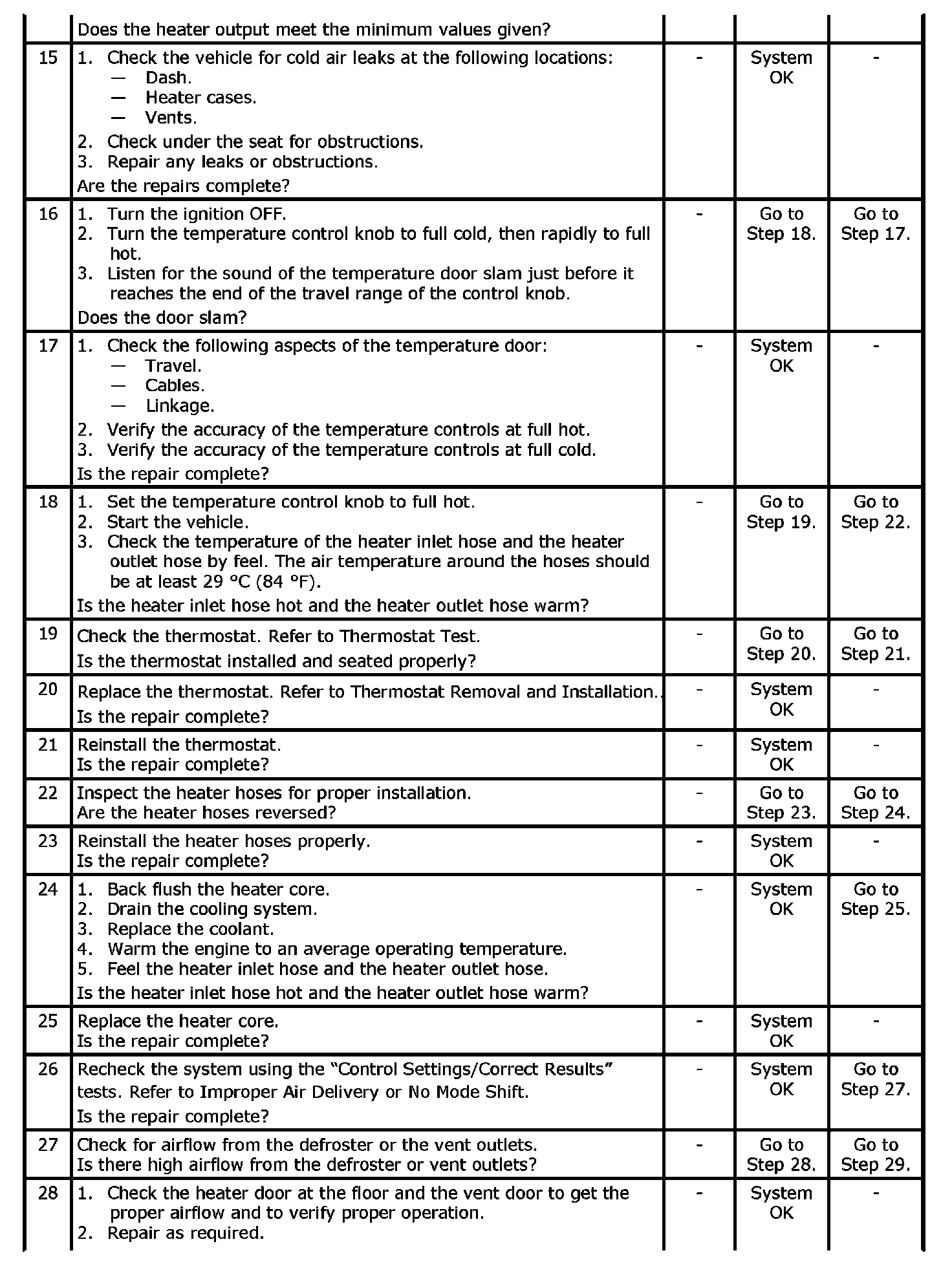

Step 15 - 28:

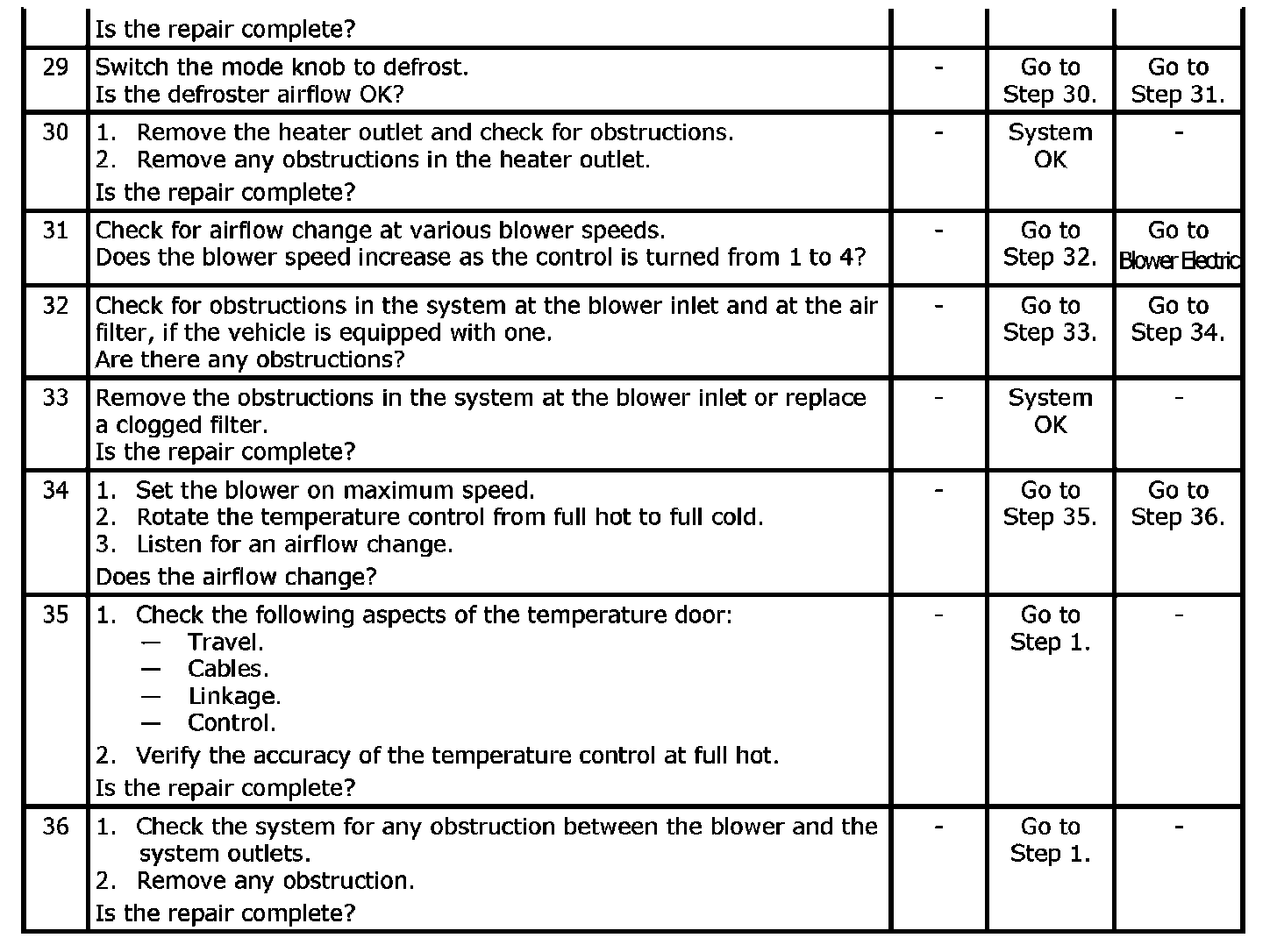

Step 29 - 36:




Insufficient Heating or Defrosting

CAUTION: The cooling system is pressurized when hot. Injury can result from removing the surge tank cap before the engine is sufficiently cool.
