Insufficient Cooling Diagnosis

Insufficient Cooling Diagnosis

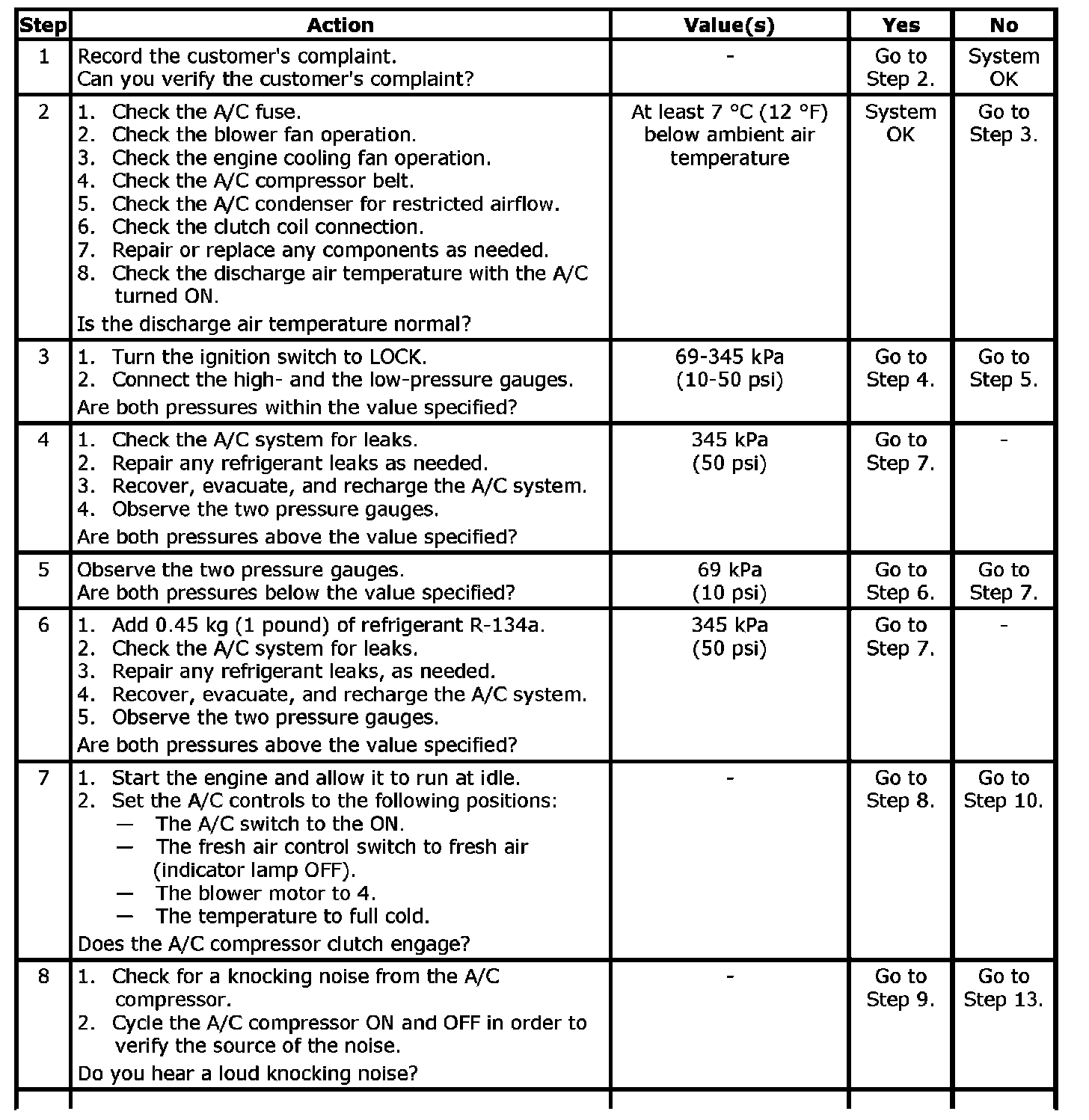

Step 1 - 8:

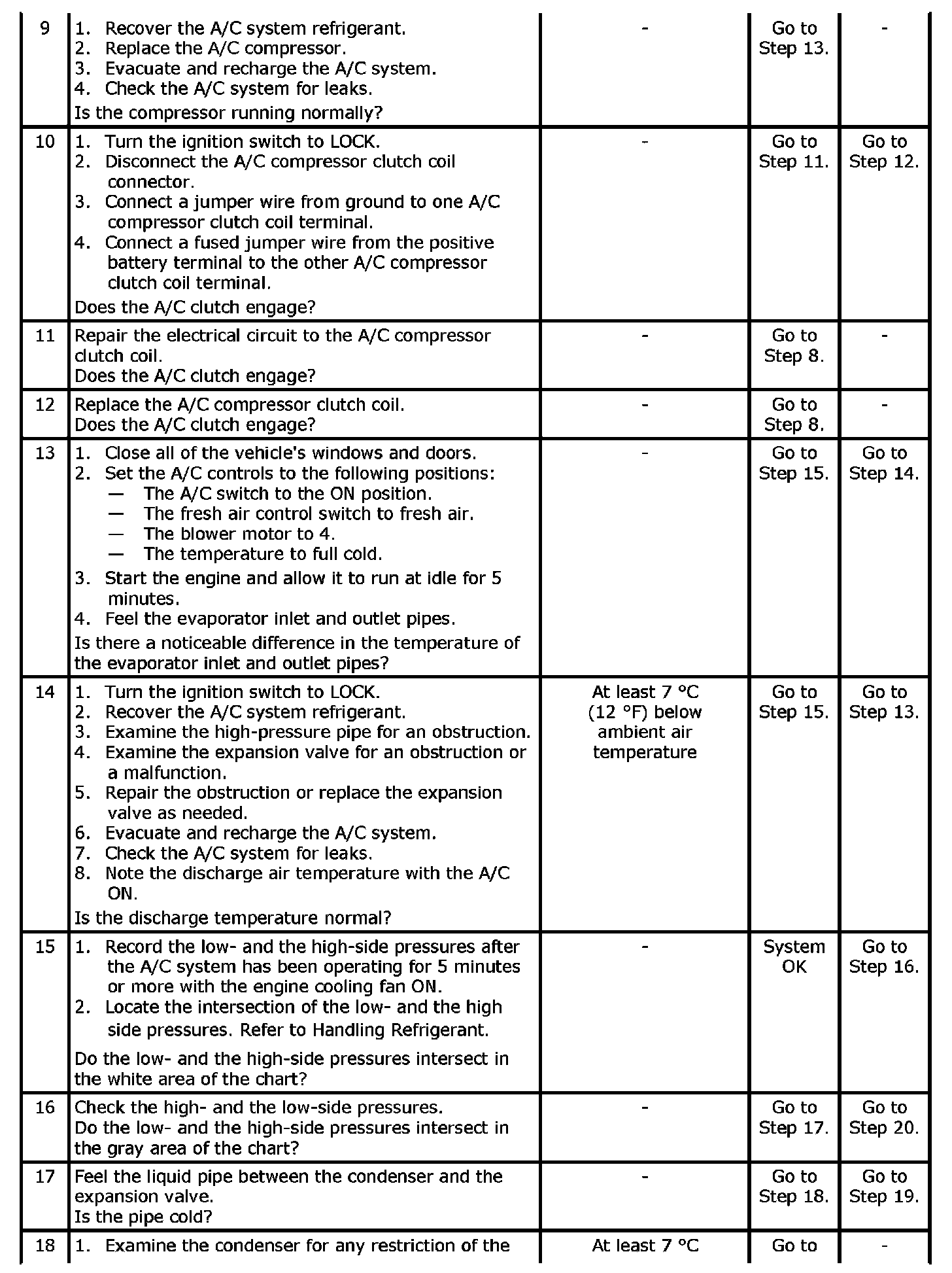

Step 9 - 18:

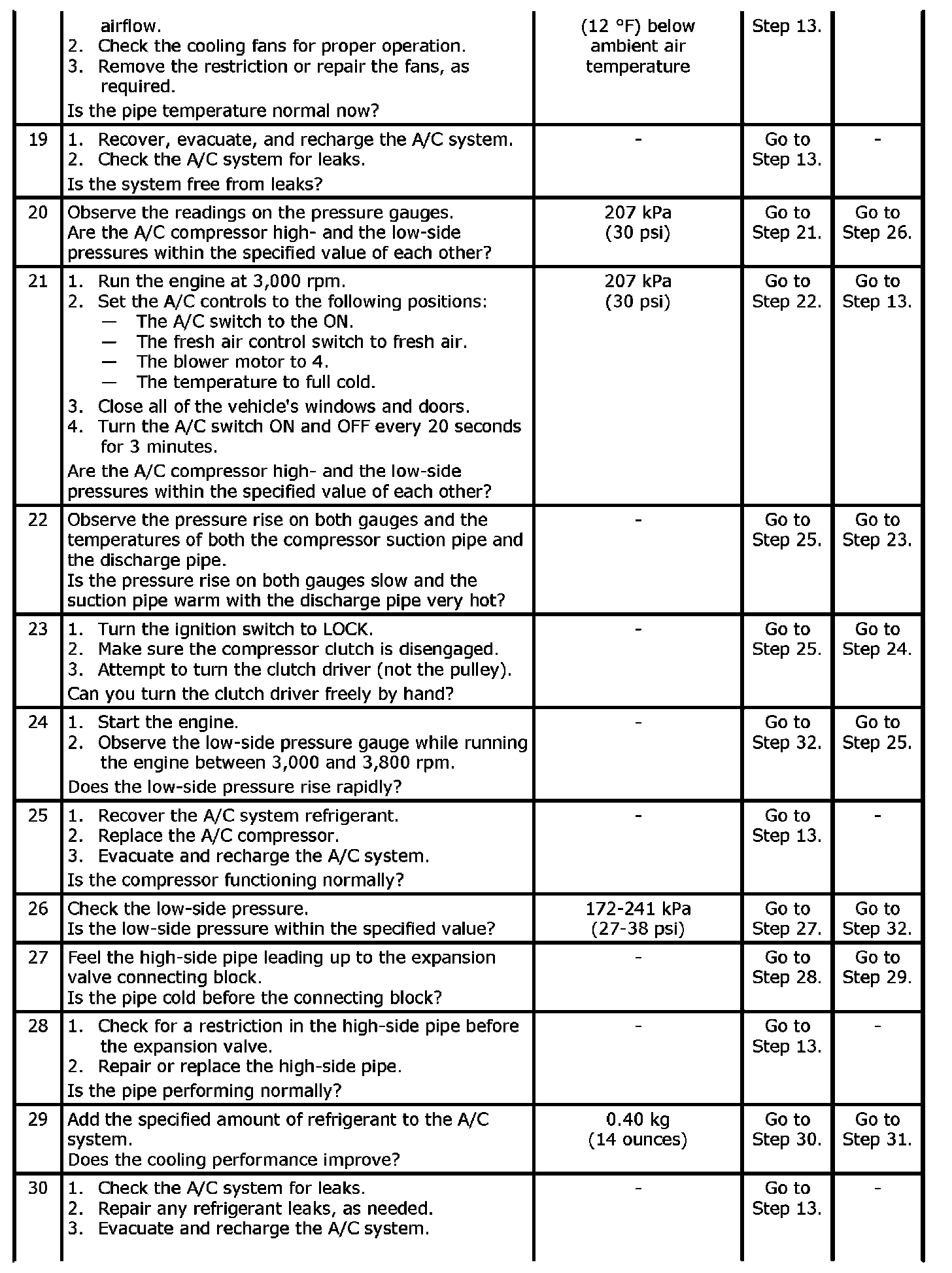

Step 19 - 30:

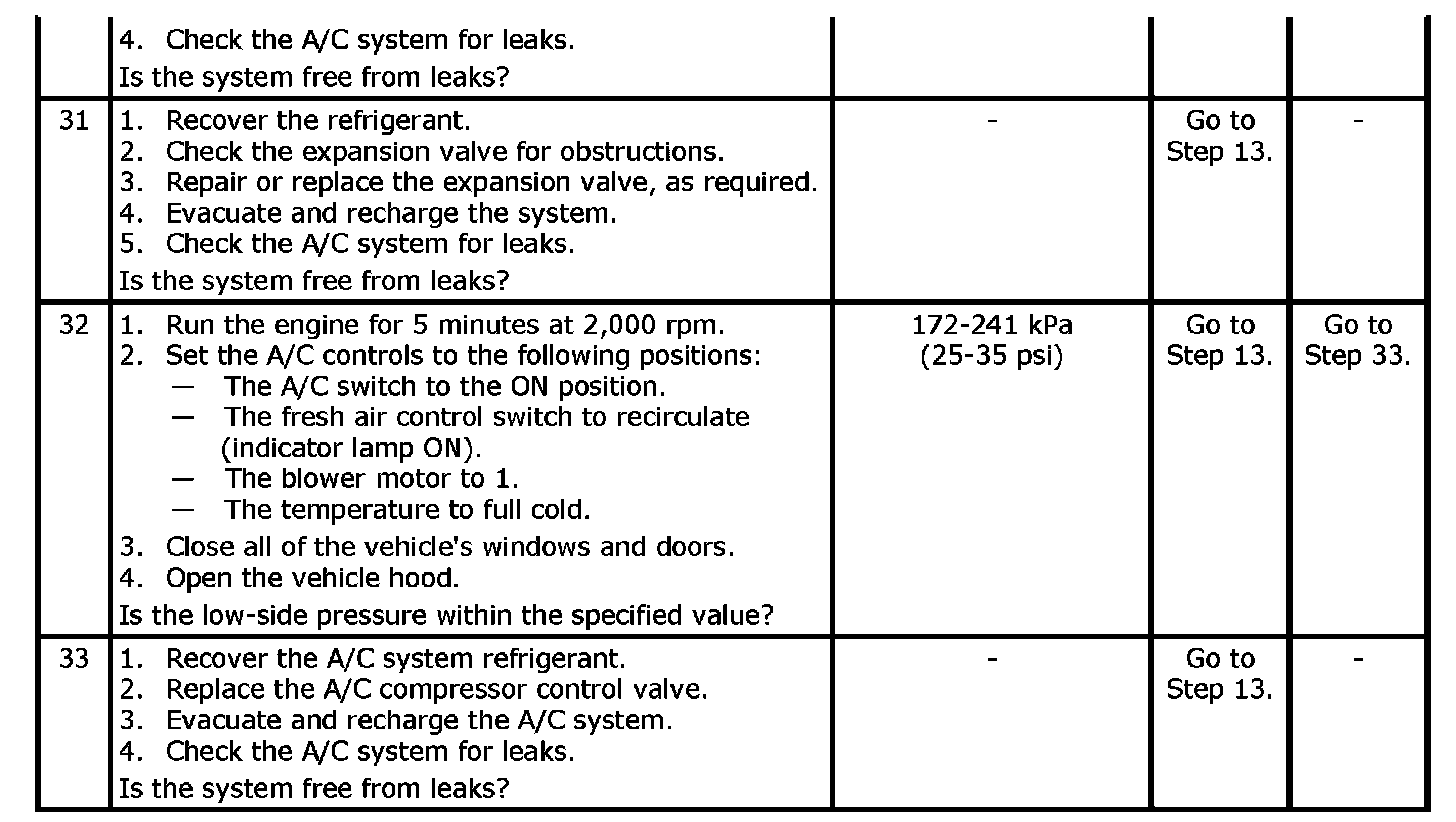

Step 31 - 33:

Test Description

The numbers below refer to steps on the diagnostic table.
13. See the Important below.

CAUTION: Perform this test under garage conditions with the air temperature at 21 - 32 °C (70 - 90 °F), and no sun load. Follow this test carefully for accurate results.

32. See the Important below.

CAUTION: Perform this test exactly as described to obtain accurate results.
