Temperature Gauge: Testing and Inspection

Temperature Gauge Inoperative, Other Gauges Ok

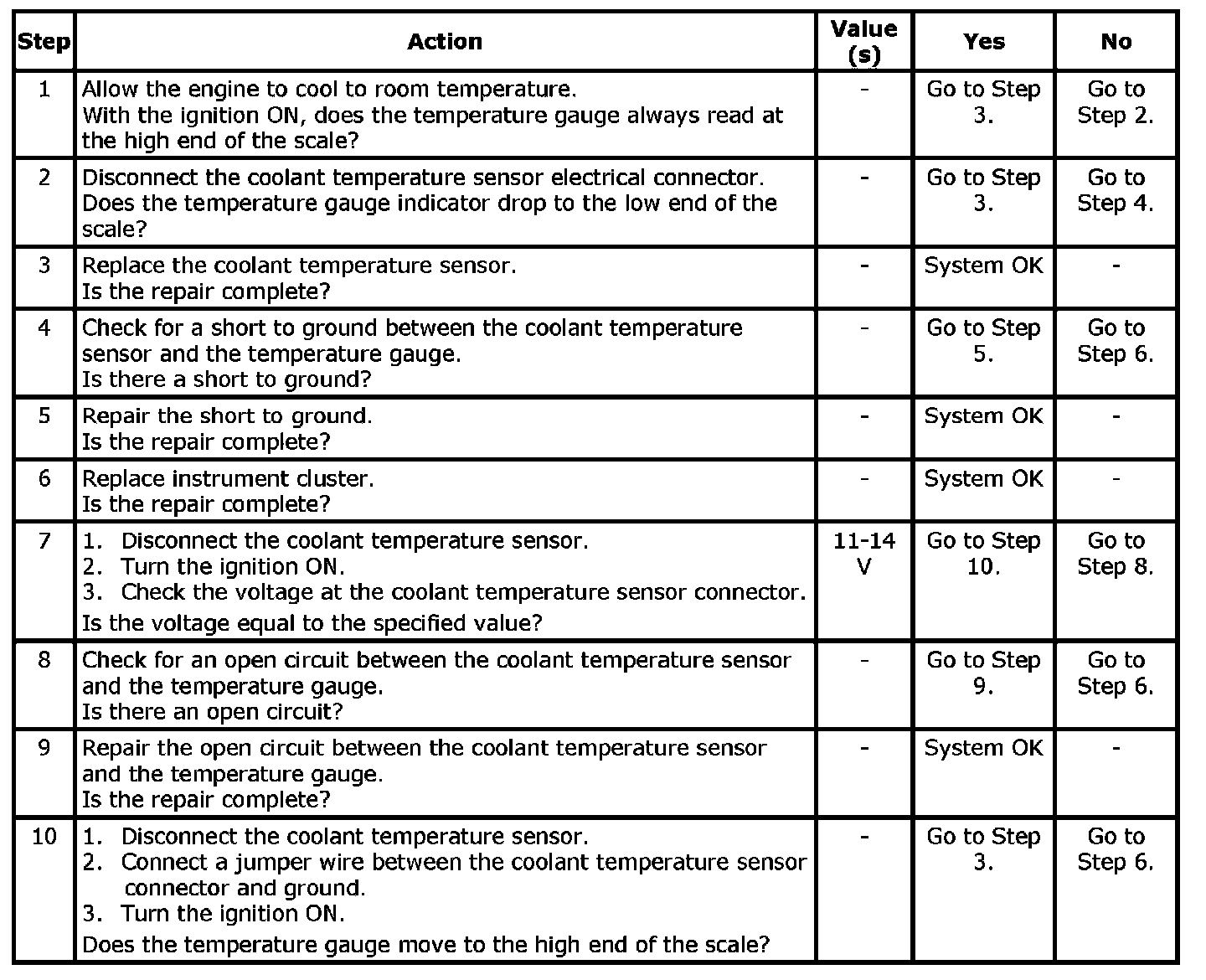

Step 1 - 10:

Test Description
The number(s) below refer to step(s) on the diagnostic table.
1. Begin the diagnostic table at Step 1 if the problem is that the temperature gauge always indicates full. Begin the diagnostic table at Step 7 if the problem is that the temperature gauge always indicates empty.
