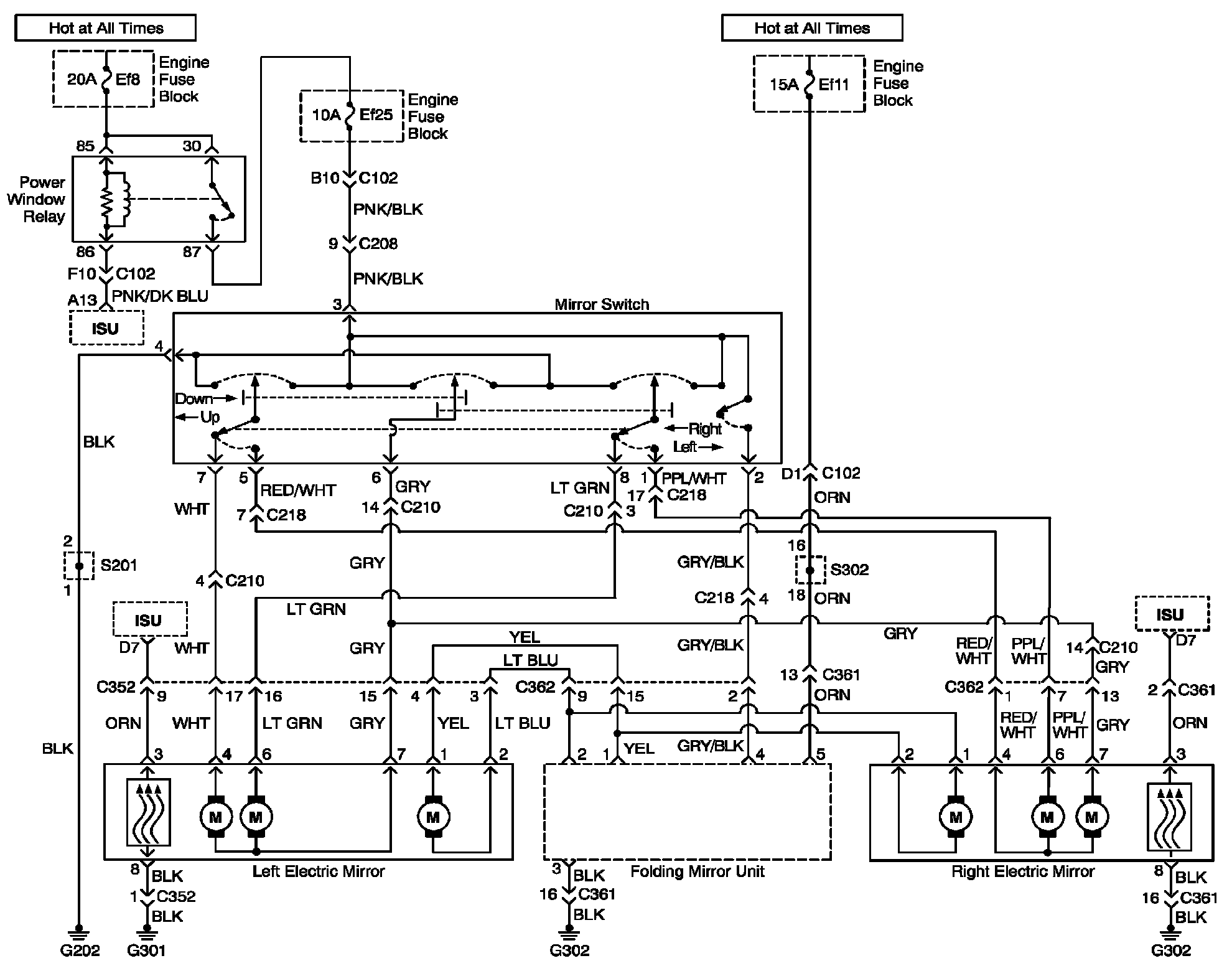

Electric Control Osrv (Outside Rear View) Mirror System Diagram
Electric Control OSRV (Outside Rear View) Mirror System Diagram:
