Antilock Brakes / Traction Control Systems





EBCM Harness Connector End View and Pin Layout Diagram

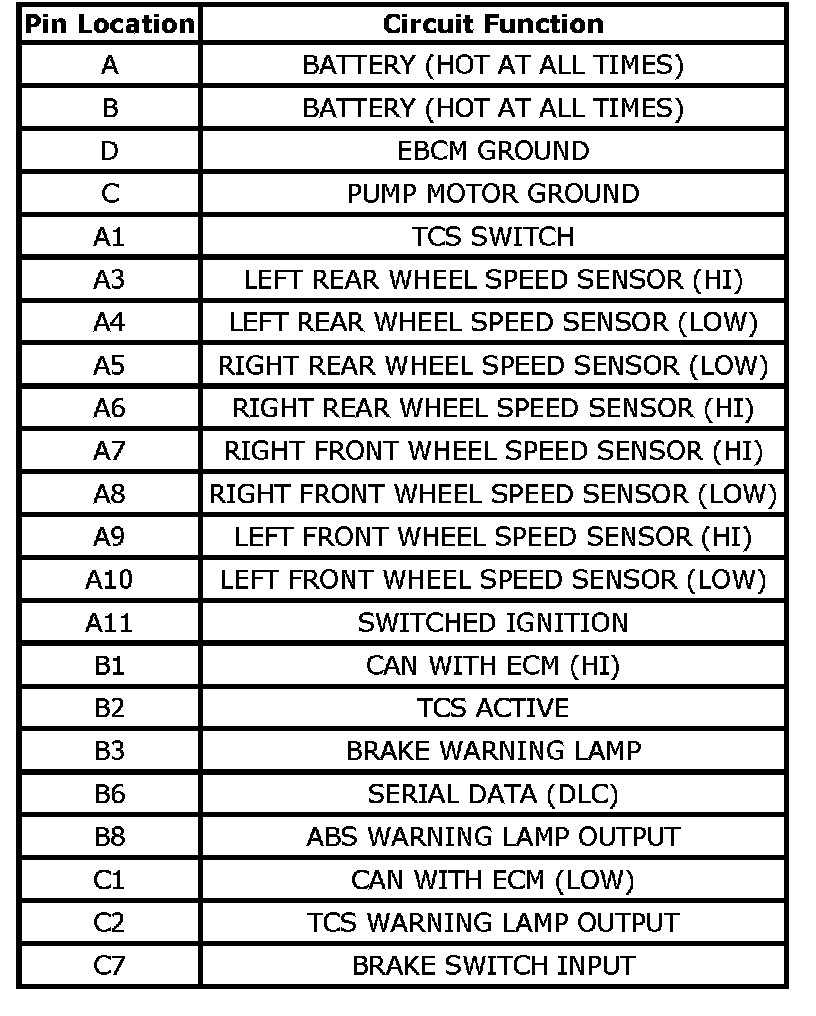

ABS (Export) Pin Assignments
