Base Braking Mode

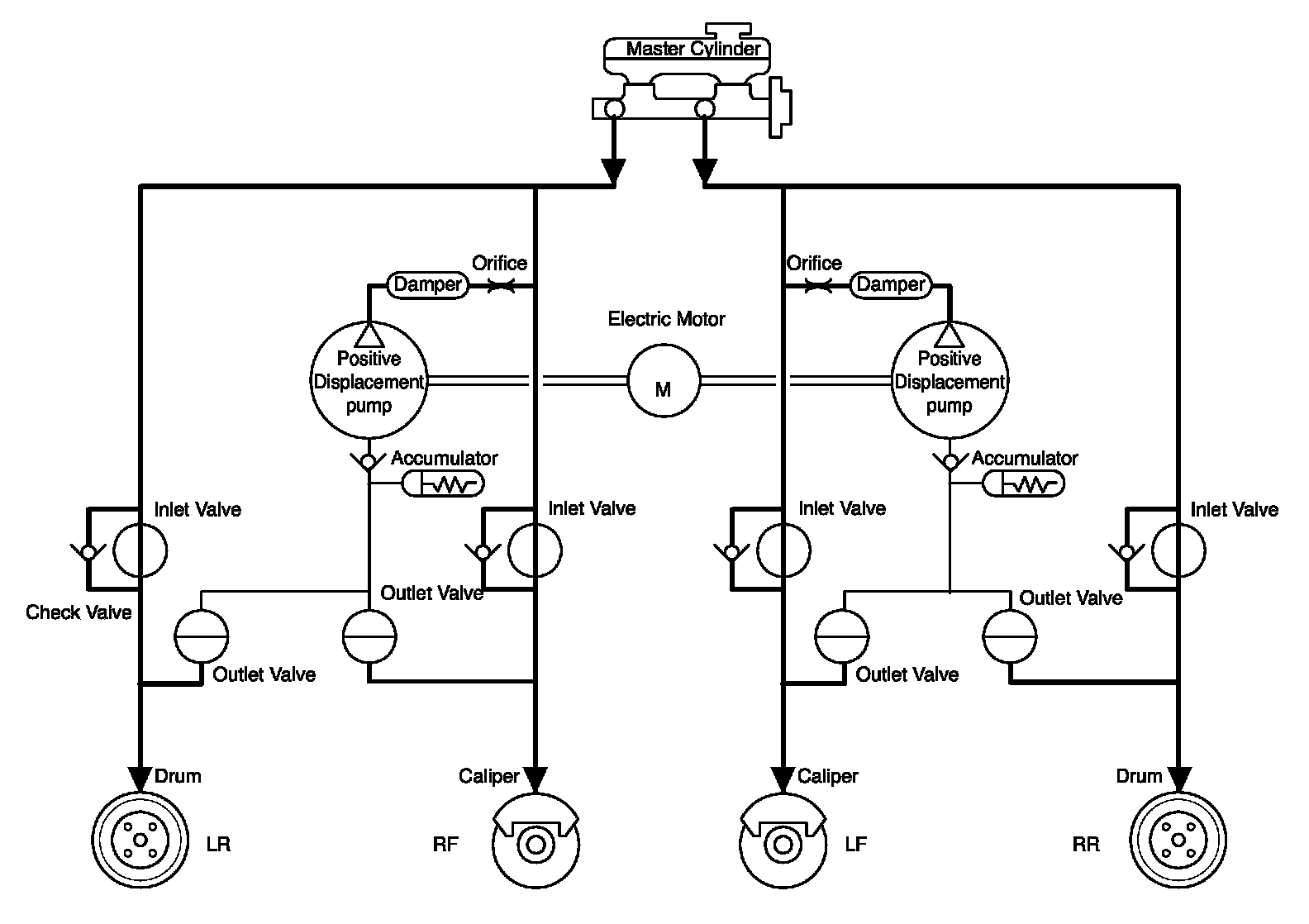

The baseline braking mode of the DBC 7 Antilock Braking System (ABS) system used in this vehicle is a diagonal split system. In this system, one master cylinder circuit supplies pressure to the right front and the left rear brakes; the other circuit supplies pressure to the left front and the right rear brakes. All valves in the hydraulic modulator are in their normal, non-energized positions as shown in the drawings found in ABS System Components.
