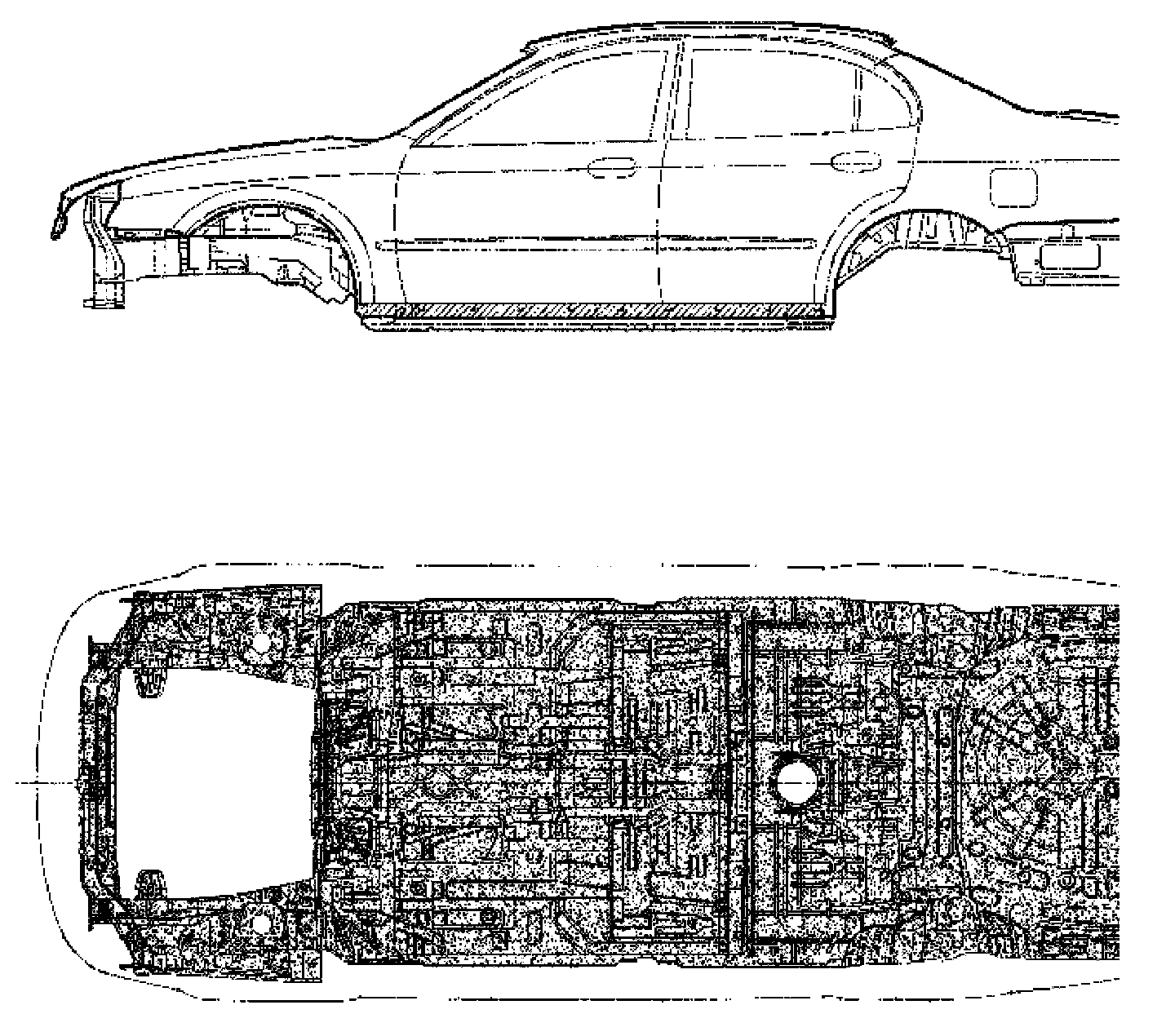

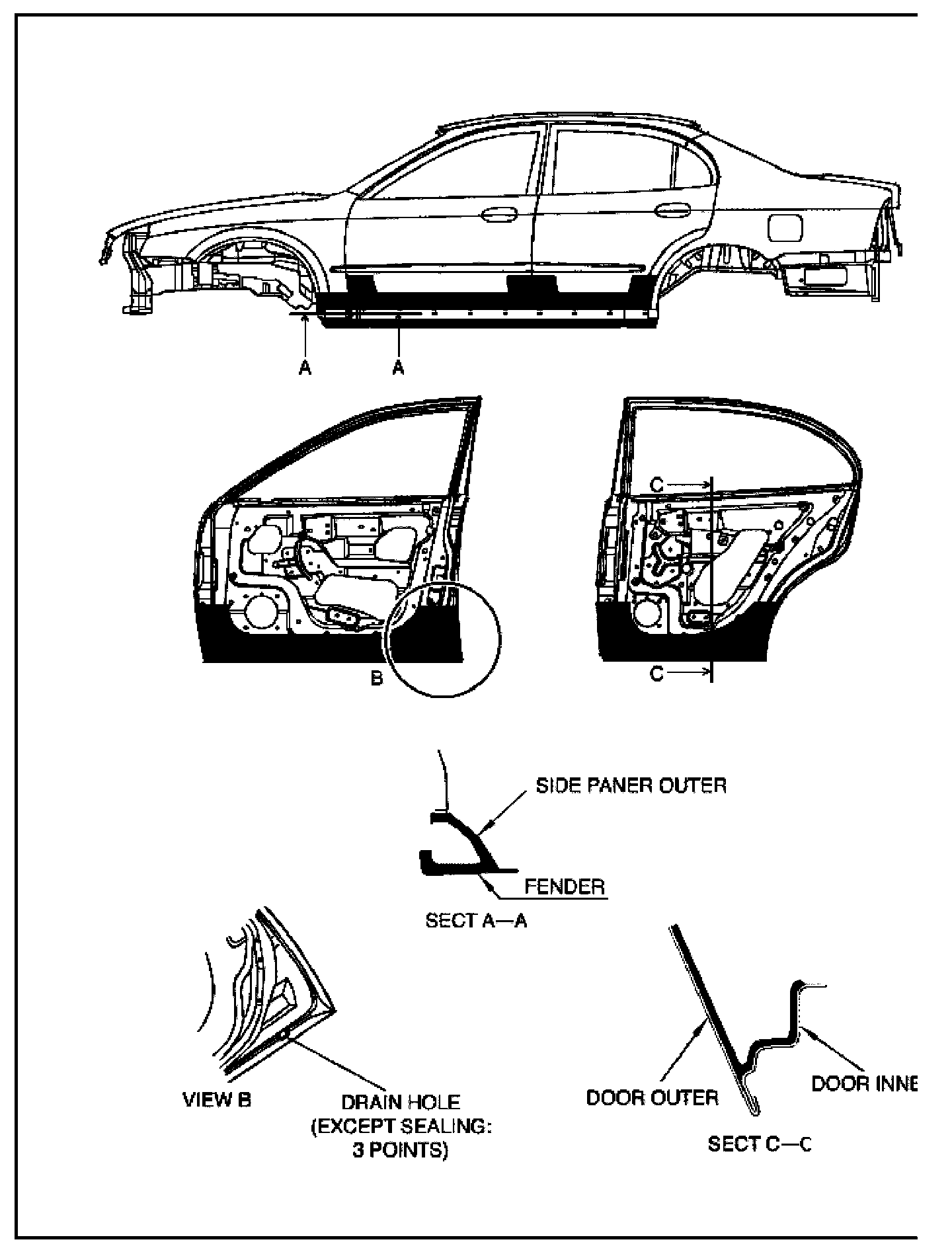

Area Covered By Anti-Rust Agents

Area Covered by Anti-Rust Agents

NOTE:
- Coating thickness: 0.05 mm
- Hatching indicated anti-rust agent coating areas.
- Follow the above figure for paint repair or refinishing.
