P0122
DTC P0122 Throttle Position Sensor Low InputWiring Diagram:
Circuit Description
The aim of the MTIA (Main Throttle Idle Actuator) is to control the idle speed with the throttle body itself. The throttle is motorized for low opening angle (0, 18 °). The characteristics of the airflow are not the same for low and high opening angles. As a matter of fact, the gradient of the mass air flow function of TPS is lower for small angles that permits to be more precise during the idle speed control. Out of idle speed the throttle is actuated mechanically by a classical bowden cable.
The throttle position sensor (TPS) provides a voltage signal that changes in relation to the throttle plate angle. The signal voltage will vary from about 4.15 ~ 4.75 V at idles to about 0.3 ~ 1.05 V at wide-open throttle. The TPS is one of the most important inputs used by the ECM for fuel control and other functions such as idle, wide open throttle, deceleration enleanment, and acceleration enrichment.
Conditions for Setting the DTC
- TPS voltage is less than 0.3 V.
Action Taken When the DTC Sets
- The Malfunction Indicator Lamp (MIL) will illuminate.
- The ECM will record operating conditions at the time the diagnostic fails. This information will be stored in the Freeze Frame and Failure Records buffers,
- A history DTC is stored.
Conditions for Clearing the MIL/DTC
- The MIL will turn off at the end of three (3) consecutive validation cycles in which the diagnostic runs without a fault.
- A history DTC will clear after 40 warm up cycles without a fault.
- DTC(s) can be cleared by using the scan tool.
Diagnostic Aids
If the DTC P0122 cannot be duplicated, the information included in the Freeze Frame data can be useful. Use the scan tool DTC information data to determine the status of the DTC. If the DTC occurs intermittently, using the DTC P0121 diagnostic table may help isolate the problem.

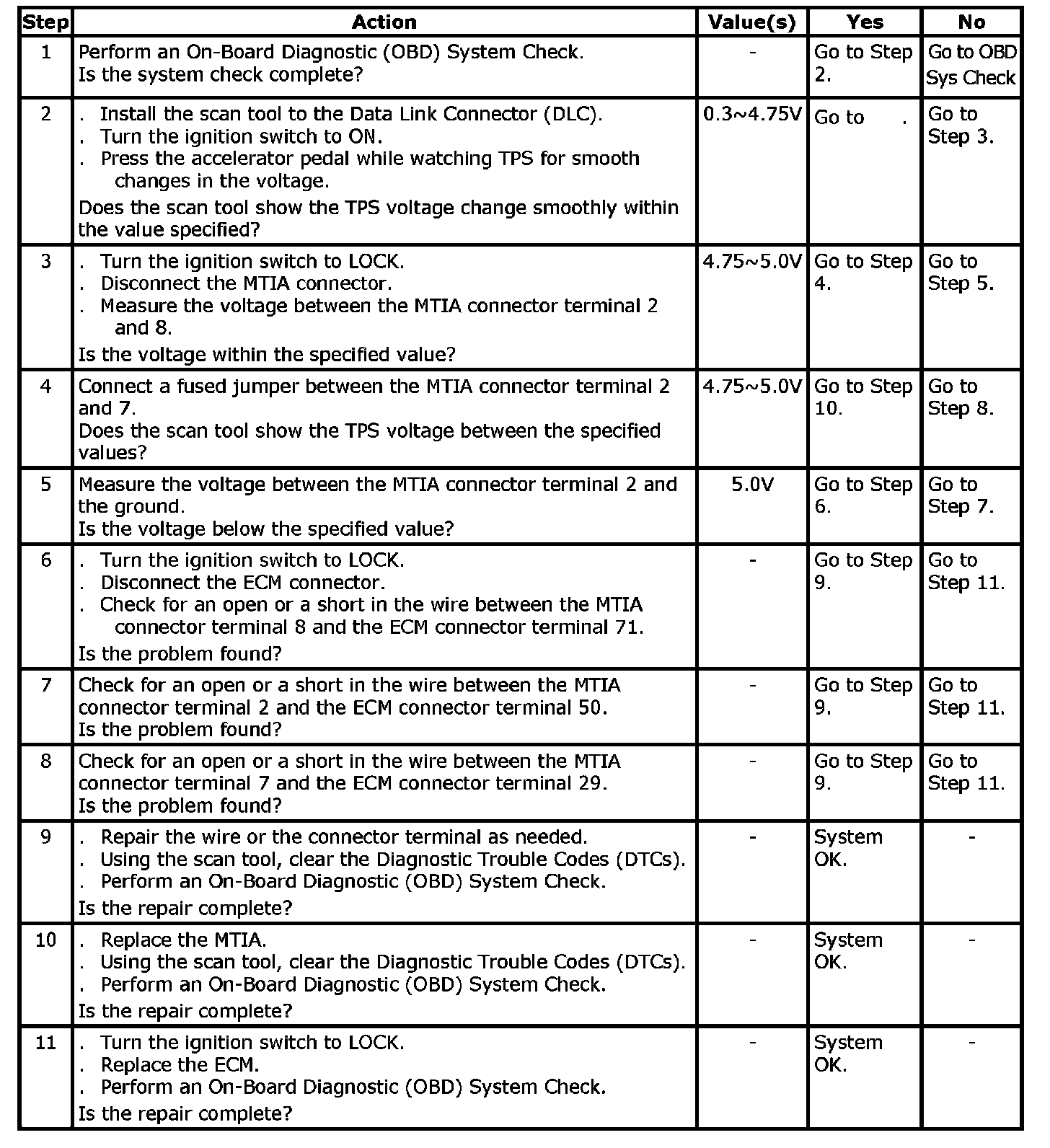

Step 1 - 11:
DTC P0122 - Throttle Position Sensor Low Input
